This Pfeiffer HiPace 80 turbo pump package deal with DN63 ISO-K inlet flange includes a Pfeiffer HiScroll 6 dry scroll roughing pump. This HiPace 80 has a pumping speed of 67 l/s and an ultimate pressure of 7.5 x 10

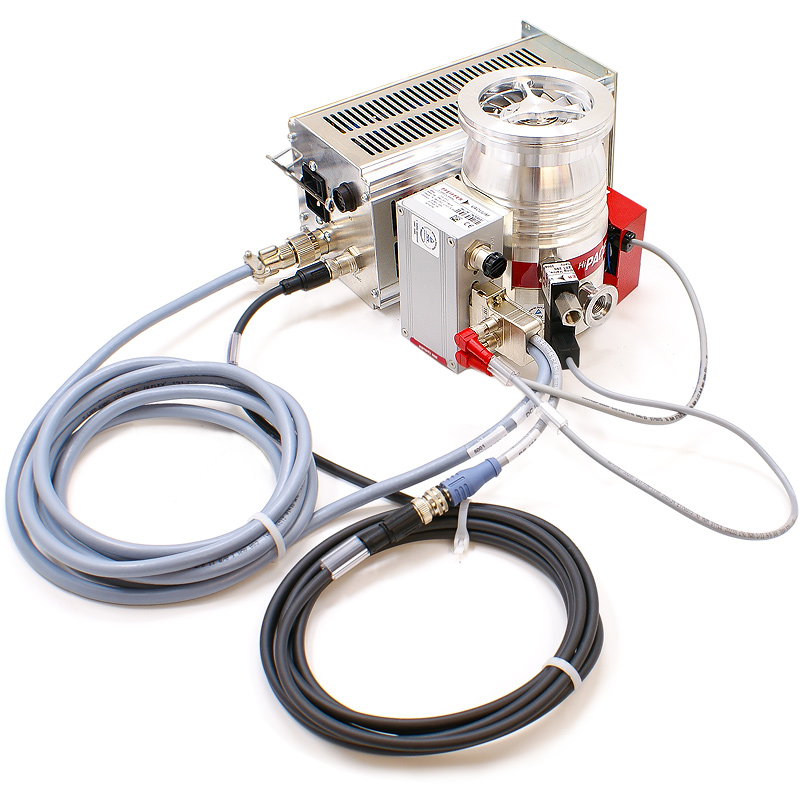

-8 Torr. The pump has an integrated TC 110 electronic pump drive unit. This package includes an OmniControl 200 display control unit and power supply with large LED display (includes AC power cable). The OmniControl 200 powers, communicates with, and controls the pump through an included 3 meter long controller connection cable (part number P103335) with incorporated M8 ports for accessories and an M12 connector for connecting the included RS485 communications cable (part number P1012287). This deal also includes a radial air cooling fan unit which plugs into one of the M8 ports on the controller connection cable and is powered by the pump. To protect the pump from debris, a splinter guard with fine mesh (0.8 mm) screen is also part of this package. This turbo pump package deal includes a roughing pump, but does not include roughing lines, vacuum chamber, pressure measurement gauges, or valves. Some upgrades might include: a water cooling kit, solenoid venting or sealing gas purge valves. All these items are available and sold separately by Ideal Vacuum.
About the HiPace 80 turbo pump with DN63 ISO-K flange

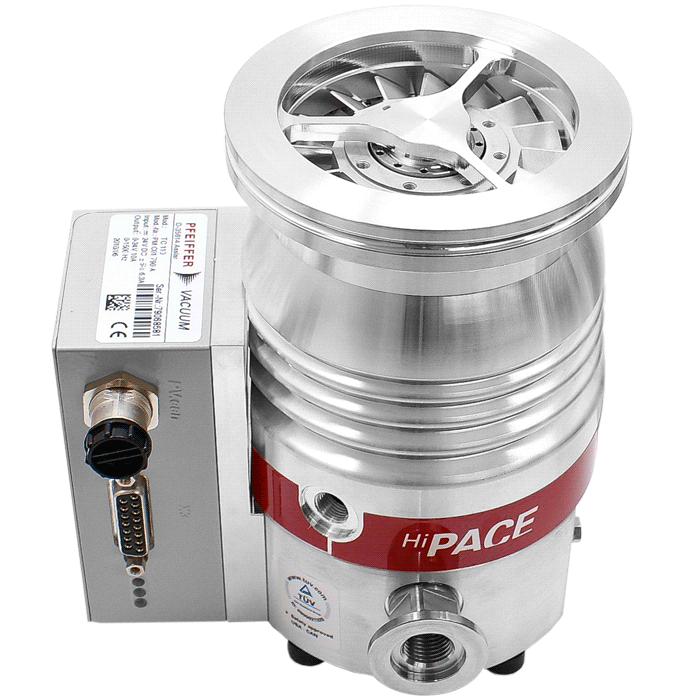

Pfeiffer HiPace 80 turbomolecular high-vacuum pumps with a DN63 ISO-K inlet flange and KF-16 outlet flange have a pumping speed of 67 liters per second (l/s) and an ultimate pressure of 7.5 x 10-8 Torr. The pump can be mounted in any orientation. 24 VDC input power at a maximum of 110 Watts is required. This Pfeiffer HiPace 80 pump comes with an integrated TC 110 drive unit side-mounted to the pump, which has a single X3 (15-pin D-Sub) connector for supplying pump power, RS485 communications and M8 accessory ports (to control either an air-cooling fan or solenoid vent valve). This HiPace 80 turbo pump with ISO-K 63 inlet and TC 110 drive unit has Pfeiffer part number: PM P03 940 A.
About the HiScroll 6 dry scroll roughing pump
This Pfeiffer HiScroll 6 dry scroll roughing/backing pump has a pumping speed of 3.6 cfm (6.1 m3/hr), and an ultimate vacuum of 1.5 x 10-2 Torr (2 x 10-2 mbar). It has KF-25 (NW25) inlet and outlet ports. Input of 100-240 VAC, 50/60 Hz, single phase power is required. Thre AC power cable is included. The HiScroll 6 pump draws 4A@120VAC (2A@240 VAC) and is extremely quiet at 48 dB(A). This HiScroll pump has internal motor protection and an integrated two-stage gas ballast which allows for pumping of condensable vapours including water, solvents, dilute acids and bases. Maximum dry air or inert gas ballast pressure is 21.7 psi (1500 hPa). The pump has an onboard inverter controller which allows the pump to be controlled either manually with easy-to-use push buttons, or remotely via RS485 when connected to a Pfeiffer DCU or OmniControl controller, or a user supplied software interface. The pump controller has a standby mode and when active reduces the speed of the pump to 50% of full speed to save wear and tear on tip seals and to increase bearing service life. This Pfeiffer HiScroll 6 dry scroll pump has part number PD S10 000.
About the OmniControl 200 drive control unit
The Pfeiffer OmniControl 200 turbo pump controller can be bench top or rack mounted and is designed to operate Pfeiffer HiPace 80 and HiPace 300H turbo pumps that have the integrated TC110 drive unit. The OmniControl 200 supplies 24 VDC at a maximum of 200 Watts to the TC 110 electronic drive unit which then powers the pump. The required connection cable between the OmniControl 200 and TC 110 is included. The connection cable not only supplies power to the pump it also has M8 ports for connecting the included radial forced air cooling fan unit, and/or a sealing gas valve. Input power to the OmniControl 200 is 115/230 VAC and a standard 115 VAC power cable is included. This OmniControl 200 turbo pump display control unit and power supply has Pfeiffer part number PE D50 100 0.
About the radial air-cooling fan unit
This Pfeiffer air cooling fan unit mounts to the side of HiPace 80 turbo pumps and provides air flow perpendicular to the pump. This air cooling fan plugs into one of the accessory ports on the TC 110-to-OmniControl cable. The air cooling unit always runs when the pump is on. This radial air cooling fan unit has Pfeiffer part number PM Z01 300 AT.
Applications for this package deal include:
- Mass Spectrometry
- Gas Chromatography Mass Spectrometry (GC/MS)
- Liquid Chromatography Mass Spectrometry (LC/MS)
- Inductively Coupled Plasma Mass Spectrometry (ICP-MS)
- Time-of-Flight Mass Spectrometry (TOF)
Vacuum in Research and Development:
- High Energy Physics
- Fusion Technology
- General UHV Research
- Synchrotron Light Sources Particle Accelerators
Nanotechnology Instruments:
- Electron Microscopy
- Scanning Electron Microscopy (SEM)
- Transmission Electron Microscopy (TEM)
- Focused Ion-beam Systems (FIB)
- Surface Analysis
- Semiconductor Manufacturing
Industrial Vacuum Processing:
- Thin Film Deposition:
- Glass coating equipment (architectural and automotive glass, flat panel displays)
- Thin film solar cells production (photo-voltaic)
- Optical data media (CD, DVD, Magneto Optical Discs)
- Magnetic storage media
- Surface treatments
- Optical coating (ophthalmic, precision opto-electronics)
- Roll/Web coating on films or foils
Device Processing:
- TV & Monitor picture tube manufacture
- Evacuation of lamps (motorway lighting, beamers)
- X-Ray tubes & electron devices
General Processes:
- Vacuum Furnaces
- Metallurgy
This package deal is stored in our inventory as a kit, made up of many separate parts, and each is listed in our
Availability of Kit Components section below. The operating instructions manuals are available in the downloads.
