Kinematic Optic Mount for 1" Diameter Optics, Standard, 2 Adjusters
Out of Stock
Arrival: 450 on 2025-02-14


These anodized aluminum optic mounts fit round optics with 1" (25.4 mm) outer diameter. The mount has full exposure on the front face and a clear aperture of 0.95" (24.1 mm) for transparent optics. The inset is 0.25" (6.4 mm) from the front face but thicker optics may be mounted if they are allowed to protrude. The optic is held in place with a soft nylon tipped set screw which can be adjusted with a 5/64" standard hex key (Allen wrench). The mount is equipped with two 1/4"-80 fine adjustment screws which tip the optic in the x and y directions for easy alignment and beam steering. The mount has two mounting holes that fit

Condition: New



Product Number: S101080



Price: $35.77



Kinematic Optic Mount for 1" Diameter Optics, Clear Edge, 2 Adjusters
In Stock: 17


These anodized aluminum optic mounts fit round optics with 1" (25.4 mm) outer diameter. The mounts leave two edges of the optic clear of support for applications where space is tight or a beam must transmit through the optic at an oblique angle. The maximum accepted optic thickness is 0.26" (6.6 mm). The optic is held in place with two 8-32 soft nylon tipped set screws which can be adjusted with a 5/64" standard hex key (Allen wrench). Very thin optics may require using longer set screws than those originally provided (0.375" length set screws are recommended to grip the thinnest of optics). The mount is equipped with two 1/4"-80 fine adjustment screws which tip the optic in the x and y directions for easy alignment and beam steering. The mount has two mounting holes that fit

Condition: New



Product Number: S101082



Price: $44.77



Kinematic Platform Mount for Optics with Flat Mounting Surface, 1.0" x 1.9" Platform, 2 Adjusters
In Stock: 21


These anodized aluminum optic mounts are equipped with a flat platform for mounting prisms, beamsplitter cubes, polarizers, diffraction gratings, or any other optic or object with a flat mounting surface. The platform has a depth of 1.0" and a width of 1.925" but can hold thicker optics if they are allowed to protrude. The platform can be removed and reattached to either leg of the optic mount using a 1/16" standard hex key (Allen wrench). The platform has ten 6-32 mounting holes along the perimeter which may be used to mount the optic directly or with Ideal Vacuum's optional adjustable optic mounting arm . The adjustable optic mounting arm holds the optic in place with a soft nylon tipped set screw which can be tightened with a 5/64" standard hex key. For permanent mounting, glue may be used instead.

Condition: New



Product Number: S101084



Price: $81.72

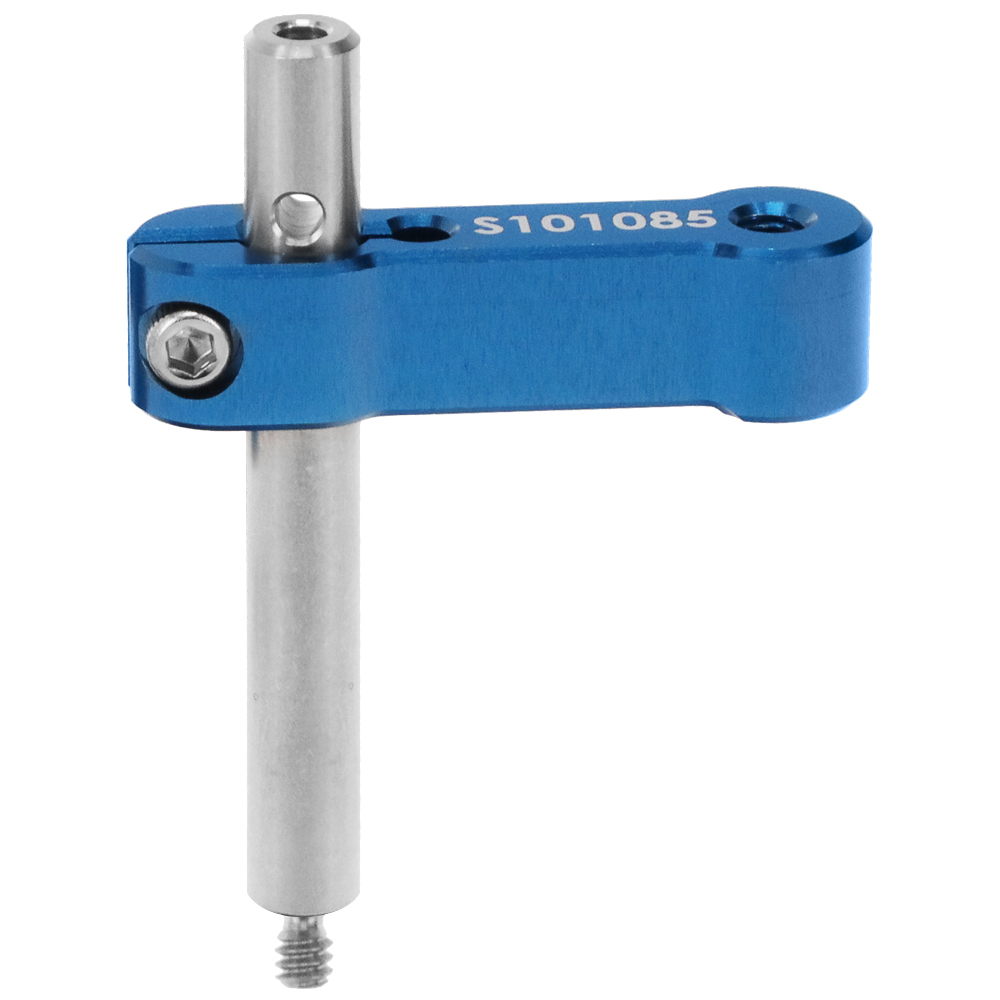

Adjustable Optic Clamping Arm Accessory for Kinematic Platform Mount, 2" Threaded Post, 6-32 Thread
In Stock: 1096


This anodized aluminum adjustable optic clamping arm on a 303 non-magnetic stainless steel post is used to hold optics up to 1-1/2" tall in place. Use it with ideal vacuums kinematic platform mount. The arm height and rotation may be adjusted by loosening the socket head cap screw clamping the arm to the post using a 3/32" standard hex key (Allen wrench). The adjustable optic mounting arm holds the optic in place with a soft nylon tipped set screw which can be tightened with a 5/64" standard hex key. Longer or shorter optical posts can be used to further customize. The 2" threaded post has a 6-32 thread that matches Ideal Vacuum's kinemetic platform mounts. The post can be further tightened by inserting a 1/16" hex key or other suitably sized lever through the cross-drilled 0.1" diameter hole in the post.

Condition: New



Product Number: S101085



Price: $21.83
