USB to RS-485 Cable Adapter with Terminal Block Changer
Out of Stock
Arrival: 17 on 2022-12-29


This cable connects to a USB 1.1 or higher port on a computer and provides a serial com port that can be configured to work with RS-485 devices. When connected to a USB 2.0 port it supports data transfer rates of up to 3 MBaud. No external power supply is needed. This adapter can plug directly into Ideal Vacuum's Heavy Duty Heater Controller to provide programming and serial control without the use of the included breakout board. However, the breakout board can be used to regain access to the relay functionality. The breakout board may also be used with other devices that do not follow the same RS-485 DB-9 pinout convention.

Condition: New



Product Number: P1012591



Price: $98.20



Ideal Spectroscopy Serrano Reference Cell Heater, 200C Max Temperature
In Stock: 1


Reference Cell Heater, 200C Max Temperature. (Heater Controller and Accessories Ideal Spectroscopy's Serrano is a compact, benchtop sized heater compatible with all of Ideal Spectroscopy's sealed wavelength reference cells. The Serrano has a maximum operating temperature of 200C, which is sufficient for most reference applications involving sodium, potassium, rubidium, cesium, water, carbon monoxide, carbon dioxide, hydrocarbons, and iodine. Raising the temperature of a reference material that is solid under normal conditions increases the number density of atoms or molecules in the gas phase. This increases the optical density of the reference, increasing signal to noise ratios and the number of lines that can be confidently used to calibrate your spectrum. Raising the temperature also changes the distribution of populated states, allowing access to calibration-quality absorption lines beginning from higher rotational or vibrational states in wavelength ranges inaccessible at normal room temperature. Some reference materials have absorption lines or peaks that move as a function of temperature. In these situations, precise, long-term temperature control is necessary to maintain calibration during the full duration of an experiment.

Condition: New



Product Number: P1012727



Price: $2,500.00



Ideal Spectroscopy Habanero Reference Cell Furnace, 900C Max Temperature
Out of Stock


Reference Cell Furnace, 900C Max Temperature. (Heater Controller and Accessories Ideal Spectroscopy's Habanero is a compact, benchtop sized furnace compatible with all of Ideal Spectroscopy's sealed wavelength reference cells. The Habanero has a maximum operating temperature of 900C, which is especially useful for high temperature references such as tellurium and the excited states of iodine. The Habanero can also operate at lower temperatures (

Condition: New



Product Number: P1012726



Price: $3,400.00



Basic Foot Kit for Ideal Spectroscopy Habanero Reference Cell Furnace, Raises Furnace 3 Inches
Out of Stock


(Furnace Not Included) This kit contains four (4) 3" optical posts (S101031) and all necessary screws to connect them to the furnace. The furnace and controller are not included and are sold separately. This kit provides your furnace with stable mounting that meets the minimum recommended 3" clearance above the working surface. Ideal Spectroscopy's Habanero is a benchtop sized furnace compatible with all of Ideal Spectroscopy's sealed wavelength reference cells. The Habanero has a maximum operating temperature of 900C, which is especially useful for high temperature references such as tellurium and the excited states of iodine. The Habanero can also operate at lower temperatures (

Condition: New



Product Number: P1012739



Price: $21.94



Ideal Vacuum Heavy Duty 20A, 2400W, Single Zone PID Plug & Play Heater Control System, 100-240 VAC, 1 Setpoint, RS485 Modbus
Out of Stock
Expecting: 42
Arrival: 42 on 2022-12-29


This Ideal Vacuum Heavy Duty, single zone 20A PID heater control system is designed to accurately measure and control the temperature of our conflat flange ThinBand nozzle heaters, Ideal Vacuum Cube heater plates, and other vacuum heater and chiller units in real time. The heater control operates at 100-240 VAC and can handle heaters up to 20A. The controller uses a type K thermocouple (sold separately). Temperature is monitored either directly on the heater control's front panel, or via RS485/Modbus (DB9 female connector) remotely by a computer. Temperature is controlled by a user programmable set point. Two set point relays, wired through the DB9 connector, are available to activate other equipment (i.e., valve solenoids) when the set point is reached. These set point relays are rated for 1A maximum. The PID has many relay configurations which can be programmed according to the user s requirements.

Condition: New



Product Number: P107361



Price: $998.00

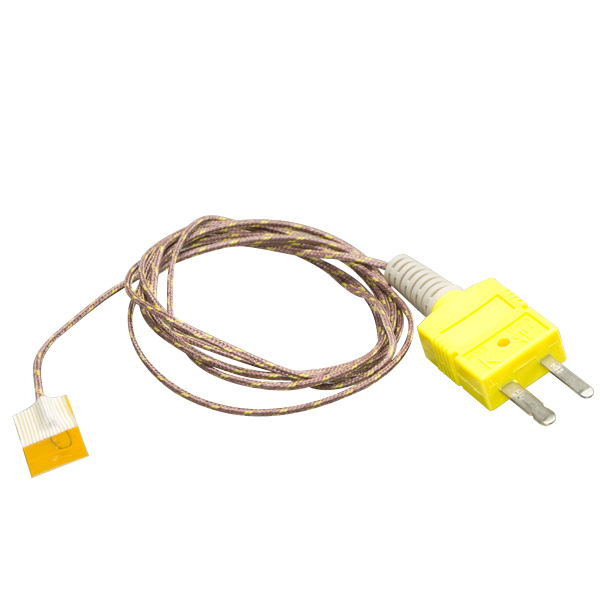

Conflat Vacuum Fittings Bakeout Surface Mount K-Type Thermocouple, Response Times < 0.15 Seconds
In Stock: 8
Expecting: 20
Arrival: 20 on 2022-12-29


Provides Temperature Feedback For Our Ideal Vacuum Heater Control System P/N P1011283 and P107361. These self-adhering mount K-Type thermocouples provide a rapid response (less than 0.15 seconds) and can be operated up to temperatures of 260C (500F) or can be cemented in place for use at temperatures up to 315C (600F). They use a polyimide and fiberglass junction insulation along with a fiberglass-insulated lead wire and require a patch length 1" by 0.375" width. It is important that the thermocouple be securely connected to the part being heated at all times so that good thermal contact in achieved during the complete bakeout cycle. Caution, if the thermocouple loses contact with the fitting, the temperature controller will measure a much lower temperature of the room air. This will result in a dangerously high run away heating of the vacuum-flanged fitting. We recommend that these thermocouples be directly adhered to the outer surface of the flange with the band nozzle heater installed over the thermocouple. This procedure will clamp the thermocouple onto the heated conflat flange.

Condition: New



Product Number: P107362



Price: $65.14



Power Cord, NEMA 5-15P to IEC 320-C19, 10 Ft., SJT, 14 AWG, 15A, 1800W, for Pumps and PID Heater Controllers.
In Stock: 22


This is a 10 ft. power cord with an IEC 320-C19 plug on one end (standard computer type power plug) and a NEMA 5-15P standard house type 120 VAC power plug on the other. The cord is 14 ga. and SJT rated (300V max). It can be used on any equipment that requires a C19 power plug, for example our PID Heater Controller, model P107361, for heaters that draw 15A or less, or on XDS35i scroll pumps.

Condition: New



Product Number: P1011963



Price: $59.80



Splitter Kit for Using Dual Heaters with Ideal Vacuum PID Plug & Play Heater Control Systems, C19 Male Plug to two C20 Female Connectors
In Stock: 3


This splitter adapter kit allows two heaters to be connected simultaneously to the Ideal Vacuum PID Plug & Play Heater Control System. For systems requiring multiple heaters for better heat distribution, or in multiple locations, this is the solution. The splitter is rated for total heater loads of 20A@120 VAC (2400W) and 16A@240 VAC (3800W). The kit includes the block splitter connector and two C19 power entry plugs (P1011284).

Condition: New



Product Number: P1011285



Price: $63.65



N-BK7 Glass Replacement Window, 1" OD, 0.197" Thickness
Out of Stock


This listing is for the sale of one (1) replacement window with the following characteristics: Material: N-BK7 Glass. Dimensions: 1" (25.4 mm) OD, 0.197" (5 mm) Thickness. 0.5 Wedge Between Transmitting Surfaces. Surface Flatness: λ/20 Over Central 10 mm, λ/10 Over Entire Clear Aperture. These windows are suitable for visible and NIR laser applications. The 0.5 wedge helps prevent unwanted etalon effects, fringe patterns, and cavity feedback. The high surface flatness prevents beam distortion. These windows are uncoated for use over their entire optical range. These windows are compatible with Ideal Vacuum's glass gas cells, Habanero reference cell furnace (up to 619 C), and Serrano reference cell heater.

Condition: New



Product Number: P1012275



Price: $153.18



Fused Silica Replacement Window, 1" OD, 0.197" Thickness
Out of Stock


This listing is for the sale of one (1) replacement window with the following characteristics: Material: Fused Silica. Dimensions: 1" (25.4 mm) OD, 0.197" (5 mm) Thickness. 0.5 Wedge Between Transmitting Surfaces. Surface Flatness: λ/20 Over Central 10 mm, λ/10 Over Entire Clear Aperture. These windows are suitable for UV, visible, and NIR laser applications. The 0.5 wedge helps prevent unwanted etalon effects, fringe patterns, and cavity feedback. The high surface flatness prevents beam distortion. These windows are uncoated for use over their entire optical range. These windows are compatible with Ideal Vacuum's glass gas cells, Habanero reference cell furnace, and Serrano reference cell heater.

Condition: New



Product Number: P1012276



Price: $170.94



Sapphire Replacement Window, 1" OD, 0.197" Thickness
Out of Stock


This listing is for the sale of one (1) replacement window with the following characteristics: Material: Sapphire (Al Dimensions: 1" (25.4 mm) OD, 0.197" (5 mm) Thickness. 0.5 Wedge Between Transmitting Surfaces. Surface Flatness: λ/2 Over Central 10 mm, λ Over Entire Clear Aperture. These windows are suitable for UV, visible, and IR laser applications. The 0.5 wedge helps prevent unwanted etalon effects, fringe patterns, and cavity feedback. These windows are uncoated for use over their entire optical range. These windows are compatible with Ideal Vacuum's glass gas cells, Habanero reference cell furnace, and Serrano reference cell heater.

Condition: New



Product Number: P1012277



Price: $179.58



Calcium Fluoride (CaF2) Replacement Window, 1" OD, 0.197" Thickness.
Out of Stock


) Replacement Window for Glass Vacuum Gas Cell, Reference Cell Heaters, and Spectroscopy Furnaces, 1" (25.4 mm) OD, 0.197" (5 mm) Thickness. This listing is for the sale of one (1) replacement window with the following characteristics: Material: Calcium Fluoride (CaF Dimensions: 1" (25.4 mm) OD, 0.197" (5 mm) Thickness. 0.5 Wedge Between Transmitting Surfaces. Surface Flatness: λ/16 Over Central 10 mm, λ/8 Over Entire Clear Aperture. These windows are suitable for UV, visible, and IR laser applications. The 0.5 wedge helps prevent unwanted etalon effects, fringe patterns, and cavity feedback. The high surface flatness prevents beam distortion. These windows are uncoated for use over their entire optical range. These windows are compatible with Ideal Vacuum's glass gas cells, Habanero reference cell furnace (up to 600-1000 C depending on humidity), and Serrano reference cell heater.

Condition: New



Product Number: P1012278



Price: $198.64
