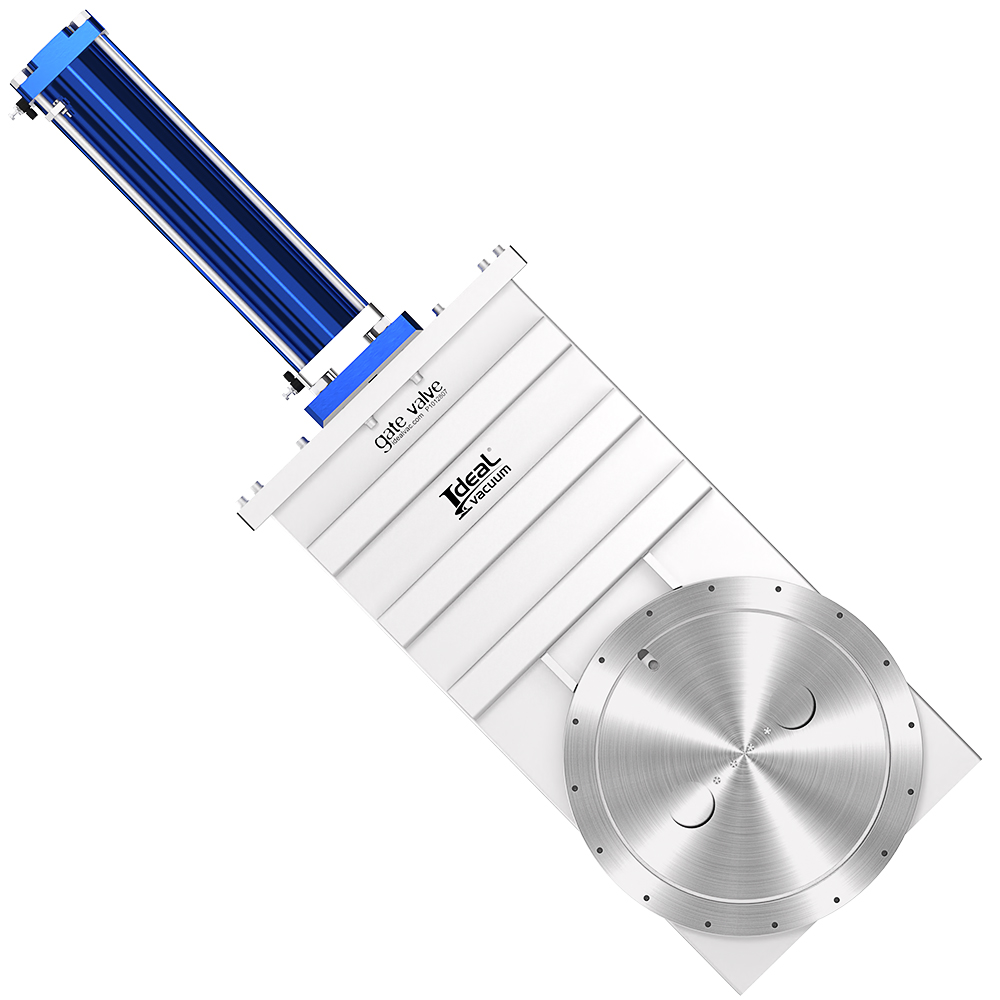

Ideal Vacuum UltraLock High Vacuum HV Pneumatic Gate Valve ISO-F DN 500 Flange, Linkage Locking, Viton Seals, 304 Stainless Steel

These Ideal Vacuum UltraLock™ pneumatically operated gate valves have an ISO-F DN 500 vacuum flange with M12 x 1.75 blind-tapped holes. They are rated for high vacuum (HV) and follow vacuum technology standards as described in DIN 28404 and ISO 1609.

These large pneumatically operated vacuum gate valves are built using a lever linkage locking mechanism which keeps the valve locked closed during loss of power or air pressure. These HV gate valves have a typical life of 20,000 cycles before needing service and are made with corrosion resistant 304 stainless-steel valve bodies and aluminum gates to reduce weight. These pneumatic gate valves include open and closed reed sensor switches which are mounted on the valve’s pneumatic cylinder. These switches can be used to activate indicator lights or used to control a more complex or automated vacuum protection system.

UHV vs HV Versions:
Our Conflat CF flanged gate valves are UHV rated. The bellows are welded to the bonnet plate, and oxygen-free, high-thermal conductivity (OFHC) copper sealing gaskets and flange knife-edges form the required metal-to-metal seal between the bonnet plate and valve body. Our Conflat UHV UltraLock valves have a low leak rate of < 3.75 x 10^-10 Torr l/sec and are bakeable up to 200 °C with the gate open (150°C with the gate closed).

Our KF and ISO-F flanged gate valves use Viton O-rings for the bellows and bonnet plate seals and are therefore limited to high-vacuum (HV) applications with ultimate pressures down to 3x10^-8 Torr. KF and ISO-F series UltraLock valves have a leak rate of 1.5 x 10^-9 Torr l/sec and are bakeable to 150 °C (with the valve open or closed).

Solenoid Valves:
We offer solenoid kits for our pneumatic valves in voltages of 12 VDC, 24 VDC, and 120 VAC. Solenoid kits are sold separately and include the solenoid valve, mounting bracket with fasteners used to attach the solenoid to the gate valve's bonnet flange, and flexible 1/4” OD airlines to connect between the push-to-connect fittings on the gate valve’s pneumatic cylinder and the solenoid valve.

Specifications:
Our Ideal Vacuum UltraLock gate valves are designed for dependable High and Ultra- High Vacuum (UHV) applications and are often used in combination with cryo, turbo, and ion high vacuum pumps. Available sizes include Conflat CF 2.75, 4.5, 6, 8, 10, and 12 inch sizes; ISO-F DN -63, -100, -160, -200, -250, -320, -400, -500, and -630 sizes; and quick flanged sizes KF-40 and KF-50.

Please see the downloads for more information.
