Condition:
  New
Part Number:
  P107620
Warranty:
  Granville Phillips Warranty

Available Now:
23  



$1,534.85


Print Version

MKS Granville Phillips 475 Convectron Gauge Kit, with 275 Convectron Gauge 1/8 MNPT, NO Set Points


MKS Granville Phillips 475 Convectron Gauge Kit, 1/8 MNPT. convectron sensor gauge, NO Set Points, 115AC PS, 10 ft. sensor cable.

This is a complete plug and play vacuum measurement package kit. It contains the MKS Granville Phillips Series 475 Convectron Controller with its easy to use larger and brighter, highly visible Vacuum Florescent Display (VFD) and intuitive front panel controls that allow gauge calibration and adjustment of vacuum measurement parameters without the need for special tools. This Series 475 Convectron Controller provides a range of control I/O and several new features such as self diagnostics, integrated Convectron Gauge simulation, built-in gas curves and is RoHS/CE compliant. This provides ease of use, better system control, and increased productivity.

In total this kit includes an MKS Granville Phillips 475 pressure gauge controller, 1/8 inch DIN, panel mount with digital display configured to display measurements in Torr, NO set points. The kits also includes the 10 ft. sensor cable, 1-Phase 115 VAC power supply and MKS 275 gauge sensor with 1/8 MNPT. vacuum connection. These MKS Granville Phillips 475 pressure gauge kits can measure pressure from Atmosphere to 1x10-4 Torr. This is a complete pressure gauge kit to connect and measure pressure on a 1/8 MNPT vacuum fitting.


Press ESC to Close

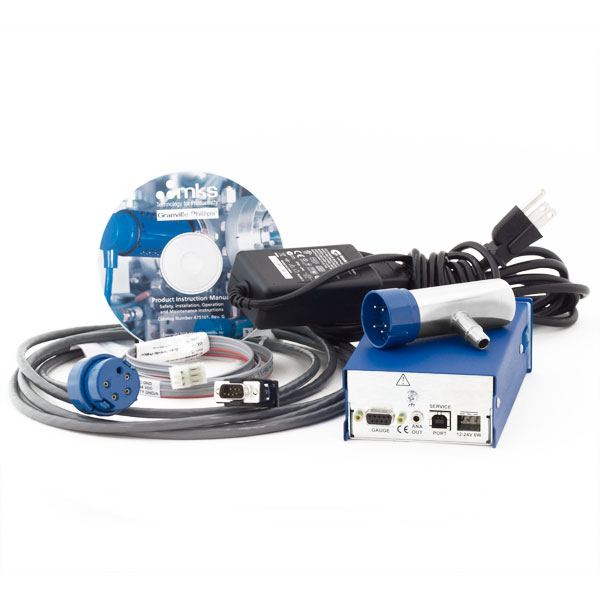

INCLUDED IN THE 475 CONVECTRON GAUGE KIT
    1 - Granville Phillips 475 Convectron Vacuum Gauge Controller, NO Set Points, Torr Read Out
    1 - Granville Phillips 475 Convectron Gauge Controller Power Supply 115VAC
    1 - MKS Granville Phillips 275 Convectron Gauge Pressure Sensor 1/8 MNPT
    1 - Granville Phillips 475 Convectron Gauge Controller 10ft. Sensor Cable



Availability Of Kit Components

Kit: P107620 - MKS Granville Phillips 475 Convectron Gauge Kit, with 275 Convectron Gauge 1/8 MNPT, NO Set Points
Component
Desc.
Req'd
Avail
Non-Standard
No Component Description Available On Website
1
23
MKS Granville Phillips 275 Convectron Gauge Vacuum Pressure Measurement Sensor, 1/8 MNPT. PN: 275071
1
190
MKS Granville Phillips 475 Convectron Vacuum Pressure Gauge Controller, no set points. PN: 475001-00-T
1
42
MKS Granville Phillips 475 Convectron Gauge Controller Signal Cable 3m (10 ft.) PN: 475012-10
1
41
PDF Logo Granville Phillips 475 Convectron Gauge Controllers.pdf

PDF Logo Granville Phillips 475 Convectron Gauge Controller and 275 Tube Sensor Brochure

PDF Logo Granville Phillips 475 Convectron Gauge Controller Spec Sheet.pdf

PDF Logo MKS 275 Convectron Vacuum Gauges Data Sheet.pdf

PDF Logo MKS Granville Phillips Vacuum Measurement Products_Brochure.pdf
