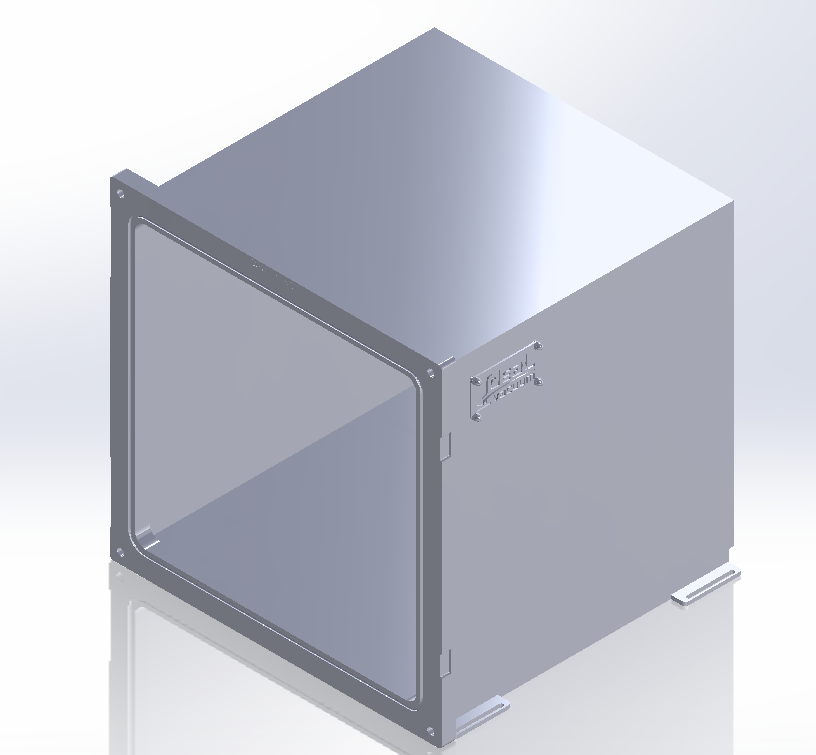

Custom Vacuum Chambers Welded Stainless Steel 20 in, Ready to Customize, With User Selectable Latching Door and Options.
| Availability Disclaimer: This chamber is fabricated upon ordering. Chambers are made complete within 8 weeks of ordering. Expediting options are offered for rush orders if necessary. Call for more details.
|
|
Fabricated and assembled entirely in our manufacturing facility, these robust, inexpensive vacuum chambers are a highly efficient way for your R&D lab to get into high vacuum applications. With an internal dimension of at least 20 x 20 x 20 inches, all of these cubic chambers are made with corrosion resistant 304 stainless steel plate . These leak-tested chambers are internally TIG welded, and include an O-ring seal, sturdy hinged door, and easy open latch for quick access. Your choice of door includes an inexpensive aluminum door or a stainless steel door for chemical resistance, and aluminum or stainless steel door with a built-in viewing port. For custom options please call (505) 872-0037.
Specifications
- Interior Chamber Size: Approximately 20X20X20 inches (approx. 51X51X51cm)
- Ports Include: 1 x CF 6 in, 2 x CF 3.375 in, 2 x CF 2.75 in, 2 x CF 1.33 in
- Chamber Material: 304 Stainless Steel
- Weight: 280 lbs (127 kg) w/o door
- Volume: 4.8 cu. ft. (137.3 liters)
- Hinged Front Door: Stainless Steel
- Ultimate Pressure: 1x10-7 Torr (Down to 3x10-8 Torr with proper conditioning)
- Leak Tested: (Helium) to 1x10-8 atm cc/sec
- Operating Temperature Range (Viton Seal): 5° to 302°F (-15° to 150°C)
- Lead Time: One to Two Weeks (7-14 days)
- Call for additional porting options
- Call for additional coating options
- Call for expanded temperature range
