Edwards Exhaust Adapter, NW25 to 3/4 inch MBSP, Edwards E2M2/5/8/18, XDS10/5, PN C10501014

NEW NW25 KF25 to 3/4 inch BSP male for Exhausts on Edwards Vacuum Pumps (see below)

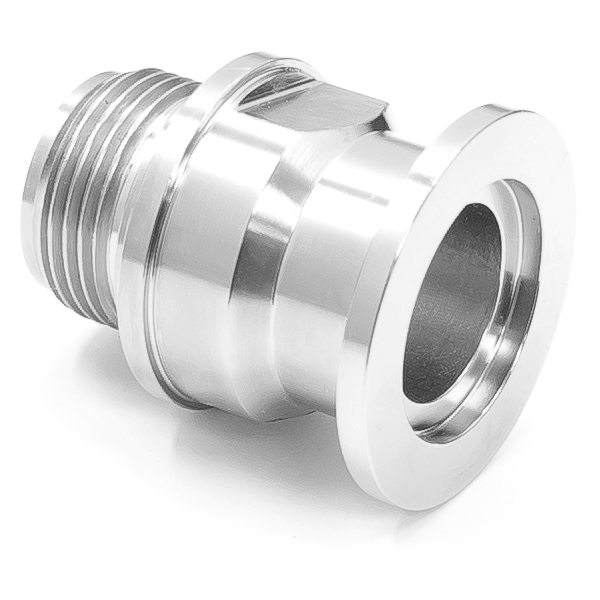

This is a KF25 to BSP male 3/4 inch stainless steel, exhuast outlet for the following Edwards Pumps See Below. To ensure correct BSP sizing, refer to the table below as well.

Fit Edwards Vacuum Pumps Models:

Inlet and Outlet: Scroll Pump XDS5, XDS10

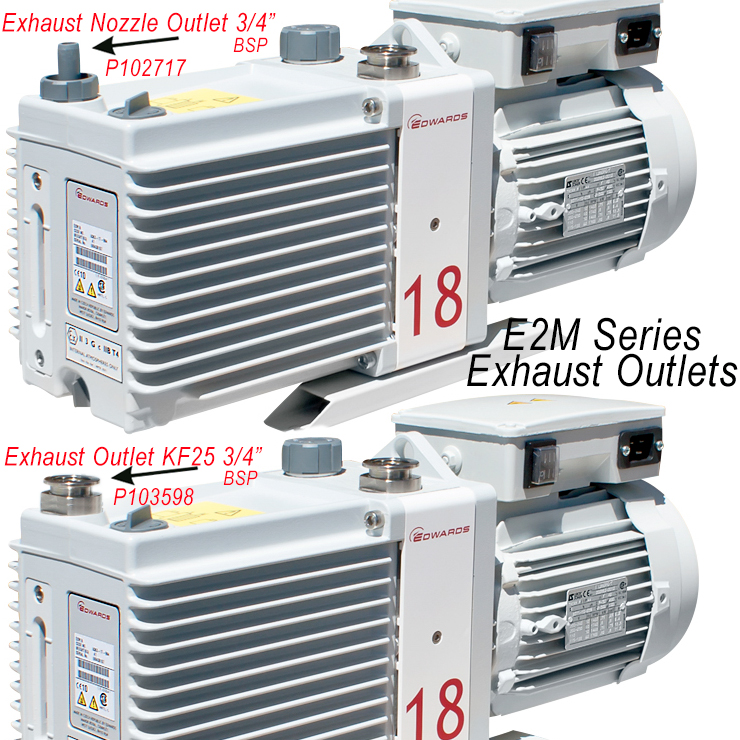

Oil Mist Exhaust: Rotary Vane E2M2, E2M5, E2M8, E1M18, E2M18, E2M28
Adapter: NW25 to 3/4 inch BSP male
Material: Stainless Steel
Edwards PN: C10501014

Press ESC to Close

BSP Conversion Table
Metric Value	BSP Value	Actual OD (mm)	Actual OD (inches)
6mm	1/8"	9.728	0.383
8mm	1/4"	13.157	0.518
10mm	3/8"	16.662	0.656
15mm	1/2"	20.995	0.825
20mm	3/4"	26.441	1.041
25mm	1"	33.249	1.039
32mm	1 1/4"	41.91	1.65
40mm	1 1/2"	47.803	1.882
50mm	2"	59.614	2.347
65mm	2 1/2"	75.184	2.96
75mm or 80mm	3"	87.884	3.46
100mm	4"	113.03	4.45
125mm	5"	138.43	5.45
150mm	6"	163.83	6.45
