NEW Edwards T-Station Turbo Pumping Station 300 With XDD1 Diaphragm Pump, nEXT300D Turbo and CF100 CF6 Inlet (110VAC).

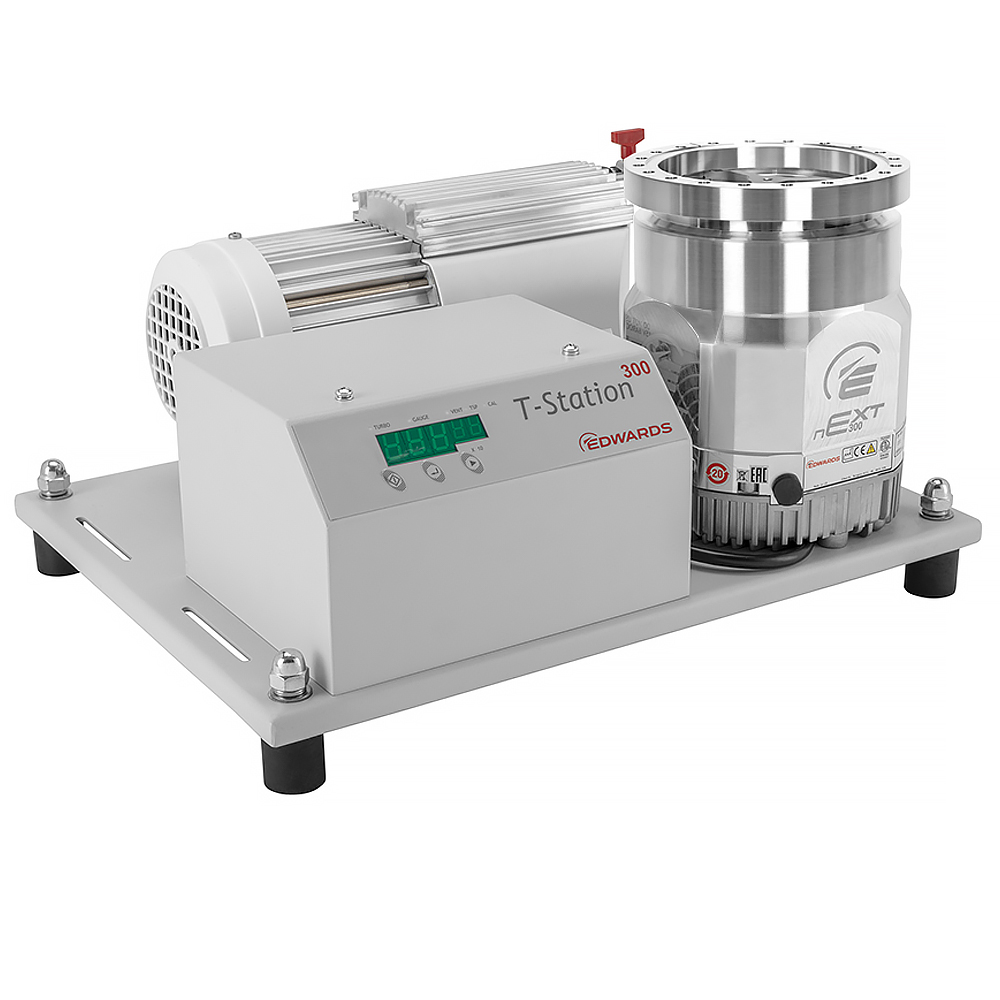

The T-Station 300 is Edwards new entry level turbopumping system. It combines the Edwards nEXT300D turbomolecular pump, with a simple controller and the XDD1 diaphragm roughing pump with a CF100 CF6 inlet. The T-Station 300 is supplied fully assembled and ready to go for quick and easy operation.
T-Station 300 is a low cost, compact
turbomolecular pumping station that seamlessly
combines the nEXT300D turbomolecular pump
with a dry diaphragm
backing pump, and a simple controller, providing
pumping speeds of 300 l/s.
The T-Station 300 comes with an integrated Turbo
and Active Gauge controller which enables single
button start/stop of the system. This is combined
with the ability to control one of our active
gauges, vent valve control and delayed start of the
turbomolecular pump to either time or pressure
if a gauge is fitted. This making the T-Station 300 ideal
for general laboratory needs.
NOTE: For Specifications and Accessories to your T-Station see .pdf's to the side at Downloads.
