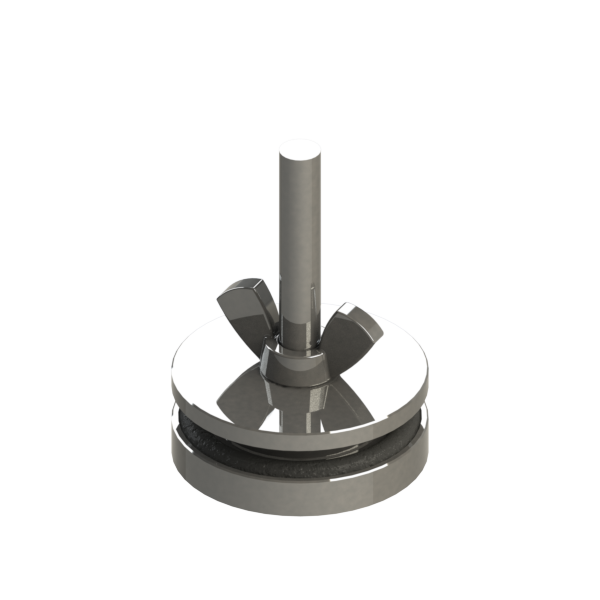

Stainless Steel Hole Plug to Fit 1 inch Diameter Bulkhead Feedthrough Port up to 1 in. Thick, with Viton O-Ring

Stainless Steel Hole Plug to Fit 1 inch Diameter Bulkhead Feedthrough Port up to 1 in. Thick, with Viton O-Ring.

These 304L stainless steel feedthrough hole plugs are designed to seal 1 inch diameter bulkhead ports on flat plates or chambers with walls up to 1.0" thick. These hole plugs have Viton O-ring seals and are rated for high vacuum in the 10^-8 Torr range.

Dimensions:

A = 0.99"
B = 1.5"
C= .07"
D = 0.375"
E = 1.0" Max.

Press ESC to Close

RoHS Compliance Download

P105372.sldprt

P105372.step

Ideal Spectroscopy offers 3D CAD models in Solidworks (SLDPRT), STP, & STEP formats. For those without CAD software a free trial 3D model viewer with measurement capabilities can be downloaded here:

eDrawings Viewer For Windows
eDrawings Viewer For MAC.
