Condition:
  New
Part Number:
  P107292
Warranty:
  Against Product Defect

Available Now:
1293  



$23.27


Print Version

Ideal Vacuum Cube Replacement Barrel Type Coupling Draw Bolt


Ideal Vacuum Cube Replacement Barrel Type Coupling Draw Bolt.

This Ideal Vacuum Cube barrel type coupling draw bolt is used to join together the frames of two separate vacuum cubes to form a larger vacuum chamber configuration. A quantity of at least four draw bolts are needed to join two 6 x 6 x 6" Cubes. Larger Cube sizes require more draw bolts.

This is a quantity of 1 replacement draw bolt with nut and made of 304L stainless steel. Use it as a replacement for a lost or damaged one.



Press ESC to Close


The Ideal Vacuum CubeTM is a unique, modular, light weight, chamber system, capable of high vacuum to 1 x 10-7 Torr. The Cube system is conceived to enable creativity and design flexibility in vacuum chamber system construction and limited only by your imagination.

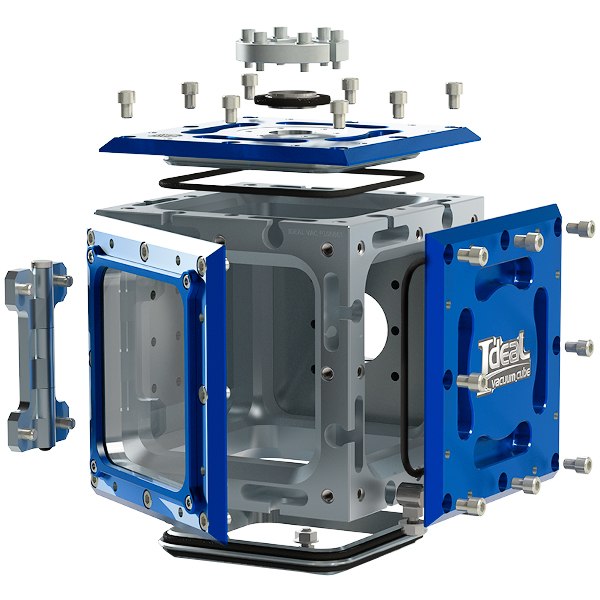

The core of an Ideal Vacuum Cube modular chamber system is the Cube frame, machined from a single block of 6061-T6 aluminum alloy and reinforced with stainless steel threaded inserts. Many basic frame configurations are available and multiple Cubes can be joined together to create a virtually unlimited variety of long or odd-shaped chamber shapes. The Cube’s light weight construction makes it easy to transport around the lab or mounted to an optical table.

Cube plates are mounted with screws to each side of the Cube frame and sealed using our patented Taper-SealTM design, which provides protection of vacuum sealing surfaces and O-rings from damage or contamination.


An extensive number of interchangeable Cube plates are available and single or multiple plates can be swapped easily when chamber reconfiguration is needed. Plates are available with single and multiple port KF, CF, and ISO flanged plates for connections and feedthroughs, viewing windows and doors, and a variety of specialty plates for thermal and optical experiments. Most plates include an optical breadboard with 1/4-20 mounting threads spaced on a 1” x 1” standard grid on the plate’s vacuum side for fastening hardware and test objects. Plates may also have mounting threads on the exterior side for mounting accessories. Plates are typically machined from aluminum and receive a blue powder-coated outside finish which makes them both attractive and durable.

The modular nature of the Ideal Vacuum Cube allows the designer to configure a chamber to their unique requirements and reconfigure it at any time – all without the cost, weight, time, and limitations of an application-specific welded chamber.

PDF Logo IVP Cube Coupling Kit User Manual.pdf

PDF Logo IVP Cube Plate Installation Manual.pdf

PDF Logo IVP Cube 6x6x6 User Manual.pdf

PDF Logo IVP Cube Brochure 2019 v2 LG.pdf

Ideal Spectroscopy offers 3D CAD models in Solidworks (SLDPRT), STP, & STEP formats. For those without CAD software a free trial 3D model viewer with measurement capabilities can be downloaded here:

E-drawing LogoeDrawings Viewer For Windows
E-drawing LogoeDrawings Viewer For MAC.
