Condition:
  New
Part Number:
  P1010031
Warranty:
  Full Manufacturer's Warranty
Out of Stock  
Expecting:   11
Anticipated Arrival:  11 on 2024-04-28



$238.73


Regular Price: $298.41

On Sale Flyer
Print Version

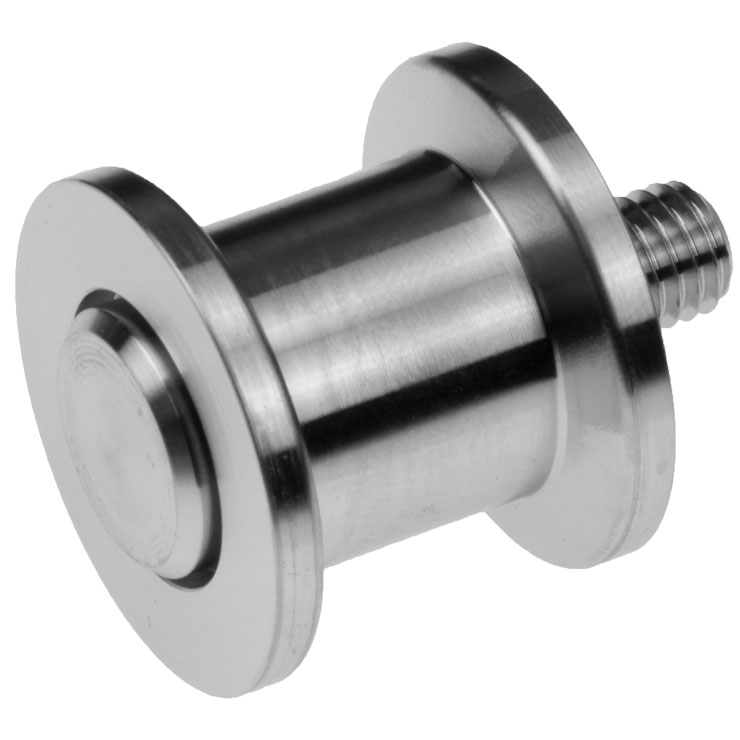

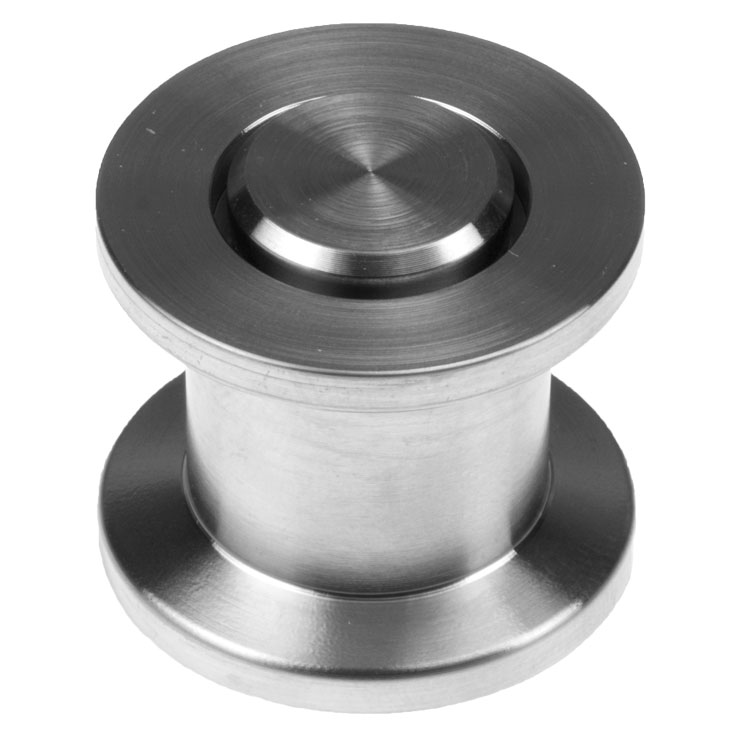

Pfeiffer Pressure Relief Valve, KF16, Stainless Steel, Opens w/Approx 300 Torr Difference


Pfeiffer Pressure Relief Valve, KF16, Stainless Steel, Opens w/Approx 300 Torr Difference
PN: 120VUS016

This Pfeiffer Stainless Steel Pressure Relief Valve protects vacuum systems from over pressure. It has KF-16 fittings on both the inlet and outlet ends. An exhaust hose can be attached to the KF16 connection at the outlet side.

Measuring just 30mm in diameter and 25mm in height, this compact Pfeiffer Pressure Relief Valve has a leak rate of less than 1 x 10-8 mbar l/s, a temperature range from 41-140°F (5-60° C), and opens with a pressure differential of approximately 300 Torr. It is intended to be used for vacuum chambers only.


Press ESC to Close


PDF Logo Pfeiffer Pressure Relief Valve, DN16 ISO-KF Data Sheet.pdf

Ideal Spectroscopy offers 3D CAD models in Solidworks (SLDPRT), STP, & STEP formats. For those without CAD software a free trial 3D model viewer with measurement capabilities can be downloaded here:

E-drawing LogoeDrawings Viewer For Windows
E-drawing LogoeDrawings Viewer For MAC.
