NEW Edwards ITO800 Inlet Catchpot, ISO100, Edwards Part Number A441-04-000
NEW Edwards ITO800 Inlet Catchpot, ISO100, (Edwards Part Number A441-04-000)

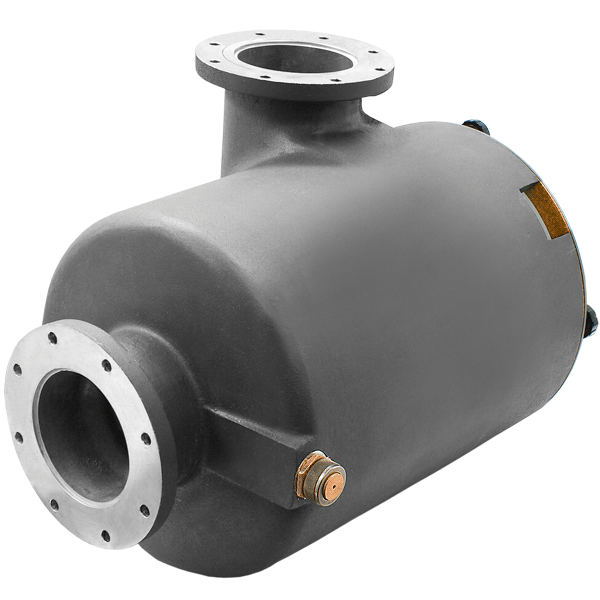

This NEW ITO800 Inlet Catchpot is used on vacuum processes where large quantities of vapour are produced. The catchpot
traps liquid that would otherwise condense in the pipelines and drain towards the pump. The catchpot is also suitable for use on vacuum processes where froth or spray can go into the pump. The mixture of gas and liquid droplets enters the inlet of the catchpot, then the liquid collects in the base of the body and the gas passes through the outlet into the pump.
You can see the level of the trapped liquid through the sight-glass on the top of the catchpot. You can drain the trapped liquid from the catchpot through the drain-plug. For complete specifications, download instruction manual.....See below (AVAILABLE DOWNLOADS)
Edwards ITO800 Inlet Catchpot Fit & Size:
Fits Edwards E1M175, E2M175, E1M275, E2M275 Rotary Vane Oil Sealed Vacuum Pumps.
ISO100 KF100 inlet and outlet flange
Weight Mass: 19.5 kg, 43 lb.
Capacity: 9.5 liter, 10 qt.
Supplied with 100mm Co-Seal, bolts and washers
Edwards Part Number A441-04-000
