Condition:
  New
Part Number:
  P108940
Warranty:
  Full Manufacturer's Warranty

Available Now:
75  



$168.53


Regular Price: $240.75

On Sale Flyer
Print Version

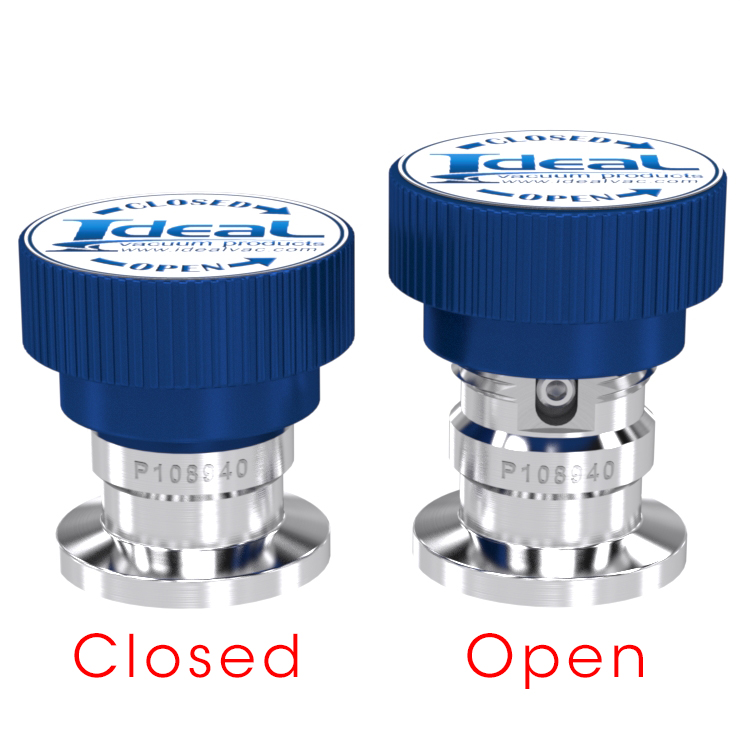

Ideal Vacuum Air Admittance Vent Valve, KF16, Stainless Steel


Ideal Vacuum Air Admittance Vent Valve, KF16, Stainless Steel

The Ideal Vacuum Air Admittance Vent Valve is Stainless Steel with an Aluminum, manually operated control knob attached to a screw actuated plunger. The plunger is sealed onto the valve seat in the valve body by a Viton O-ring. The Ideal Vacuum air admittance vent valve can also be pipeline mounted. These manual air admittance vent valves have a KF16 vacuum flange size and are sold as one each.

  • Body: Stainless Steel
  • O-ring seal: Viton
  • Maximum leak rate across body: less than1 x 10 -7 mbar.ls-1
  • Maximum leak rate across valve seat: less than1 x 10 -7 mbar.ls-1
  • Weight: 100 grams
  • Fitting: KF16, NW16

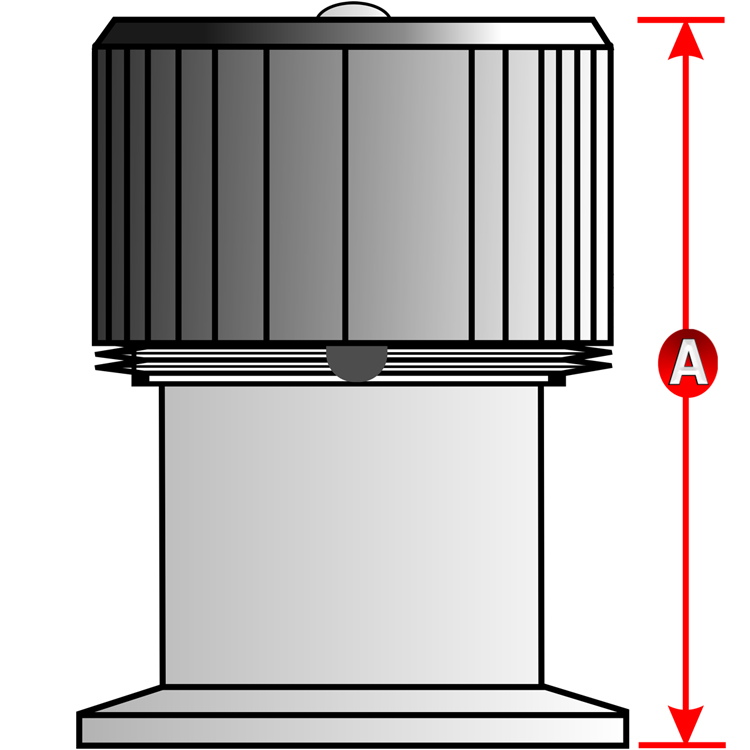

  • A: Valve Height (Closed): 35.56 mm (1.4 in.)
  • Sutitable for: Pipeline mounting.



Press ESC to Close


Ideal Spectroscopy offers 3D CAD models in Solidworks (SLDPRT), STP, & STEP formats. For those without CAD software a free trial 3D model viewer with measurement capabilities can be downloaded here:

E-drawing LogoeDrawings Viewer For Windows
E-drawing LogoeDrawings Viewer For MAC.
