MoreTec Hollow Shaft, 25-mm Shaft, Flange Mounted 100-mm BCD, Ferrofluidic Sealed, Rotary Feedthrough, Rotary Speed < 5800 RPM, HFB025CN

MoreTec Hollow Shaft, 25-mm Shaft, Flange Mounted 100-mm BCD, Ferrofluidic Sealed, Rotary Feedthrough, Model HFB025CN

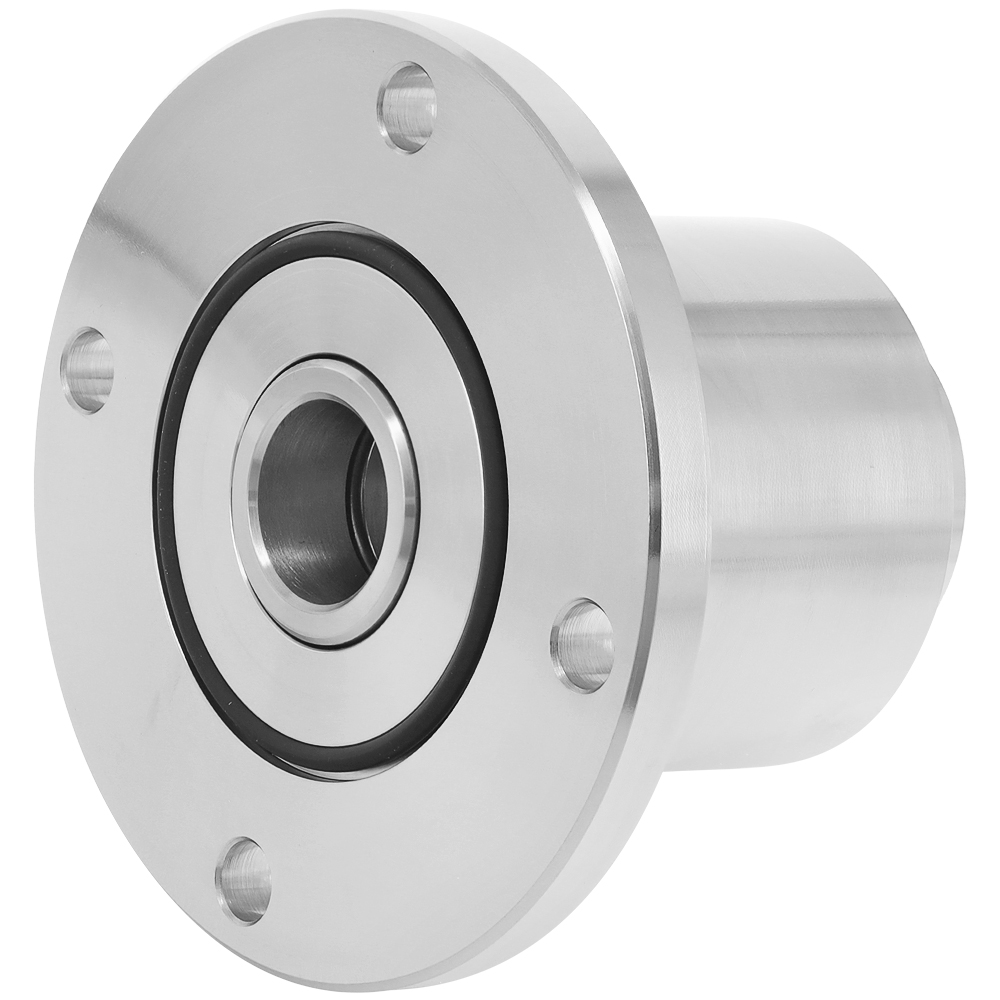

This is a 25-mm hollow shaft MoreTec Ferrofluidic sealed feedthrough model HFB025CN. This feedthrough has the following specifications:

Torque: Dependent On Customers Supplied Shaft Material
Shaft: 25-mm Diameter
Mounting: Flange Mounted, (4) 10-mm On 100-mm BCD
Rotary Speed: < 5800 RPM
Vacuum Base: 10-6 Torr
Vacuum Leak Check To Less Than 10-12 Pa.M3/sec Helium
Differential Pressue: 1 Kg/cm2
Temperature: 0-80 degrees C
Gases Sealed: Inert Gases

For precision measurement specifications, refer to the CAD mechanical drawing in pdf format.

Press ESC to Close

P1013778.sldprt

P1013778.step

Ideal Spectroscopy offers 3D CAD models in Solidworks (SLDPRT), STP, & STEP formats. For those without CAD software a free trial 3D model viewer with measurement capabilities can be downloaded here:

eDrawings Viewer For Windows
eDrawings Viewer For MAC.
