Condition:
  New
Part Number:
  P1011982
Warranty:
  Full Manufacturer's Warranty
Out of Stock  

RoHS Compliance Sticker


$2,068.00


Print Version

Inficon BPG402-S Bayard-Alpert Pirani Wide Range Vacuum Gauge, KF-25. PN: 353-570


Inficon BPG402-S Bayard-Alpert Pirani UHV Wide Range Vacuum Gauge. PN: 353-570, KF-25. Inficon Part Number 353-576


This is a INFICON Pirani Combination Ultra High Vacuum Gauge BPG402-SD. The INFICON Bayard-Alpert Pirani Combination Gauge, BPG402-SD functions as two gauges in a single compact unit. Combining technologies reduces the complexity of installation, setup, and integration. Two long-life yttrium oxide coated iridium filaments for affordable and repeatable process to base pressure measurements in one economical package. Sensing elements with onboard calibration data guarantees high reproducibility when exchanging sensors.This Gauge has a D Sub 15 pin Connector and a +0.774... +10V Measurement Range with DNET interface and 2 setpoints. This Gauge has and extremely wide measurement range from 5×10-10 mbar to atmosphere (3.8×10-10 Torr to atmosphere).

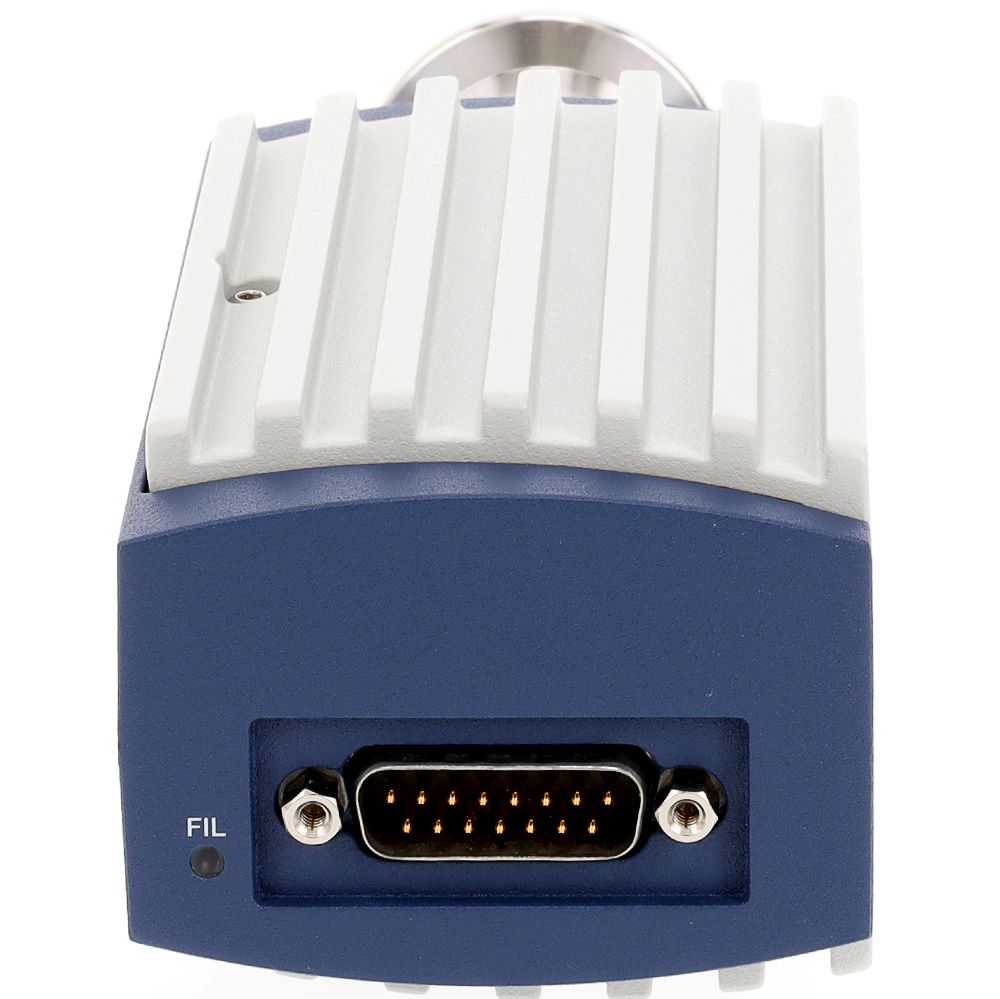

This Inficon BPG402-SD Combination Gauge can work with virtually any Vacuum Pump or Vacuum Pump System with the proper INFICON signal cable. This gauge has a D-Sub15-pin Connector and DNET Interface. The gauge is intended for operation in connection with an INFICON Vacuum Gauge Controller VCG401, 402, 403 or with another suitable controller.

For complete specifications of the BPG402-SD Gauge See the Datasheet and Operation Manual.pdf to the side at Downloads.


Press ESC to Close


PDF Logo RoHS Compliance Download

PDF Logo Inficon BPG402-Sx UHV Combination Gauge Brochure.pdf

PDF Logo Inficon BPG402 SHORT Operation Manual.pdf

PDF Logo Inficon BPG402 LONG Operation Manual.pdf

PDF Logo Inficon BPG402 DeviceNet Operation Manual.pdf
