Inficon BPG 400 Bayard-Alpert Pirani Combination ATM to Ultra High Vacuum Gauge, DN40 CF-R CF 2.75 in Fitting
Out of Stock


This Inficon Bayard-Alpert Pirani Combination Gauge, BPG400, Model 353-502, functions as two gauges in a single compact unit and measures from 5x10-10 mbar (3.75x10-10 Torr) to atmosphere. The gauge uses a long-life yttrium oxide coated iridium filament and has Pirani interlocks which protects the Bayard-Alpert system from premature filament burnout and excess contamination from high pressure operation. Combining these two technologies Pirani and bayard-Alpert) reduces the complexity of installation, setup, integration and cost. This Gauge has a D Sub 15 pin Connector and can work with virtually any vacuum pump or vacuum pump system with the proper signal cable. The gauge is intended for operation with an Inficon VCG401, 402, 403 vacuum gauge controller or with another suitable controller.

Condition: New



Product Number: P1011033



Price: $1,901.74

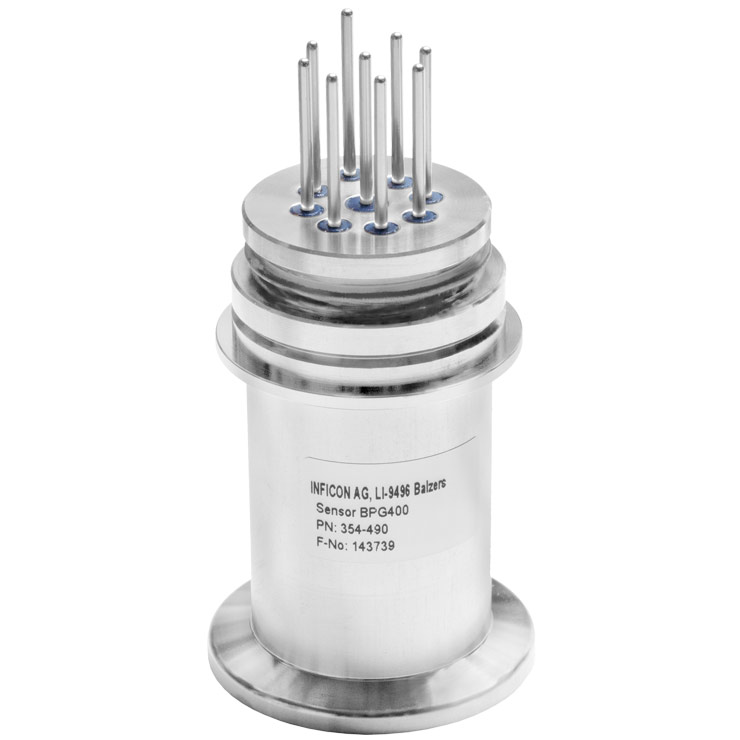

Inficon Spare Sensor for BPG 400 Bayard-Alpert Pirani Combination ATM to Ultra High Vacuum Gauge, DN 25, ISO KF-25. PN: 354-490.
Out of Stock
Expecting: 3
Arrival: 3 on 2024-04-06


This is a spare sensor head for all Inficon Bayard-Alpert Pirani Combination Gauges, model BPG400 (gauge not included). It has a KF-25 fitting and can be used either as a direct replacement or to change a different BPG 400 gauge fitting to KF-25. For complete specifications of the BPG 400 gauge, please download the brochure.

Condition: New



Product Number: P1011153



Price: $867.64

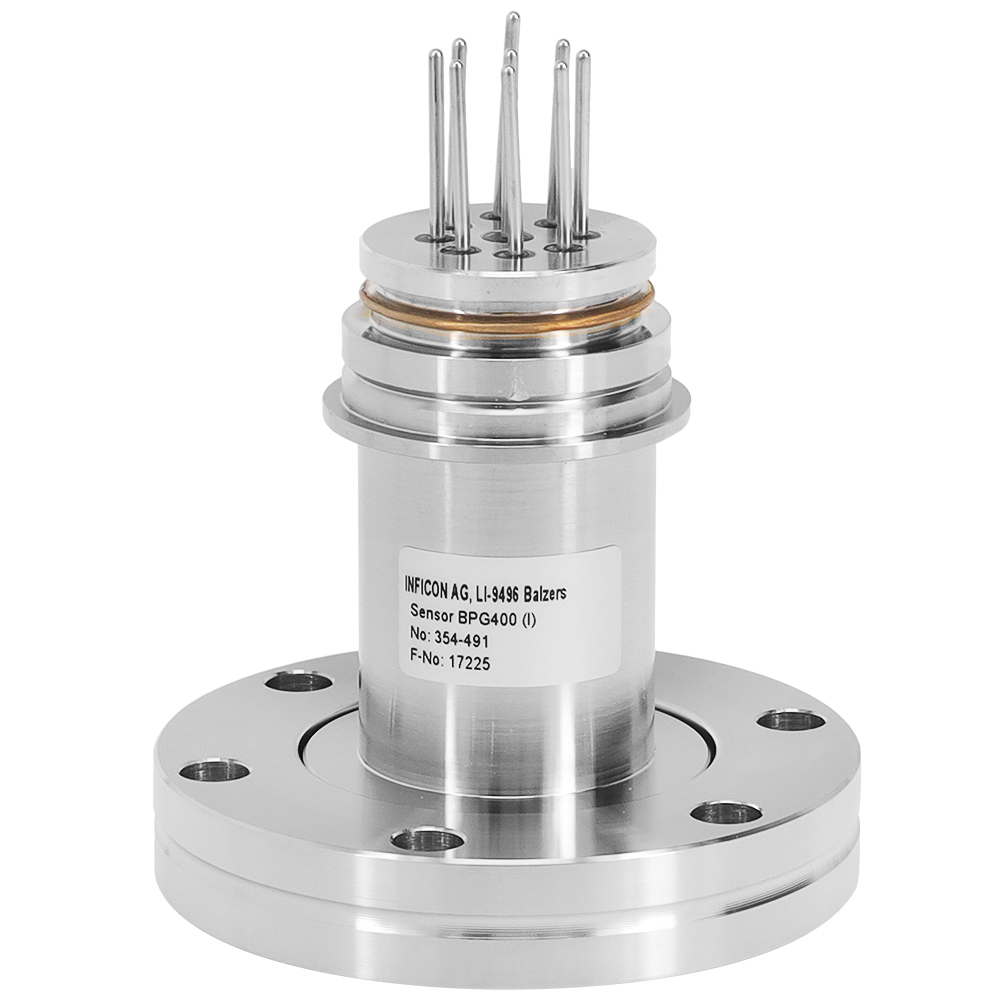

Inficon Spare Sensor for BPG 400 Bayard-Alpert Pirani Combination ATM to Ultra High Vacuum Gauge, DN 40, CF 2.75". PN: 354-491.
Out of Stock


This is a spare sensor head for all Inficon Bayard-Alpert Pirani Combination Gauges, model BPG400 (gauge not included). It has a CF 2.75 in. (DN40) fitting and can be used either as a direct replacement or to change a different BPG 400 gauge fitting to CF 2.75". For complete specifications of the BPG 400 gauge, please download the brochure.

Condition: New



Product Number: P1012413



Price: $926.76

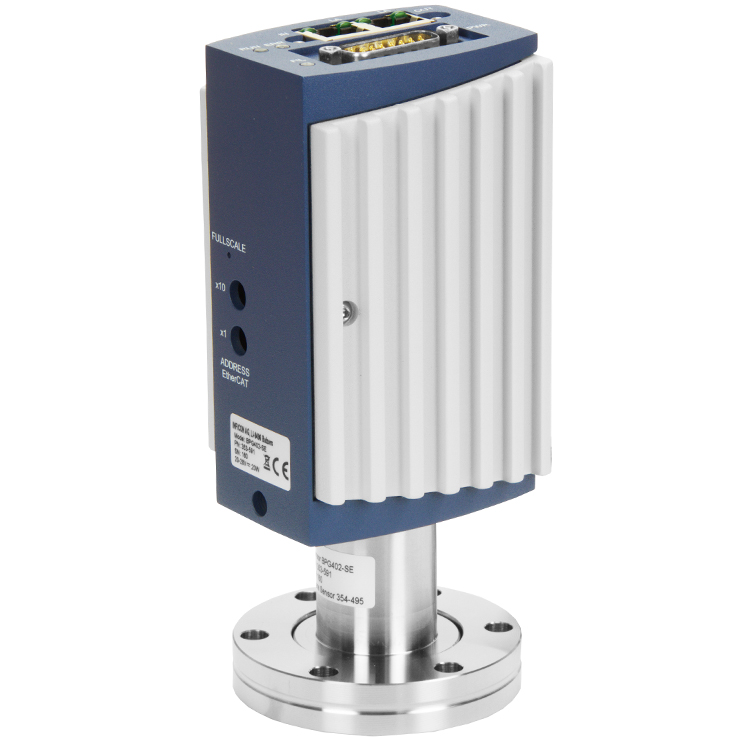

Inficon BPG 402-S Bayard-Alpert Pirani Combination ATM to UHV Gauge, 2 filaments, DN40CFR CF 2.75 in, D Sub 15 pin
In Stock: 1


This is a INFICON Pirani Combination Ultra High Vacuum Gauge BPG402SE. The INFICON Bayard-Alpert Pirani Combination Gauge, BPG402-S, functions as two gauges in a single compact unit. Combining technologies reduces the complexity of installation, setup, and integration. The BPG402-S has two yttrium oxide coated iridium filaments for affordable and repeatable process to base pressure measurements in one economical package. Sensing elements with onboard calibration data guarantees high reproducibility when exchanging sensors.This Gauge has a D Sub 15 pin Connector. This Gauge has a Pressure Measurement Range of 5×10-10 mbar to atmosphere (3.8×10-10 Torr to atmosphere).

Condition: New



Product Number: P1011238



Price: $2,169.48



Inficon BPG 402SE Bayard-Alpert Pirani Combination UHV Gauge, 2 filaments, DN40CFR CF 2.75 in, D Sub 15 pin, EtherCAT
Out of Stock


This is a Inficon Pirani Combination Ultra High Vacuum Gauge BPG402SE. The Inficon Bayard-Alpert Pirani Combination Gauge, BPG402-SE, functions as two gauges in a single compact unit. Combining technologies reduces the complexity of installation, setup, and integration. The BPG402-SE has two yttrium oxide coated iridium filaments for affordable and repeatable process to base pressure measurements in one economical package. Sensing elements with onboard calibration data guarantees high reproducibility when exchanging sensors.This Gauge has a D Sub 15 pin Connector and a 0.774 - 10V Measurement Range with EtherCAT Interface. This Gauge has a Pressure Measurement Range of 5×10-10 mbar to atmosphere (3.8×10-10 Torr to atmosphere).

Condition: New



Product Number: P109311



Price: $2,145.00

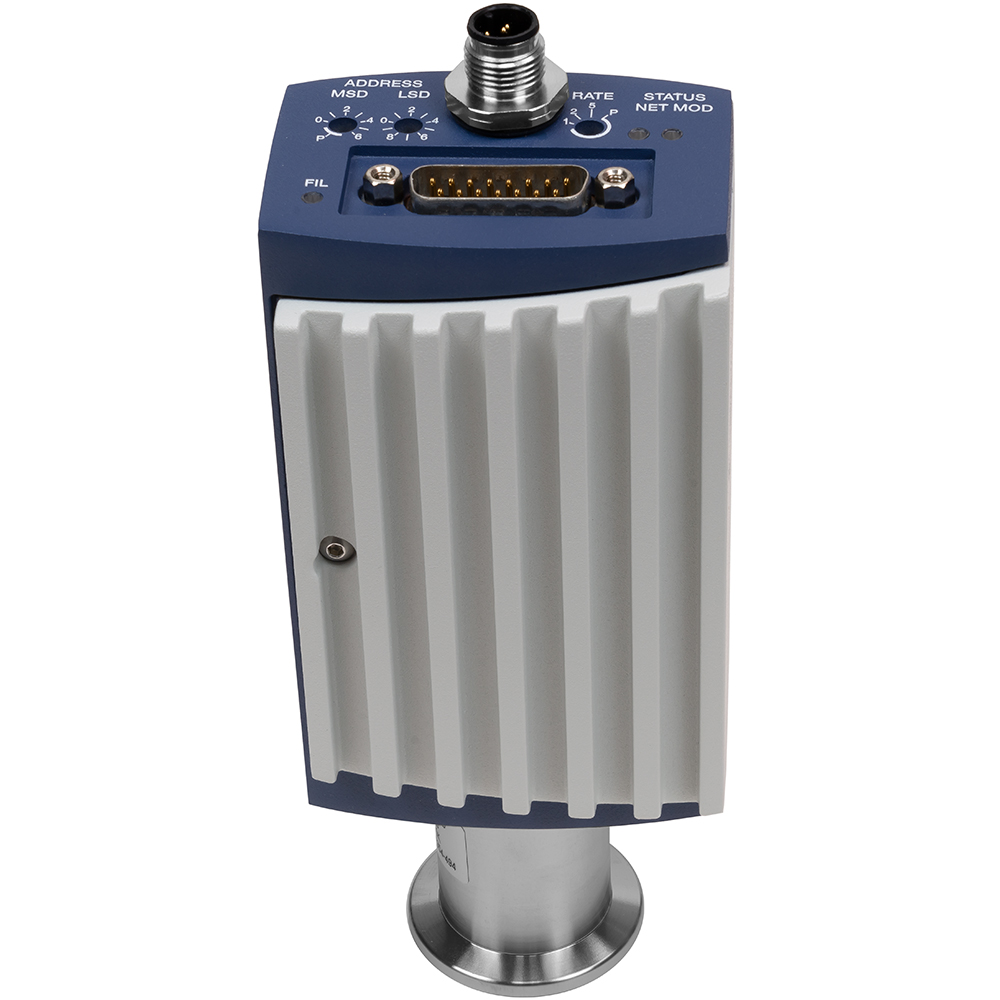

INFICON BPG 402-SD Bayard-Alpert Pirani Combination UHV Gauge, 2 filaments, KF25, 2 Setpoints. PN: 353-576
Out of Stock


This is a INFICON Pirani Combination Ultra High Vacuum Gauge BPG402-SD. The INFICON Bayard-Alpert Pirani Combination Gauge, BPG402-SD functions as two gauges in a single compact unit. Combining technologies reduces the complexity of installation, setup, and integration. Two long-life yttrium oxide coated iridium filaments for affordable and repeatable process to base pressure measurements in one economical package. Sensing elements with onboard calibration data guarantees high reproducibility when exchanging sensors.This Gauge has a D Sub 15 pin Connector and a +0.774... +10V Measurement Range with DNET interface and 2 setpoints. This Gauge has and extremely wide measurement range from 5×10-10 mbar to atmosphere (3.8×10-10 Torr to atmosphere).

Condition: New



Product Number: P1011488



Price: $2,431.00

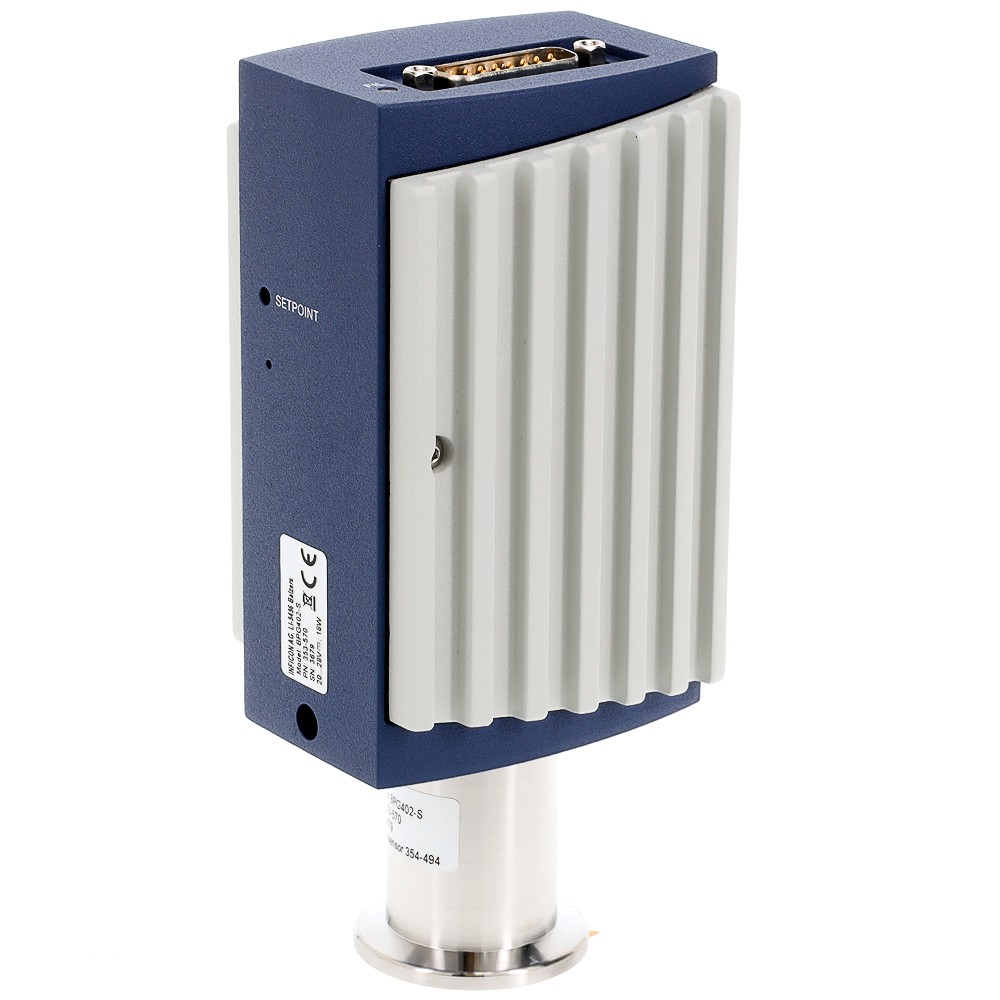

Inficon BPG402-S Bayard-Alpert Pirani Wide Range Vacuum Gauge, KF-25. PN: 353-570
Out of Stock


This is a INFICON Pirani Combination Ultra High Vacuum Gauge BPG402-SD. The INFICON Bayard-Alpert Pirani Combination Gauge, BPG402-SD functions as two gauges in a single compact unit. Combining technologies reduces the complexity of installation, setup, and integration. Two long-life yttrium oxide coated iridium filaments for affordable and repeatable process to base pressure measurements in one economical package. Sensing elements with onboard calibration data guarantees high reproducibility when exchanging sensors.This Gauge has a D Sub 15 pin Connector and a +0.774... +10V Measurement Range with DNET interface and 2 setpoints. This Gauge has and extremely wide measurement range from 5×10-10 mbar to atmosphere (3.8×10-10 Torr to atmosphere).

Condition: New



Product Number: P1011982



Price: $2,068.00

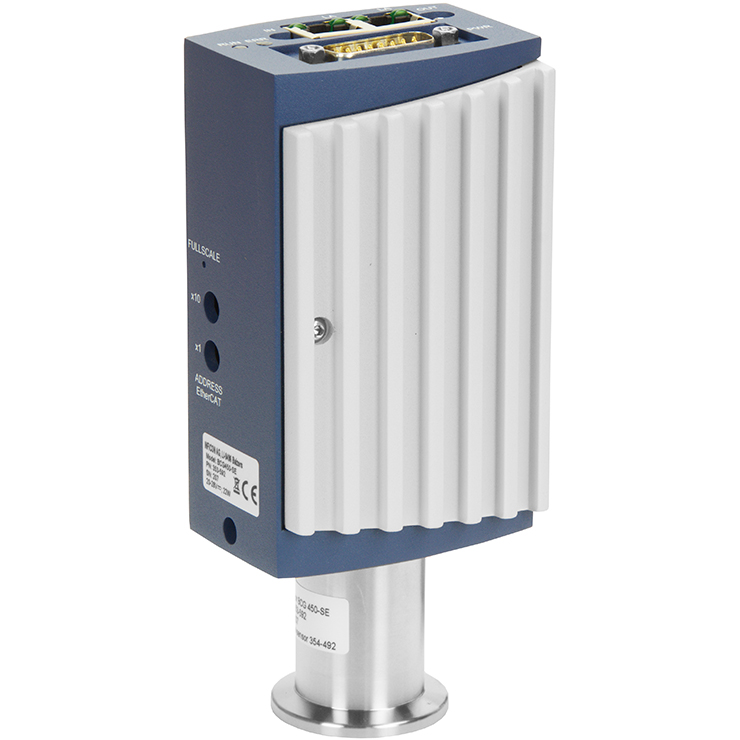

NEW INFICON BCG 450-SE Pirani Capacitance Diaphragm Ultra High Vacuum TRIPLE GAUGE, KF25, 15 pin, EtherCat
Out of Stock


This is a INFICON Pirani Capacitance Diaphragm Ultra High Vacuum TRIPLE GAUGE BCG450-SE. The INFICON BCG450-SE, combines the advantages of three different technologies in a single, compact, economical package. The BCG450-SE is designed to take the place of three sensors (hot ion, convection enhanced Pirani and vacuum switch), thus reducing cost and valuable tool space.This Gauge has a D Sub 15 pin Connector and a 0.774 - 10V Measurement Range with 2 set points and EtherCAT Interface. This Gauge can measure process and base pressure from 5×10-10 to 1500 mbar (3.75×10-10 to 1125 Torr). This Inficon BCG 450-SE Pirani Capacitance Diaphragm Ultra High Vacuum TRIPLE GAUGE can work with virtually any Vacuum Pump or Vacuum Pump System with the proper INFICON signal cable. This gauge has a D-Sub15-pin Connector and EtherCAT Interface. The gauge is intended for operation in connection with an INFICON Vacuum Gauge Controller VCG401, 402, 403 or with another suitable controller.

Condition: New



Product Number: P109312



Price: $2,398.00

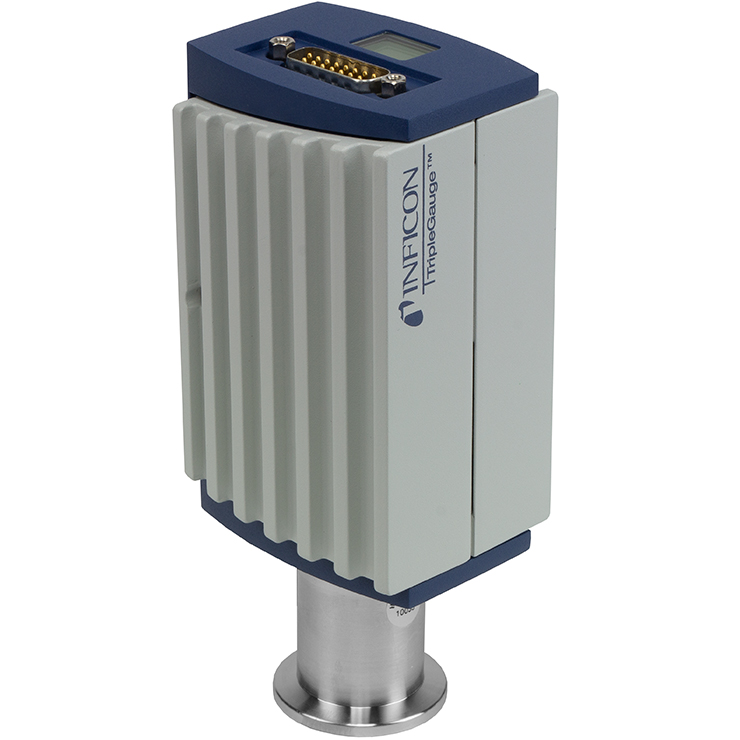

Inficon BCG 450 Pirani Capacitance Diaphragm BCG 450 LCD Display, DN 25 ISO-KF 353-552
Out of Stock


This is a Inficon Pirani Capacitance Diaphragm Ultra High Vacuum TRIPLE GAUGE BCG450. The Inficon BCG450, combines the advantages of three different technologies in a single, compact, economical package. The BCG450 is designed to take the place of three sensors (hot ion, convection enhanced Pirani and vacuum switch), thus reducing cost and valuable tool space.This Gauge can measure process and base pressure from 5×10-10 to 1500 mbar (3.75×10-10 to 1125 Torr). It comes with an LCD Display. For complete SPECIFICATIONS see Manuals to the side at downloads. This Inficon BCG 450 Pirani Capacitance Diaphragm Ultra High Vacuum TRIPLE GAUGE can work with virtually any Vacuum Pump or Vacuum Pump System with the proper INFICON signal cable. This gauge has a D-Sub15-pin Connector. The gauge is intended for operation in connection with an INFICON Vacuum Gauge Controller VCG401, 402, 403 or with another suitable controller.

Condition: New



Product Number: P1011012



Price: $3,176.25
