Ideal Vacuum Cube 6 x 6 Vacuum Chamber Blank Plate No Ports with Internal Optical Breadboard
In Stock: 87


This is an Ideal Vacuum Cube 6 x 6 inch blank plate without ports. The plate is machined from 6061-T6 aluminum and powder coated blue. It has an internal optical breadboard for mounting test items or fixtures. Blank plates are the least expensive Cube plates and are used for the bottom of Cubes or any other Cube sides where ports are not needed. Features:6 x 6 plate6061-T6 aluminumBlue powdercoatBlank plate without ports Internal optical breadboardMounts in any orientationDirectly mounts to frame size:6x6x6 hexagon6x6x12 hexagon6x6x12 octagon This plate can also be mounted on any 9x9 or 12x12 plate with a plate adapter kit.

Condition: New



Product Number: P106862



Price: $117.42



Ideal Vacuum Cube 6 x 6 Vacuum Chamber Blank Plate No Ports with Internal Optical Breadboard Uncoated for Bakeout
In Stock: 34


This is an Ideal Vacuum Cube 6 x 6 inch blank plate without ports.The plate is machined from 6061-T6 aluminum and is uncoated for bakeout to 150°C, the limit of the Viton sealing O-ring. It has an internal optical breadboard for mounting test items or fixtures. This is the least expensive Cube plate with an internal optical breadboard. It is often used for the bottom of Cubes, or any other Cube side where ports are not needed, but the ability to fixture components inside the chamber is desired. Features:6 x 6 plate6061-T6 aluminumUncoated for bakeout to 150°CBlank plate without ports Internal optical breadboardMounts in any orientation

Condition: New



Product Number: P1012798



Price: $105.83

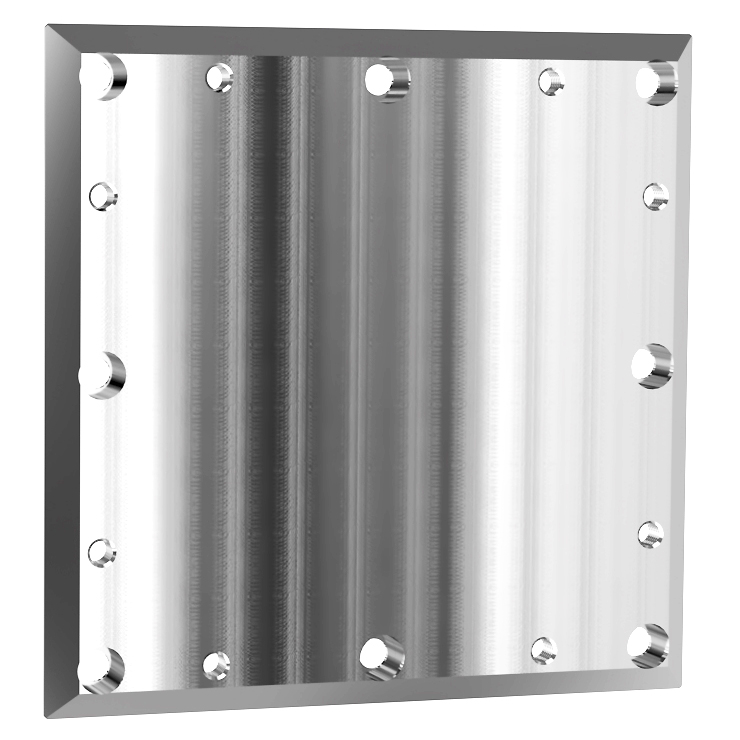

Ideal Vacuum Cube 6 x 6 Vacuum Chamber Machinable Blank Plate No Ports Uncoated for Bakeout
In Stock: 73


This is an uncoated Ideal Vacuum Cube 6 x 6 inch blank plate without ports and without the internal optical breadboard grid found on most other Cube plates. The plate is machined from 6061-T6 aluminum and is uncoated for bakeout to 150°C, the limit of the Viton sealing O-ring. This is the least expensive Cube plate of any we offer. Use it as is for the bottom of a Cube or any other Cube side where ports are not needed, or customize to your requirements by adding unusual or proprietary ports, for welding on bulkhead fittings, or for custom attachments and fixtures. Note that Ideal Vacuum offers custom Cube plate solutions. Please speak to your representative for a quick quote.

Condition: New



Product Number: P108195



Price: $93.70



Ideal Vacuum Cube 6 x 6 Vacuum Chamber Machinable Blank Plate No Ports Uncoated Stainless Steel for Bakeout
In Stock: 8


This is an uncoated Ideal Vacuum Cube 6 x 6 inch blank plate without ports and without the internal optical breadboard grid found on most other Cube plates. The plate is machined from 304L stainless steel and is uncoated for bakeout to 150°C, the limit of the Viton sealing O-ring. Use this plate as is for the bottom of a Cube or any other Cube side where ports are not needed, or customize to your requirements by adding unusual or proprietary ports, for welding on bulkhead fittings, or for custom attachments and fixtures. Note that Ideal Vacuum offers custom Cube plate solutions. Please speak to your representative for a quick quote. Features:6 x 6 plate304L stainless steel

Condition: New



Product Number: P1011282



Price: $197.79

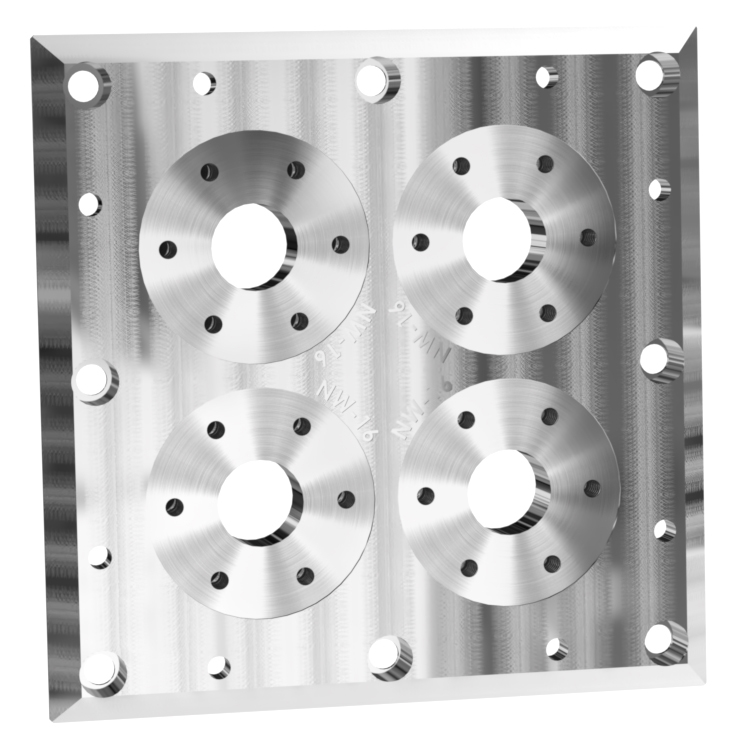

Ideal Vacuum Cube 6 x 6 Vacuum Chamber Plate With Four KF-16 (NW-16) Ports
In Stock: 98


This is an Ideal Vacuum Cube 6 x 6 inch plate with four KF-16 bulkhead ports. The plate is machined from 6061-T6 aluminum and powder coated blue. SInce a bulkhead KF fitting does not have a flange, this type of connection cannot use a standard KF clamp. Bulkhead KF clamps are secured to the plate with screws. To attach a KF flanged component to the KF bulkhead fitting, use a standard KF-16 centering ring (P101242) and bulkhead clamp (P108101 or P104598). Features:6 x 6 plate6061-T6 aluminumBlue powdercoatQuad KF-16 (NW-16) bulkhead ports (uses KF-16 bulkhead clamps and centering rings) Internal optical breadboardMounts in any orientation

Condition: New



Product Number: P106866



Price: $153.01



Ideal Vacuum Cube 6 x 6 Vacuum Chamber Plate With Four KF-16 (NW-16) Ports Uncoated for Bakeout
In Stock: 38


This is an Ideal Vacuum Cube 6 x 6 inch plate with four KF-16 bulkhead ports. The plate is machined from 6061-T6 aluminum and is uncoated for bakeout to 150°C, the limit of the Viton sealing O-ring. SInce a bulkhead KF fitting does not have a flange, this type of connection cannot use a standard KF clamp. Bulkhead KF clamps are secured to the plate with screws. To attach a KF flanged component to the KF bulkhead fitting, use a standard KF-16 centering ring (P101242) and bulkhead clamp (P104598 or P108101). Features:6 x 6 plate6061-T6 aluminumUncoated for bakeout to 150°CQuad KF-16 (NW-16) bulkhead ports (uses KF-16 bulkhead clamps and centering rings)

Condition: New



Product Number: P109357



Price: $153.01

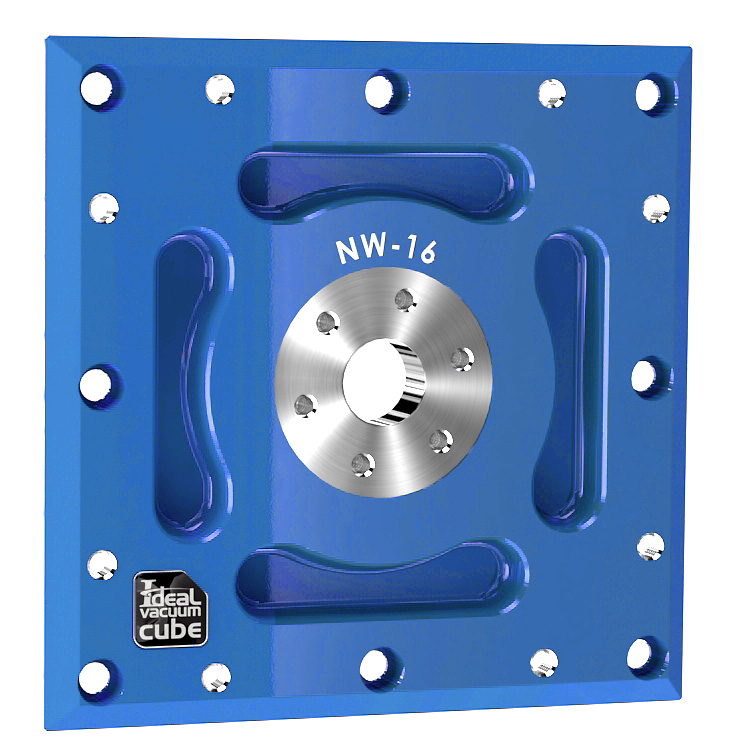

Ideal Vacuum Cube 6 x 6 Vacuum Chamber Plate With One KF-16 (NW-16) Port
In Stock: 36


This is an Ideal Vacuum Cube 6 x 6 inch plate with one KF-16 centered bulkhead port. The plate is machined from 6061-T6 aluminum and powder coated blue. SInce a bulkhead KF fitting does not have a flange, this type of connection cannot use a standard KF clamp. Bulkhead KF clamps are secured to the plate with screws. To attach a KF flanged component to the KF bulkhead fitting, use a standard KF-16 centering ring (P101242) and bulkhead clamp (P104598 or P108101). Features:6 x 6 plate6061-T6 aluminumBlue powdercoatSingle KF-16 (NW-16) bulkhead port (uses KF-16 bulkhead clamp) Internal optical breadboardMounts in any orientationDirectly mounts to frame size:

Condition: New



Product Number: P108745



Price: $141.14

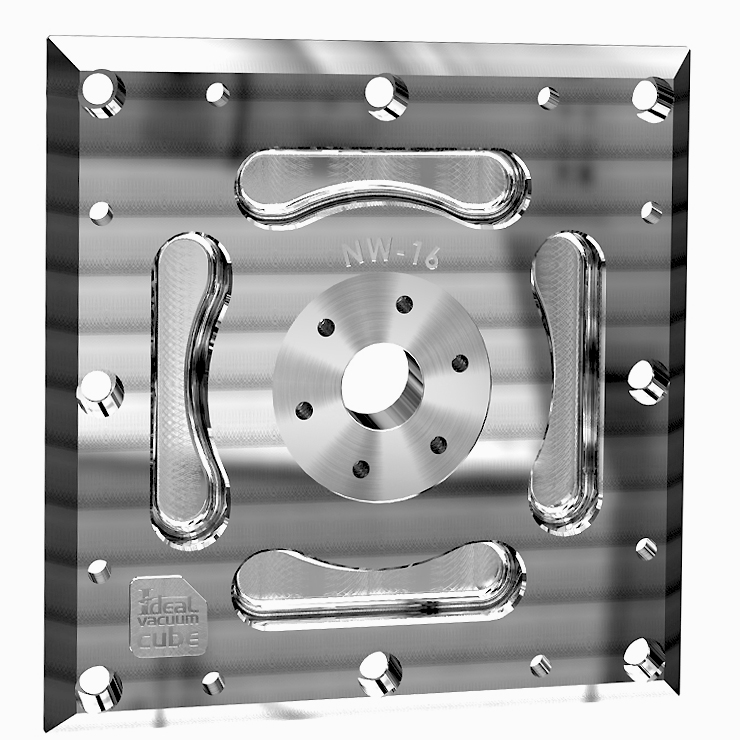

Ideal Vacuum Cube 6 x 6 Vacuum Chamber Plate With One KF-16 (NW-16) Port Uncoated for Bakeout
In Stock: 26


This is an Ideal Vacuum Cube 6 x 6 inch plate with one KF-16 centered bulkhead port. The plate is machined from 6061-T6 aluminum and is uncoated for bakeout to 150°C, the limit of the Viton sealing O-ring. SInce a bulkhead KF fitting does not have a flange, this type of connection cannot use a standard KF clamp. Bulkhead KF clamps are secured to the plate with screws. To attach a KF flanged component to the KF bulkhead fitting, use a standard KF-16 centering ring (P101242) and bulkhead clamp (P104598 or P108101). Features:6 x 6 plate6061-T6 aluminumUncoated for bakeout to 150°CSingle KF-16 (NW-16) bulkhead port (uses KF-16 bulkhead clamp and centering ring)

Condition: New



Product Number: P109358



Price: $141.14



Ideal Vacuum Cube 6 x 6 Vacuum Chamber Plate With One KF-25 (NW-25) Port
In Stock: 19


This is an Ideal Vacuum Cube 6 x 6 inch plate with one KF-25 centered bulkhead port. The plate is machined from 6061-T6 aluminum and powder coated blue. SInce a bulkhead KF fitting does not have a flange, this type of connection cannot use a standard KF clamp. Bulkhead KF clamps are secured to the plate with screws. To attach a KF flanged component to the KF bulkhead fitting, use a standard KF-25 centering ring (P101243) and bulkhead clamp (P108102 or P104599). Features:6 x 6 plate6061-T6 aluminumBlue powdercoatSingle KF-25 (NW-25) bulkhead port (uses KF-25 bulkhead clamp and centering ring) Internal optical breadboardMounts in any orientation

Condition: New



Product Number: P106865



Price: $141.14



Ideal Vacuum Cube 6 x 6 Vacuum Chamber Plate With One KF-25 (NW-25) Port Uncoated for Bakeout
In Stock: 40


This is an Ideal Vacuum Cube 6 x 6 inch plate with one KF-25 centered bulkhead port. The plate is machined from 6061-T6 aluminum and is uncoated for bakeout to 150°C, the limit of the Viton sealing O-ring. SInce a bulkhead KF fitting does not have a flange, this type of connection cannot use a standard KF clamp. Bulkhead KF clamps are secured to the plate with screws. To attach a KF flanged component to the KF bulkhead fitting, use a standard KF-25 centering ring (P101243) and bulkhead clamp (P108102 or P104599). Features:6 x 6 plate6061-T6 aluminumUncoated for bakeout to 150°CSingle KF-25 (NW-25) bulkhead port (uses KF-25 bulkhead clamp and centering ring)

Condition: New



Product Number: P109359



Price: $141.14



Ideal Vacuum Cube 6 x 6 Vacuum Chamber Plate With Two KF-25 (NW-25) Ports
In Stock: 49


This is an Ideal Vacuum Cube 6 x 6 inch plate with two KF-25 bulkhead ports. The plate is machined from 6061-T6 aluminum and powder coated blue. SInce a bulkhead KF fitting does not have a flange, this type of connection cannot use a standard KF clamp. Bulkhead KF clamps are secured to the plate with screws. To attach a KF flanged component to the KF bulkhead fitting, use a standard KF-25 centering ring (P101243) and bulkhead clamp (P108102 or P104599). Features:6 x 6 plate6061-T6 aluminumBlue powdercoatDual KF-25 (NW-25) bulkhead ports (uses KF-25 bulkhead clamps and centering rings) Internal optical breadboardMounts in any orientation

Condition: New



Product Number: P109506



Price: $203.73



Ideal Vacuum Cube 6 x 6 Vacuum Chamber Plate With One KF-40 (NW-40) Port
In Stock: 62


This is an Ideal Vacuum Cube 6 x 6 inch plate with one KF-40 centered bulkhead port. The plate is machined from 6061-T6 aluminum and powder coated blue. SInce a bulkhead KF fitting does not have a flange, this type of connection cannot use a standard KF clamp. Bulkhead KF clamps are secured to the plate with screws. To attach a KF flanged component to the KF bulkhead fitting, use a standard KF-40 centering ring (P101244) and bulkhead clamp (P108103 or P104600). Features:6 x 6 plate6061-T6 aluminumBlue powdercoatSingle KF-40 (NW-40) bulkhead port (uses KF-40 bulkhead clamp and centering ring) Internal optical breadboardMounts in any orientation

Condition: New



Product Number: P106863



Price: $141.14



Ideal Vacuum Cube 6 x 6 Vacuum Chamber Plate With One KF-40 (NW-40) Port Uncoated for Bakeout
In Stock: 34


This is an Ideal Vacuum Cube 6 x 6 inch plate with one KF-40 centered bulkhead port. The plate is machined from 6061-T6 aluminum and is uncoated for bakeout to 150°C, the limit of the Viton sealing O-ring. SInce a bulkhead KF fitting does not have a flange, this type of connection cannot use a standard KF clamp. Bulkhead KF clamps are secured to the plate with screws. To attach a KF flanged component to the KF bulkhead fitting, use a standard KF-40 centering ring (P101244) and bulkhead clamp (P108103 or P104600). Features:6 x 6 plate6061-T6 aluminumUncoated for bakeout to 150°CSingle KF-40 (NW-40) bulkhead port (uses KF-40 bulkhead clamp and centering ring)

Condition: New



Product Number: P109360



Price: $141.14



Ideal Vacuum Cube 6 x 6 Vacuum Chamber Plate With One KF-50 (NW-50) Port
In Stock: 26


This is an Ideal Vacuum Cube 6 x 6 inch plate with one KF-50 centered bulkhead port. The plate is machined from 6061-T6 aluminum and powder coated blue. SInce a bulkhead KF fitting does not have a flange, this type of connection cannot use a standard KF clamp. Bulkhead KF clamps are secured to the plate with screws. To attach a KF flanged component to the KF bulkhead fitting, use a standard KF-50 centering ring (P101245) and bulkhead clamp (P108104 or P104601). Features:6 x 6 plate6061-T6 aluminumBlue powdercoatSingle KF-50 (NW-50) bulkhead port (uses KF-50 bulkhead clamp and centering ring) Internal optical breadboardMounts in any orientation

Condition: New



Product Number: P107296



Price: $141.14



Ideal Vacuum Cube 6 x 6 Vacuum Chamber Plate With One KF-50 (NW-50) Port Uncoated for Bakeout
In Stock: 50


This is an Ideal Vacuum Cube 6 x 6 inch plate with one KF-50 centered bulkhead port. The plate is machined from 6061-T6 aluminum and is uncoated for bakeout to 150°C, the limit of the Viton sealing O-ring. SInce a bulkhead KF fitting does not have a flange, this type of connection cannot use a standard KF clamp. Bulkhead KF clamps are secured to the plate with screws. To attach a KF flanged component to the KF bulkhead fitting, use a standard KF-5 centering ring (P101245) and bulkhead clamp (P108104 or P104601). Features:6 x 6 plate6061-T6 aluminumUncoated for bakeout to 150°CSingle KF-50 (NW-50) bulkhead port (uses KF-50 bulkhead clamp and centering ring)

Condition: New



Product Number: P109361



Price: $141.14



Ideal Vacuum Cube 6 x 6 Vacuum Chamber Plate With One ISO-F 63 Port
In Stock: 1


This is an Ideal Vacuum Cube 6 x 6 inch plate with one ISO-F 63 centered port. The plate is machined from 6061-T6 aluminum and powder coated blue. This ISO-F ported plate has 5/16-18 tapped holes for mounting a turbo pump, or ISO flanged tubing. To mount an ISO-K flanged turbo pump or tubing, single claw clamps (P104063) and a centering ring with O-ring seal are needed. (P101766). Below, please download the Common Vacuum Fittings Selection and Assembly Guide for instructions about making leak-proof flanged connections. Also download the Cube Plate Installation Manual for making leak-proof Vacuum Cube plate seals. Features:6" x 6" plate6061-T6 aluminum

Condition: New



Product Number: P106864



Price: $153.01



Ideal Vacuum Cube 6 x 6 Vacuum Chamber Plate With One ISO-F 63 Port Uncoated for Bakeout
In Stock: 16


This is an Ideal Vacuum Cube 6 x 6 inch plate with one ISO-F 63 centered port. The plate is machined from 6061-T6 aluminum and is uncoated for bakeout to 150°C, the limit of the Viton sealing O-ring. The ISO-F port has 5/16-18 tapped holes for mounting a turbo pump, or ISO flanged tubing. To mount an ISO-K flanged turbo pump or tubing, single claw clamps (P104063) and a centering ring with O-ring seal are needed. (P101766). Below, please download the Common Vacuum Fittings Selection and Assembly Guide for instructions about making leak-proof flanged connections. Also download the Cube Plate Installation Manual for making leak-proof Vacuum Cube plate seals.

Condition: New



Product Number: P109362



Price: $153.01



Ideal Vacuum Cube 6 x 6 Vacuum Chamber Plate With One Conflat CF 1.33 in. Port
In Stock: 14


NOT COMPATIBLE WITH COPPER GASKETS. USE ONLY WITH VITON CF GASKETS! This is an Ideal Vacuum Cube 6 x 6 inch plate with one CF 1.33" centered Conflat port. The plate is machined from 6061-T6 aluminum and powder coated blue. This Conflat CF ported plate has #8-32 UNC tapped holes for mounting a turbo pump or CF flanged tubing. This plate's Conflat port requires six (6) 8-32 x 1/2" long, silver-plated, 12 point bolts (P104402). The CF port is not compatible with metal gaskets. Use only Viton seals (P104339). Cube baseline vacuum is 1 x 10 Torr. Features:6 x 6 plate6061-T6 aluminumBlue powdercoatSingle CF 1.33" port with #8-32 UNC tapped holes

Condition: New



Product Number: P107426



Price: $188.59



Ideal Vacuum Cube 6 x 6 Vacuum Chamber Plate With One Conflat CF 1.33 in. Port Uncoated for Bakeout
In Stock: 16


NOT COMPATIBLE WITH COPPER GASKETS. USE ONLY WITH VITON CF GASKETS! This is an Ideal Vacuum Cube 6 x 6 inch plate with one CF 1.33" centered Conflat port. The plate is machined from 6061-T6 aluminum and is uncoated for bakeout to 150°C, the limit of the Viton sealing O-ring. This Conflat CF ported plate has #8-32 UNC tapped holes for mounting a turbo pump or CF flanged tubing. This plate's Conflat port requires six (6) 8-32 x 1/2" long, silver-plated, 12 point bolts (P104402). The CF port is not compatible with metal gaskets. Use only Viton seals (P104339). Cube baseline vacuum is 1 x 10 Torr. Features:6 x 6 plate6061-T6 aluminumUncoated for bakeout to 150°C

Condition: New



Product Number: P109363



Price: $188.59



Ideal Vacuum Cube 6 x 6 Vacuum Chamber Plate With One Conflat CF 2.75 in. Port
In Stock: 37


NOT COMPATIBLE WITH COPPER GASKETS. USE ONLY WITH VITON CF GASKETS! This is an Ideal Vacuum Cube 6 x 6 inch plate with one CF 2.75" centered Conflat port. The plate is machined from 6061-T6 aluminum and powder coated blue. This Conflat CF ported plate has 1/4-28 UNF tapped holes for mounting a turbo pump or CF flanged tubing. The plate's Conflat port requires six (6) 1/4-28 x 7/8" long, silver-plated, 12 point bolts (P104404). The CF port is not compatible with metal gaskets. Use only Viton seals (P104341). Cube baseline vacuum is 1 x 10 Torr. Features:6 x 6 plate6061-T6 aluminumBlue powdercoatSingle CF 2.75" port with 1/4-28 UNF tapped holes

Condition: New



Product Number: P107298



Price: $188.59



Ideal Vacuum Cube 6 x 6 Vacuum Chamber Plate with One Conflat CF 2.75 In. Port Uncoated for Bakeout
In Stock: 12


NOT COMPATIBLE WITH COPPER GASKETS. USE ONLY WITH VITON CF GASKETS! This is an Ideal Vacuum Cube 6 x 6 inch plate with one CF 2.75" centered Conflat port. The plate is machined from 6061-T6 aluminum and is uncoated for bakeout to 150°C, the limit of the Viton sealing O-ring. This Conflat CF ported plate has 1/4-28 UNF tapped holes for mounting a turbo pump or CF flanged tubing. This plate's Conflat port requires six (6) 1/4-28 x 7/8" long, silver-plated, 12 point bolts (P104404). The CF port is not compatible with metal gaskets. Use only Viton seals (P104341). Cube baseline vacuum is 1 x 10 Torr. Features:6 x 6 plate6061-T6 aluminumUncoated for bakeout to 150°C

Condition: New



Product Number: P109364



Price: $188.59



Ideal Vacuum Cube 6 x 6 Vacuum Chamber Plate With One Conflat CF 3.375 in. Port
In Stock: 13


NOT COMPATIBLE WITH COPPER GASKETS. USE ONLY WITH VITON CF GASKETS! This is an Ideal Vacuum Cube 6 x 6 inch plate with one CF 3.375" centered Conflat port. The plate is machined from 6061-T6 aluminum and powder coated blue. This Conflat CF ported plate has 5/16-24 UNF tapped holes for mounting a turbo pump or CF flanged tubing. This plate's Conflat port requires eight (8) 5/16-24 x 1.0" long, silver-plated, 12 point bolts (P1012250). The CF port is not compatible with metal gaskets. Use only Viton seals (P104342). Cube baseline vacuum is 1 x 10 Torr. Features:6 x 6 plate6061-T6 aluminumBlue powdercoatSingle CF 3.375" port with 5/16-24 UNF tapped holes

Condition: New



Product Number: P107299



Price: $201.62



Ideal Vacuum Cube 6 x 6 Vacuum Chamber Plate With One Conflat CF 3.375 in. Port Uncoated for Bakeout
In Stock: 5


NOT COMPATIBLE WITH COPPER GASKETS. USE ONLY WITH VITON CF GASKETS! This is an Ideal Vacuum Cube 6 x 6 inch plate with one CF 3.375" centered Conflat port. The plate is machined from 6061-T6 aluminum and is uncoated for bakeout to 150°C, the limit of the Viton sealing O-ring. This Conflat CF ported plate has 5/16-24 UNF tapped holes for mounting a turbo pump or CF flanged tubing. This plate's Conflat port requires eight (8) 5/16-24 x 1.0" long, silver-plated, 12 point bolts (P1012250). The CF port is not compatible with metal gaskets. Use only Viton seals (P104342). Cube baseline vacuum is 1 x 10 Torr. Features:6 x 6 plate6061-T6 aluminumUncoated for bakeout to 150°C

Condition: New



Product Number: P109365



Price: $201.62

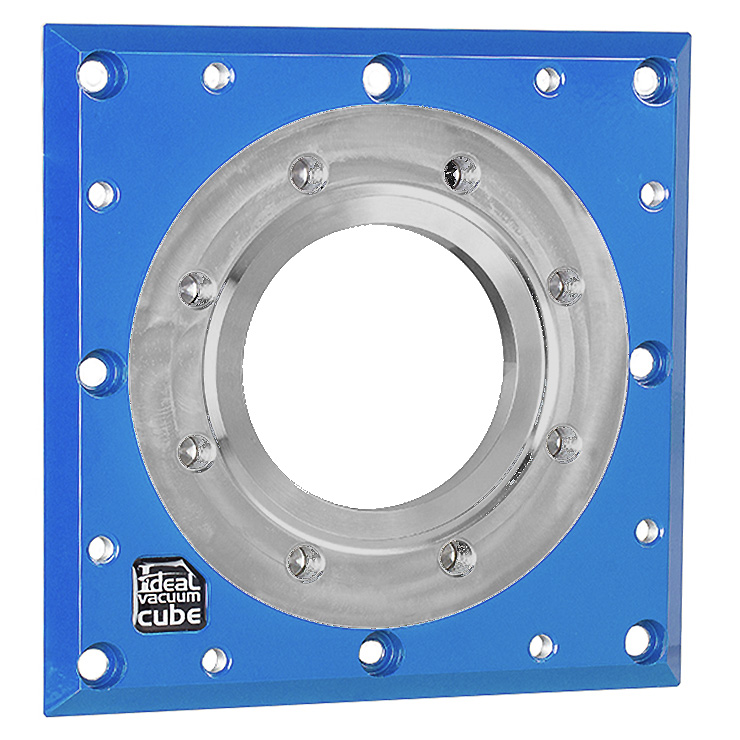

Ideal Vacuum Cube 6 x 6 Vacuum Chamber Plate With One Conflat CF 4.5 in. Port
In Stock: 34


NOT COMPATIBLE WITH COPPER GASKETS. USE ONLY WITH VITON CF GASKETS! This is an Ideal Vacuum Cube 6 x 6 inch plate with one CF 4.5" centered Conflat port. The plate is machined from 6061-T6 aluminum and powder coated blue. This Conflat CF ported plate has 5/16-24 UNF tapped holes for mounting a turbo pump or CF flanged tubing. This plate's Conflat port requires eight (8) 5/16-24 x 1.0" long, silver-plated, 12 point bolts (P1012250). The CF port is not compatible with metal gaskets. Use only Viton seals (P104343). Cube baseline vacuum is 1 x 10 Torr. Features:6 x 6 plate6061-T6 aluminumBlue powdercoatSingle CF 4.5" port with 5/16-24 UNF tapped holes

Condition: New



Product Number: P107300



Price: $188.59



Ideal Vacuum Cube 6 x 6 Vacuum Chamber Plate With One Conflat CF 4.5 in. Port Uncoated for Bakeout
In Stock: 5


NOT COMPATIBLE WITH COPPER GASKETS. USE ONLY WITH VITON CF GASKETS! This is an Ideal Vacuum Cube 6 x 6 inch plate with one CF 4.5" centered Conflat port. The plate is machined from 6061-T6 aluminum and is uncoated for bakeout to 150°C, the limit of the Viton sealing O-ring. This Conflat CF ported plate has 5/16-24 UNF tapped holes for mounting a turbo pump or CF flanged tubing. This plate's Conflat port requires eight (8) 5/16-24 x 1.0" long, silver-plated, 12 point bolts (P1012250). The CF port is not compatible with metal gaskets. Use only Viton seals (P104343). Cube baseline vacuum is 1 x 10 Torr. Features:6 x 6 plate6061-T6 aluminumUncoated for bakeout to 150°C

Condition: New



Product Number: P109366



Price: $188.59



Ideal Vacuum Cube 9 x 9 Vacuum Chamber Plate With One Conflat CF 6.0 in. Port
In Stock: 12


NOT COMPATIBLE WITH COPPER GASKETS. USE ONLY WITH VITON CF GASKETS! This is an Ideal Vacuum Cube 9 x 9 inch plate with one CF 6.0" port. The plate is machined from 6061-T6 aluminum and powder coated blue. This Conflat CF ported plate has 5/16-24 UNF tapped holes for mounting a turbo pump or CF flanged tubing. The plate's Conflat port requires eight (8) 5/16-24 x 1.0" long, silver-plated, 12 point bolts (P1012250). The CF port is not compatible with metal gaskets. Use only Viton seals (P104345). Cube baseline vacuum is 1 x 10 Torr. Features:9 x 9 plate6061-T6 aluminumBlue powdercoatSingle CF 6.0" port with 5/16-24 UNF tapped holesInternal optical breadboard

Condition: New



Product Number: P1010235



Price: $313.96

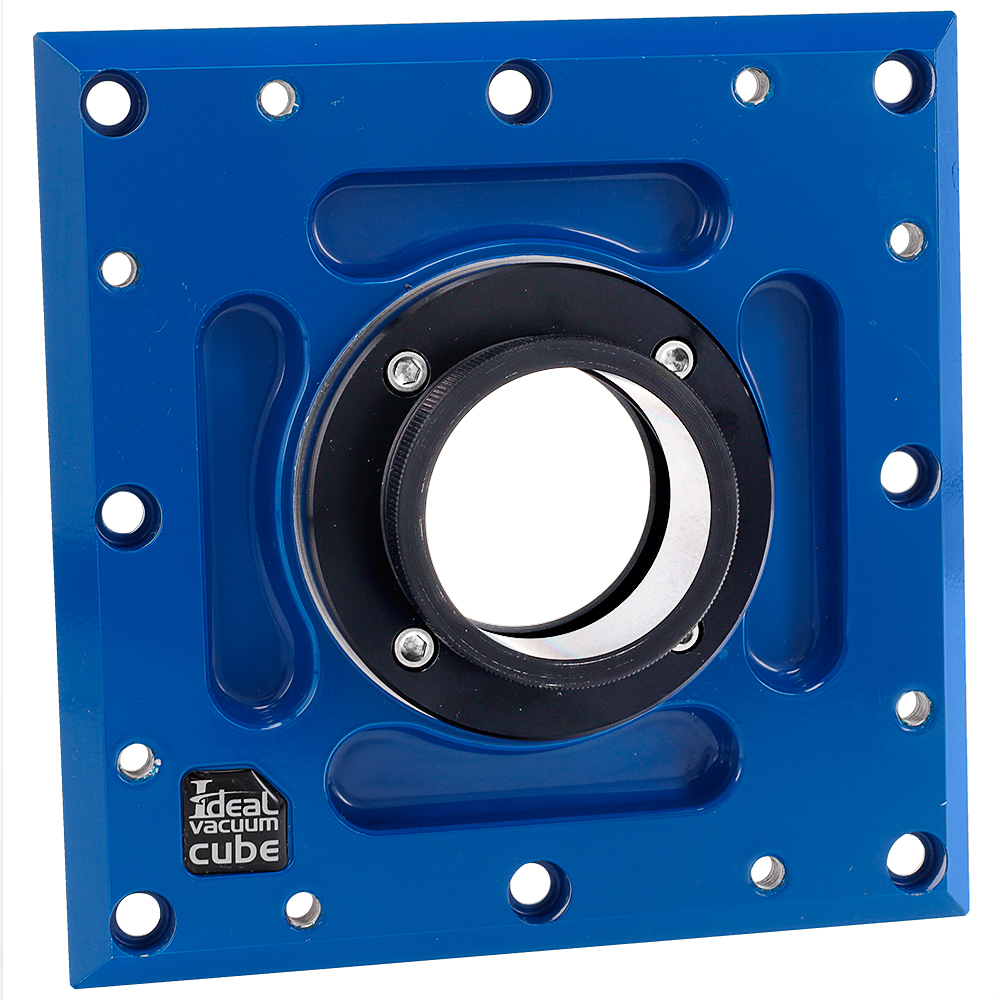

Ideal Vacuum Cube Viewing Window Plate Assembly for 6x6 Vacuum Chamber 3/8" Tempered Glass
In Stock: 18


This Ideal Vacuum Cube 6x6 inch vacuum chamber standard, low-iron, tempered glass viewing window plate assembly is designed to fit our 6x6x6 or 6x6x12 modular Cube chambers. The standard tempered glass window viewing plate assembly is a popular Cube option, commonly used for general, direct observation of roughing or high-vacuum chamber processes and can be used to facilitate optical alignments of chamber components, observe degassing of fluids, or used to help teach in-vacuo processes by direct observation. The glass material is 3/8" thick, tempered, low-iron, high-clarity glass. Surface quality and flatness is Q4 per ASTM 1036-06 and 1048-04. The low iron content of the glass results in it having a slight blueish tint. This economical glass is unsuitable for high power laser experiments.

Condition: New



Product Number: P106869



Price: $236.03



Ideal Vacuum Cube Viewing Window Plate Assembly for 6x6 Vacuum Chamber 3/8" Fused Quartz
In Stock: 8


This Ideal Vacuum Cube 6x6 inch vacuum chamber fused quartz viewing window plate assembly is designed to fit our 6x6x6 or 6x6x12 modular Cube chambers. The fused quartz window viewing plate assembly is often selected for experiments where improved optical clarity, extended wavelength transmissivity is required beyond the visible range, and where cost is a factor. Our fused quartz windows are manufactured with the highest quality natural quartz resulting in the highest levels of purity and lowest inclusion and bubble levels. Comparable to Heraeus TSC-3, these windows have improved transmittance, and a wider useful wavelength range than standard glass. Characteristics include low refractive index variations and low thermal expansion coefficient. Fused quartz is used for semiconductor applications such as plasma etch and deposition systems and recommended when low alkali and low aluminum content are specified. It is often used for transmissive optics in the visible and near-to-mid infrared wavelengths where a high laser damage threshold is required. Fused quartz has absorbtion bands in the 2600 to 2900 nm region, similar to fused silica but not as strong. It is unsuitable for UV work due to absorbtion in the 270 nm region.

Condition: New



Product Number: P1010570



Price: $453.50

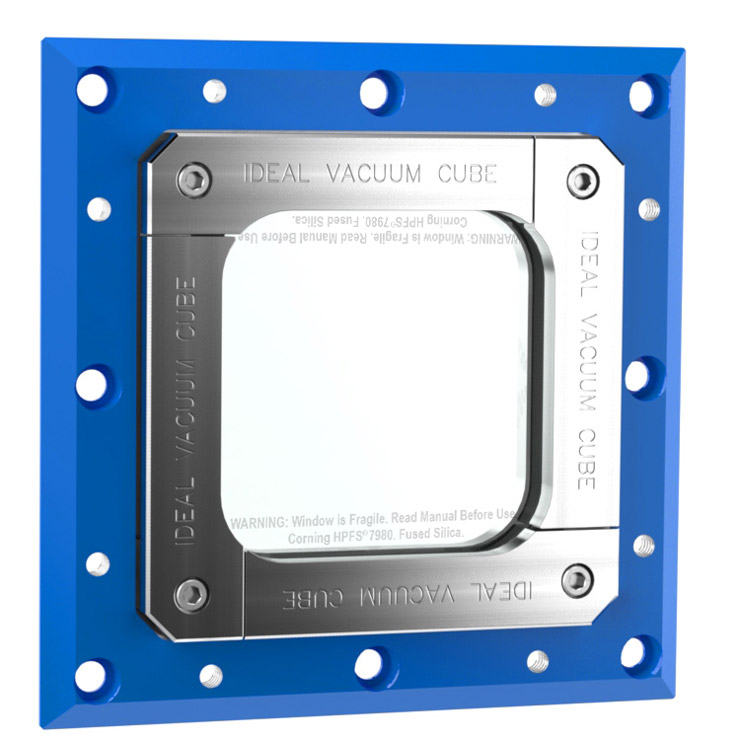

Ideal Vacuum Cube Viewing Window Plate Assembly for 6x6 Vacuum Chamber 3/8" Fused Silica
In Stock: 20


This Ideal Vacuum Cube 6x6 inch vacuum chamber fused silica viewing window plate assembly is designed to fit our 6x6x6 or 6x6x12 modular Cube chambers. The fused silica window viewing plate assembly is our premium viewing plate assembly and is selected for experiments where improved optical clarity and extended wavelength transmissivity, beyond the visible is required. Our high purity fused silica windows are ground and polished to optical grade on both sides with a total thickness variation (TTV) of

Condition: New



Product Number: P1010571



Price: $941.89



Ideal Vacuum Cube Replacement Window for 6x6 Viewing Window Plate, 3/8" Tempered Glass
Out of Stock
Expecting: 50
Arrival: 50 on 2025-01-23


This is a tempered glass replacement window for the Ideal Vacuum Cube 6x6 Viewing Window AssembIy. Use it to replace a scratched, hazed or discolored glass window. It replaces the tempered glass viewing window pane used on our 6x6x6 or 6x6x12 Cubes. The standard tempered glass window is commonly used for general, direct observation of roughing or high-vacuum chamber processes and can be used to facilitate optical alignments of chamber components, observe degassing of fluids, or used to help teach in-vacuo processes by direct observation. The glass material is 3/8" thick, tempered, low-iron, high-clarity glass. Surface quality and flatness is Q4 per ASTM 1036-06 and 1048-04. The low iron content of the glass results in it having a slight blueish tint. This economical glass is unsuitable for high power laser experiments.

Condition: New



Product Number: P1010572



Price: $62.70



Ideal Vacuum Cube Replacement Window for 6x6 Viewing Window Plate, 3/8" Fused Quartz
Out of Stock


This is a fused quartz replacement window for the Ideal Vacuum Cube 6x6 Viewing Window AssembIy. Use it to replace or upgrade a scratched, hazed or discolored glass window. It replaces the viewing window pane used on our 6x6x6 or 6x6x12 Cubes. Our fused quartz windows are manufactured with the highest quality natural quartz resulting in the highest levels of purity and lowest inclusion and bubble levels. Comparable to Heraeus TSC-3, these windows have improved transmittance, and a wider useful wavelength range than standard glass. Characteristics include low refractive index variations and low thermal expansion coefficient. Fused quartz is used for semiconductor applications such as plasma etch and deposition systems and recommended when low alkali and low aluminum content are specified. It is often used for transmissive optics in the visible and near-to-mid infrared wavelengths where a high laser damage threshold is required. Fused quartz has absorbtion bands in the 2600 to 2900 nm region, similar to fused silica but not as strong. It is unsuitable for UV work due to absorbtion in the 270 nm region.

Condition: New



Product Number: P1010573



Price: $397.69

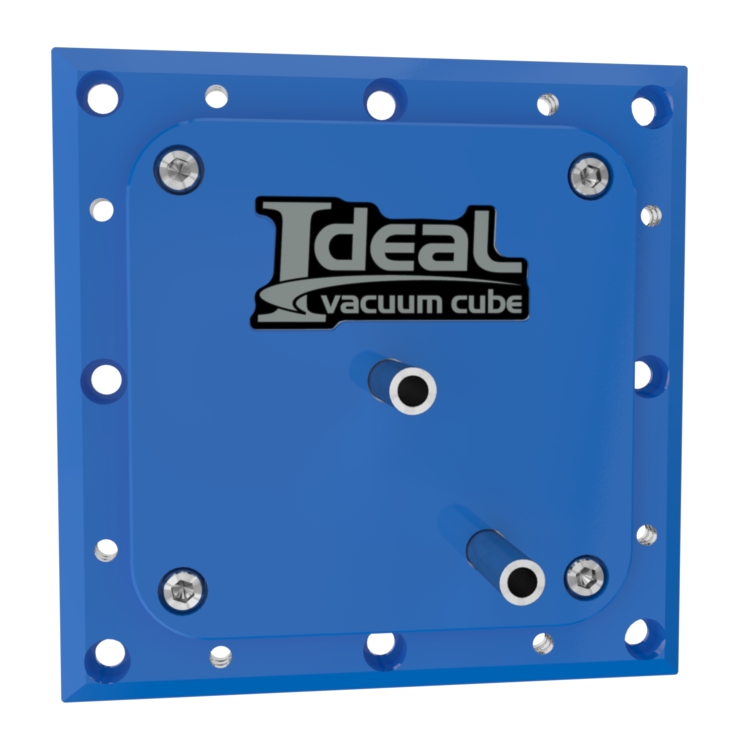

Ideal Vacuum Cube 6 x 6 Thermally Isolated TVAC Chamber Plate for Liquid Nitrogen LN2 Cryogenic Cooling and High Vacuum Trap
In Stock: 4


This is an Ideal Vacuum Cube 6 x 6 inch TVAC plate for cryogenic testing and for trapping condensable gas vapors under high vacuum such as water and solvents that outgas from components inside the vacuum. Without appropriate trapping, condensable vapors can intrude into the mechanical pump, limiting the ultimate base pressure of the pump to unacceptably high levels. This TVAC plate produces lower base pressures and faster pump down cycles. This plate may be operated at temperatures as low as -200°C (-328°F) The plate is mounted to the top of the Cube with the LN fill port oriented vertically. Once under vacuum, liquid nitrogen is poured into the fill port and enters the plate’s 0.14 liter internal fluid reservoir.

Condition: New



Product Number: P107301



Price: $1,126.75



Ideal Vacuum Cube Replacement Window for 6x6 Viewing Window Plate, 3/8" Fused Silica
In Stock: 51


This is a fused silica replacement window for the Ideal Vacuum Cube 6x6 Viewing Window AssembIy. Use it to replace or upgrade a scratched, hazed or discolored glass window. It replaces the viewing window pane used on our 6x6x6 or 6x6x12 Cubes. Our high purity fused silica replacement windows are ground and polished to optical grade on both sides with a total thickness variation (TTV) of

Condition: New



Product Number: P1010574



Price: $737.13



Ideal Vacuum Cube 6 x 6 inch Thermally Isolated TVAC Chamber Plate For Circulating Hot or Cold Fluids including Liquid Nitrogen LN2
Out of Stock


This is a thermally isolated Ideal Vacuum Cube 6 x 6 inch TVAC plate with 1/4” OD vacuum isolated fluid tubes. This plate allows the vacuum side of the plate to be thermally controlled by circulating hot or cold fluids, including LN through its stainless steel tubes and internal channels. The operating temperature range of this plate is 200°C to -200°C (392°F to -328°F). This Cube plate allows the Ideal Vacuum Cube to be used as a thermal vacuum or thermal shock vacuum chamber. It can also function as a chilled trap for chemical and high boiling point liquids. Multiple TVAC plates may be mounted to a Cube and plumbed together to enhance temperature control capability.

Condition: New



Product Number: P107302



Price: $1,758.19



Ideal Vacuum Cube 6 x 6 inch Non-Thermally Isolated TVAC Chamber Plate For Circulating Hot or Cold Fluids
In Stock: 12


This is a non-thermally isolated Ideal Vacuum Cube 6 x 6 inch TVAC plate with 3/8” OD fluid tubes. This plate allows the vacuum side of the plate to be thermally controlled by circulating hot or cold fluids through its stainless steel tubes and internal cavity. The operating range of this plate is 150°C to -26°C (302°F to -15°F). This thermal vacuum Cube plate allows the Ideal Vacuum Cube to be used as a thermal vacuum or thermal shock vacuum chamber. It can also function as a chilled trap for chemical and high boiling point liquids. Multiple TVAC plates may be mounted to a Cube and plumbed together to enhance temperature control capability. Fluid is commonly supplied by a recirculating heater or chiller such as those made by Thermo Scientific, Neslab, and Huber. Insulated supply and return hoses connect the heater/chiller system to the thermal plate with 3/8" OD tube fittings.

Condition: New



Product Number: P1010530



Price: $473.24



Ideal Vacuum Cube 6 x 6 TVAC Thermal Vacuum Chamber Heater Plate for up to 140 Degrees C
In Stock: 7


This Ideal Vacuum Cube 6 x 6 inch heater plate will safely provide up to 140°C of uniformly distributed heat to the vacuum side of the plate surface, through a 120VAC 160W heating element. This thermal vacuum plate expands the capabilities of the Ideal Vacuum Cube whereby the Cube can be used as a Thermal Vacuum Chamber (TVAC). Applications include thermal stability testing, surface coating and implantation, and damage testing under thermal load. Thermal Vacuum Chambers are often used to replicate or simulate the extreme conditions of outer space and are frequently employed in the testing of spacecraft and aerospace parts or components under a simulated space environment, and control outgassing for a giving process. Please note that the maximum allowable temperature using Viton O-rings is 150°C.

Condition: New



Product Number: P108319



Price: $473.24


*Regular Price: $530.25



Ideal Vacuum Cube, 6x6 Vacuum Chamber Plate for 1.0 in. Standard Optical Window
In Stock: 9


These Ideal Vacuum Cube 6x6 inch vacuum chamber plates are built to accommodate 1" or 25 mm diameter viewports with a thickness of 0.200" to 0.375" (sold separately and not included with this item). With the addition of a specific viewport lens, the entire plate effectively becomes an inexpensive and conveniently demountable viewport, quickly and easily swapped for a different viewport/plate combination. These plates use a series of Viton O-ring gaskets, operate down to 10-8 torr (10-11 Pa), and have a max bakeout temperature of 150° C. These viewport plates are designed to fit our 6x6x6 vacuum cubes (each cube require 6 plates). These viewport plates are build with our patent pending tapper seal technology which incorporates sloped sealing features to help prevent damage to the vacuum sealing surfaces. These Vacuum Cube plates are CNC milled from a single block of lightweight 6061-T6 Aluminum Alloy. This is the sale of a Ideal Vacuum Cube 6x6 inch viewport plate only (other glass lenses, plates, frames, and hardware are required and are sold separately).

Condition: New



Product Number: P108315



Price: $271.62



Ideal Vacuum Cube, 6x6 Vacuum Chamber Plate for 1.5 in. Standard Optical Window
In Stock: 15


These Ideal Vacuum Cube 6x6 inch vacuum chamber plates are built to accommodate any of a variety of 1.5 inch diameter viewports (sold separately and not included with this item). With the addition of a specific viewport lens, the entire plate effectively becomes an inexpensive and conveniently demountable viewport, quickly and easily swapped for a different viewport/plate combination. These plates use a series of Viton O-ring gaskets, operate down to 10-8 torr (10-11 Pa), and have a max bakeout temperature of 150° C. These viewport plates are designed to fit our 6x6x6 vacuum cubes (each cube require 6 plates). These viewport plates are build with our patented tapper seal technology which incorporates sloped sealing features to help prevent damage to the vacuum sealing surfaces. These Vacuum Cube plates are CNC milled from a single block of lightweight 6061-T6 Aluminum Alloy. This is the sale of a Ideal Vacuum Cube 6x6 inch viewport plate only (other glass lenses, plates, frames, and hardware are required and are sold separately).

Condition: New



Product Number: P108316



Price: $278.72



Ideal Vacuum Cube, 6x6 Vacuum Chamber Plate for 2.0 in. Standard Optical Window
In Stock: 18


These Ideal Vacuum Cube 6x6 inch vacuum chamber plates are built to accommodate any of a variety of 2.0 inch diameter viewports (sold separately and not included with this item). With the addition of a specific viewport lens, the entire plate effectively becomes an inexpensive and conveniently demountable viewport, quickly and easily swapped for a different viewport/plate combination. These plates use a series of Viton O-ring gaskets, operate down to 10-8 torr (10-11 Pa), and have a max bakeout temperature of 150° C. These viewport plates are designed to fit our 6x6x6 vacuum cubes (each cube require 6 plates). These viewport plates are build with our patented tapper seal technology which incorporates sloped sealing features to help prevent damage to the vacuum sealing surfaces. These Vacuum Cube plates are CNC milled from a single block of lightweight 6061-T6 Aluminum Alloy. This is the sale of a Ideal Vacuum Cube 6x6 inch viewport plate only (other glass lenses, plates, frames, and hardware are required and are sold separately).

Condition: New



Product Number: P108317



Price: $283.48



Ideal Vacuum Cube, 6x6 Vacuum Cube XY Stage Plate without Positioning Micrometers
Out of Stock
Arrival: 2 on 2025-01-23


These 6x6 Vacuum Cube Stage Plates allow dynamic fine location adjustment of your test piece within an evacuated Vacuum Cube. These plates permit 0.50” (13mm) of X and Y axis to travel over hardened steel linear bearings for precision motion and long life. The stage plate itself is spring tensioned in both axes, eliminating backlash when reversing travel direction. This sale does NOT include micrometer heads or motors allowing you total flexibility choosing your custom positioning solution. On the vacuum side, the plate and moving blocks are machined from 6061-T6 aluminum with vented Stainless Steel 304 or 316 fasteners, eliminating virtual leaks. Air-side metal surfaces are powder coated blue. Although the self-tensioning system allows this plate to be mounted in any orientation, the optimum loading direction is with the mic supporting the load due to gravity. The load limit when mounted flat is 4lbs, and 2lbs when mounted vertically.

Condition: New



Product Number: P108477



Price: $2,829.33

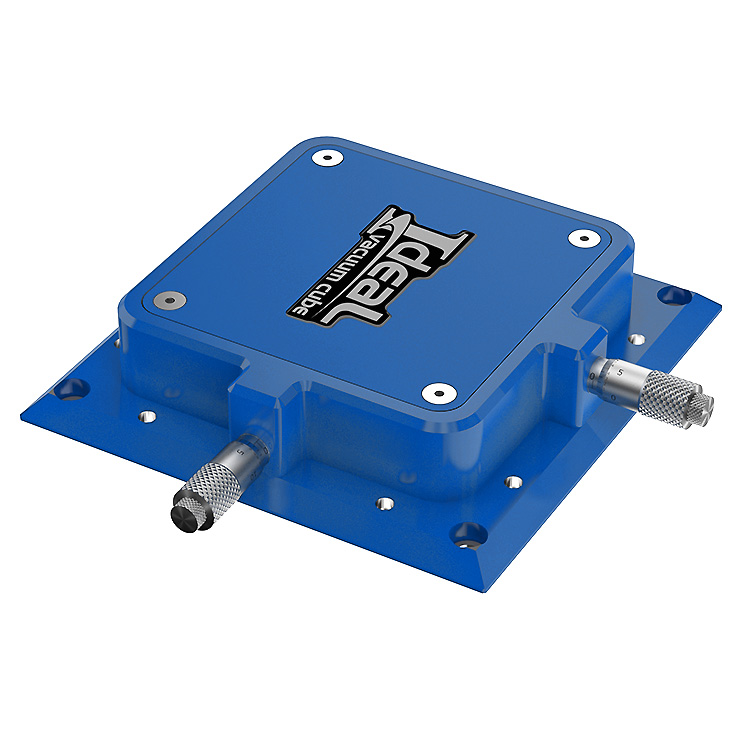

Ideal Vacuum Cube, 6x6 Vacuum Cube XY Stage Plate with Positioning Micrometers
Out of Stock
Arrival: 2 on 2025-01-23


These 6x6 Vacuum Cube Stage Plates allow dynamic fine location adjustment of your test piece within an evacuated Vacuum Cube. These plates permit 0.50” (13mm) of X and Y axis to travel over hardened steel linear bearings for precision motion and long life. The stage plate itself is spring tensioned in both axes, eliminating backlash when reversing travel direction. High quality Mitutoyo micrometer heads will move your target horizontally 0.025” for each complete revolution of the head, with repeatable positioning of 0.0001”, through high performance viton shaft seals. The heads are also compatible with high precision motor actuators if needed (please call for more information). On the vacuum side, the plate and moving blocks are machined from 6061-T6 aluminum with vented Stainless Steel 304 or 316 fasteners, eliminating virtual leaks. Air-side metal surfaces are powder coated blue. Although the self-tensioning system allows this plate to be mounted in any orientation, the optimum loading direction is with the mic supporting the load due to gravity. The load limit when mounted flat is 4lbs, and 2lbs when mounted vertically.

Condition: New



Product Number: P108247



Price: $3,396.33



Ideal Vacuum Cube, 6x6 Vacuum Cube XYZ Stage Plate without Positioning Micrometers
In Stock: 3


These 6x6 Vacuum Cube Stage Plates allow dynamic fine location adjustment of your test piece within an evacuated Vacuum Cube. These plates permit 0.50” (13mm) of X and Y axis and 0.25" of Z axis travel over hardened steel linear bearings for precision motion and long life. The stage plate itself is spring tensioned in all 3 axes, eliminating backlash when reversing travel direction. This sale does NOT include micrometer heads or motors allowing you total flexibility choosing your custom positioning solution. On the vacuum side, the plate and moving blocks are machined from 6061-T6 aluminum with vented Stainless Steel 304 or 316 fasteners, eliminating virtual leaks. Air-side metal surfaces are powder coated blue. Although the self-tensioning system allows this plate to be mounted in any orientation, the optimum loading direction is with the mic supporting the load due to gravity. The load limit when mounted flat is 4lbs, and 2lbs when mounted vertically.

Condition: New



Product Number: P108478



Price: $3,685.50

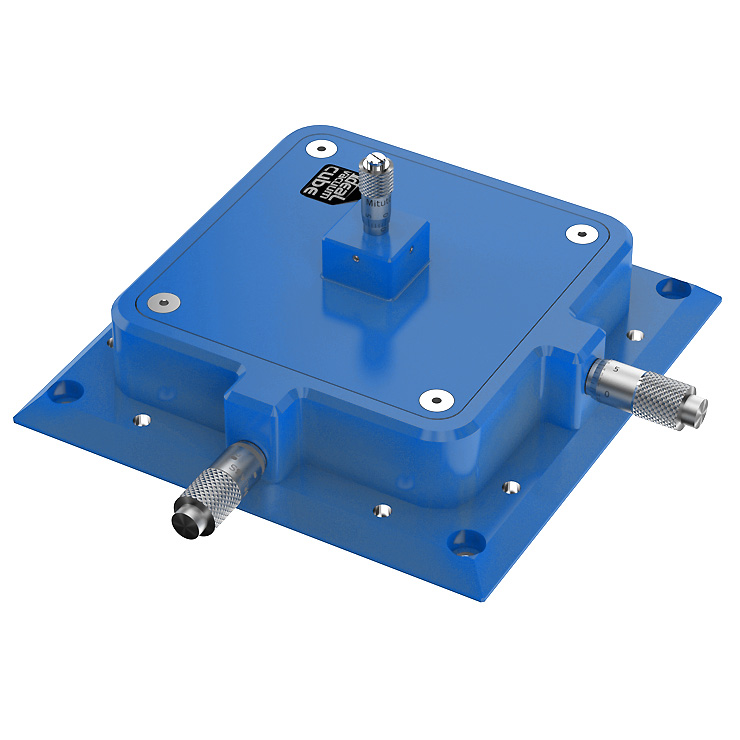

Ideal Vacuum Cube, 6x6 Vacuum Cube XYZ Stage Plate with Mitutoyo Positioning Micrometers
Out of Stock
Arrival: 4 on 2025-01-23


These 6x6 Vacuum Cube XYZ Stage Plates allow dynamic fine location adjustment of your test piece within an evacuated Vacuum Cube. These plates permit 0.50” (13mm) of X and Y axis travel and 0.25" of Z axis travel over hardened steel linear bearings for precision motion and long life. The stage plate itself is spring tensioned in all three axes, eliminating backlash when reversing travel direction. High quality Mitutoyo micrometer heads will move your target horizontally 0.025” for each complete revolution of the head, with repeatable positioning of 0.001”, through high performance viton shaft seals. The heads are also compatible with high precision motor actuators if needed (please call for more information). On the vacuum side, the plate and moving blocks are machined from 6061-T6 aluminum with vented Stainless Steel 304 or 316 fasteners, eliminating virtual leaks. Air-side metal surfaces are powder coated blue. Although the self-tensioning system allows this plate to be mounted in any orientation, the optimum loading direction is with the mic supporting the load due to gravity. The load limit when mounted flat is 4lbs, and 2lbs when mounted vertically.

Condition: New



Product Number: P108248



Price: $4,139.10



Ideal Vacuum Cube 6 x 6 in. Gate Valve Adapter Plate Kit ISO-F 63
In Stock: 19


This is an ISO-F 63 gate valve adapter plate kit for the 6 x 6 Ideal Vacuum Cube. This adapter allows the compact connection of an ISO-F 63 gate valve (with tapped mounting holes) to an Ideal Vacuum Cube™, without additional plumbing or fittings. The adapter consists of two plates. One plate has our patented Taper-Seal™ O-ring seal and is mounted to the Cube frame. The other plate is mounted to the gate valve’s threaded flange. An ISO 63 centering ring with O-ring is sandwiched between the two plates which are then screwed together to make the seal. This adapter kit can be used to isolate a turbomolecular pump from the chamber. It creates the shortest possible pumping path for maximum high vacuum performance.

Condition: New



Product Number: P108743



Price: $187.22



Ideal Vacuum Cube 6 x 6 in. Gate Valve Adapter Plate Kit ISO-F 100
In Stock: 12


This is an ISO-F 100 gate valve adapter plate kit for the 6 x 6 Ideal Vacuum Cube. This adapter allows the compact connection of an ISO-F 100 gate valve (with tapped mounting holes) to an Ideal Vacuum Cube™, without additional plumbing or fittings. The adapter consists of two plates. One plate has our patented Taper-Seal™ O-ring seal and is mounted to the Cube frame. The other plate is mounted to the gate valve’s threaded flange. An ISO 100 centering ring with O-ring is sandwiched between the two plates which are then screwed together to make the seal. This adapter kit can be used to isolate a turbomolecular pump from the chamber. It creates the shortest possible pumping path for maximum high vacuum performance.

Condition: New



Product Number: P108744



Price: $208.14
