Ideal Vacuum Cube 6 x 6 inch Thermally Isolated TVAC Chamber Plate For Circulating Hot or Cold Fluids including Liquid Nitrogen LN2
Ideal Vacuum Cube, 6 x 6 inch Thermal Vacuum Chamber Plate For Circulating Hot or Cold Fluids.
This is a thermally isolated Ideal Vacuum Cube 6 x 6 inch TVAC plate with 1/4” OD vacuum isolated fluid tubes. This plate allows the vacuum side of the plate to be thermally controlled by circulating hot or cold fluids, including LN2 through its stainless steel tubes and internal channels. The operating temperature range of this plate is 200°C to -200°C (392°F to -328°F).

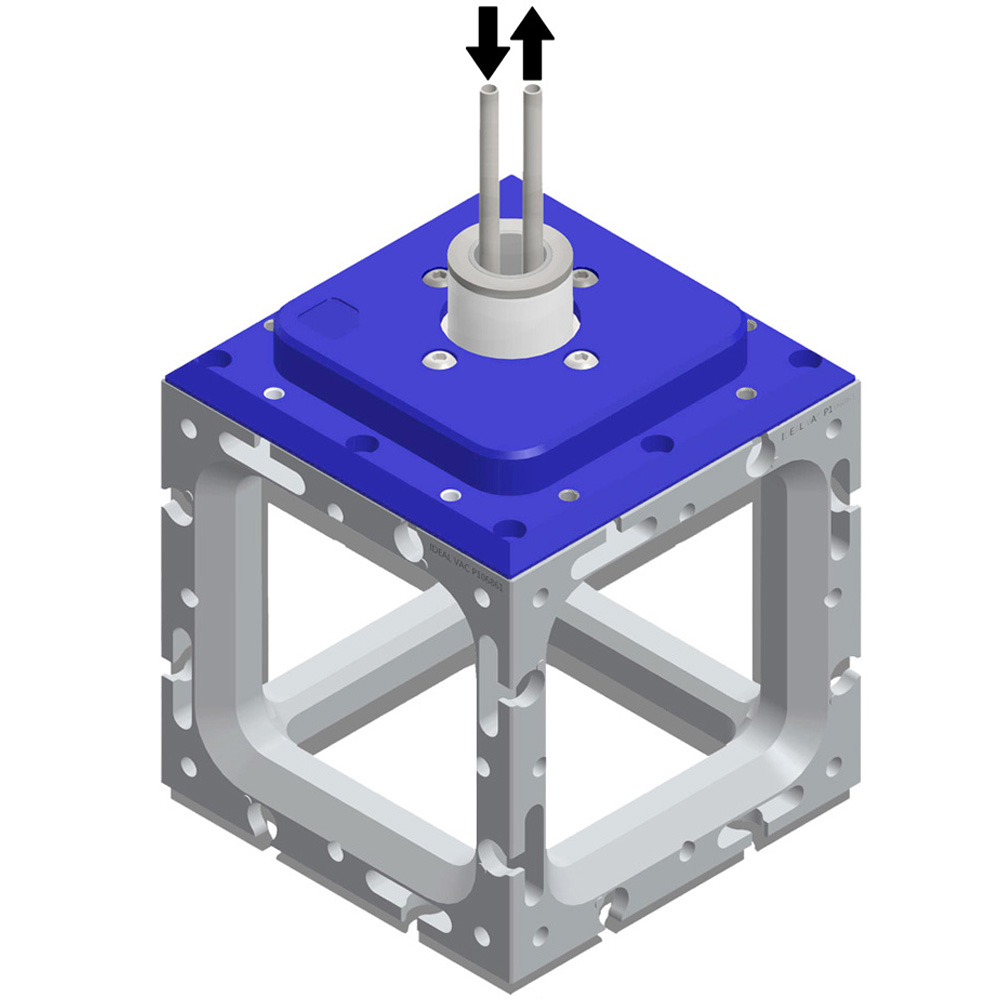

This Cube plate allows the Ideal Vacuum Cube to be used as a thermal vacuum or thermal shock vacuum chamber. It can also function as a chilled trap for chemical and high boiling point liquids. Multiple TVAC plates may be mounted to a Cube and plumbed together to enhance temperature control capability.
Fluid is commonly supplied by a recirculating heater or chiller such as those made by Thermo Scientific, Neslab, and Huber. Insulated supply and return hoses connect the heater/chiller system to the thermal plate with 1/4" OD tube fittings.

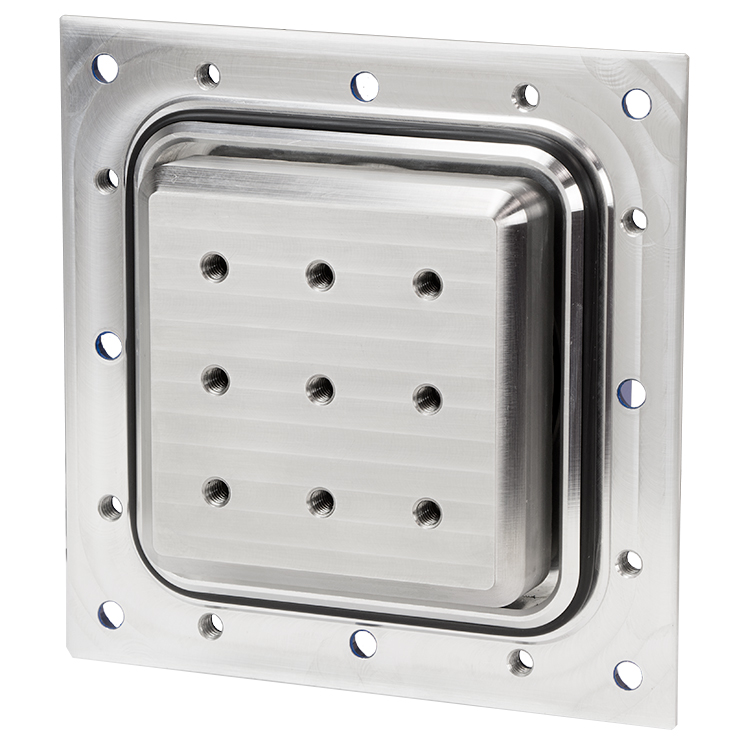

The core of the plate is made of 304L stainless steel and has an optical breadboard on the vacuum side with a 3.0" x 3.0" temperature-controlled area. The plate's thermally isolated core allows it to be operated between 200°C to -200°C (392°F to -328°F) without compromising vacuum seal integrity. The plate is designed to occupy minimal volume within the Cube envelope and may be mounted in any orientation.
Features:
6" x 6" plate size
Blue powder coated 6061-T6 aluminum plate
1/4” OD stainless steel supply and return tubes
Operating temperature range 200°C to -200°C (392°F to -328°F)
Stainless steel vacuum isolated3.0 x 3.0" temperature-controlled core
3.0" x 3.0" temperature-controlled core
Internal optical breadboard
Mounts in any orientation
Directly mounts to frame size:
6 x 6 x 6
6 x 6 x 12
6 x 6 x 6 hexagon
6 x 6 x 12 hexagon
6 x 6 x 12 octagon
This plate can also be mounted on any 9x9 or 12x12 plate with a plate adapter kit.
Press ESC to Close
The Ideal Vacuum CubeTM is a unique, modular, light weight, chamber system, capable of high vacuum to 1 x 10-7 Torr. The Cube system is conceived to enable creativity and design flexibility in vacuum chamber system construction and limited only by your imagination.
The core of an Ideal Vacuum Cube modular chamber system is the Cube frame, machined from a single block of 6061-T6 aluminum alloy and reinforced with stainless steel threaded inserts. Many basic frame configurations are available and multiple Cubes can be joined together to create a virtually unlimited variety of long or odd-shaped chamber shapes. The Cube’s light weight aluminum construction makes it easy to transport around the lab or mounted to an optical table.
Cube plates are mounted with screws to each side of the Cube frame and sealed using our patented Taper-SealTM design, which provides protection of vacuum sealing surfaces and O-rings from damage or contamination.
An extensive number of interchangeable Cube plates are available and one or more plates can be swapped easily when chamber reconfiguration is needed. Plates are available with single and multiple port KF, CF, and ISO flanged plates for connections and feedthroughs, viewing windows and doors, and a variety of specialty plates for thermal and optical experiments. Most plates are machined from 6061-T6 aluminum (unless otherwise indicated) and include an optical breadboard with 1/4-20 mounting threads spaced on a 1” x 1” standard grid on the plate’s vacuum side for fastening hardware and test objects. Plates may also have mounting threads on the exterior side for mounting accessories. Plates are typically machined from aluminum and receive a blue powder-coated outside finish which makes them both attractive and durable.
The modular nature of the Ideal Vacuum Cube allows the designer to configure a chamber to their unique requirements and reconfigure it at any time – all without the cost, weight, time, and limitations of an application-specific welded chamber.
Ideal Spectroscopy offers 3D CAD models in Solidworks (SLDPRT), STP, & STEP formats. For those without CAD software a free trial 3D model viewer with measurement capabilities can be
downloaded here:
IVP Cube Plate Installation Manual.pdf
eDrawings Viewer For Windows
