Ideal Vacuum Cube 6 x 6 Vacuum Chamber Plate With One Conflat CF 3.375 in. Port Uncoated for Bakeout
Ideal Vacuum Cube 6 x 6 Vacuum Chamber Plate With One Conflat CF 3.375 in. Port Uncoated for Bakeout.
NOT COMPATIBLE WITH COPPER GASKETS. USE ONLY WITH VITON CF GASKETS!

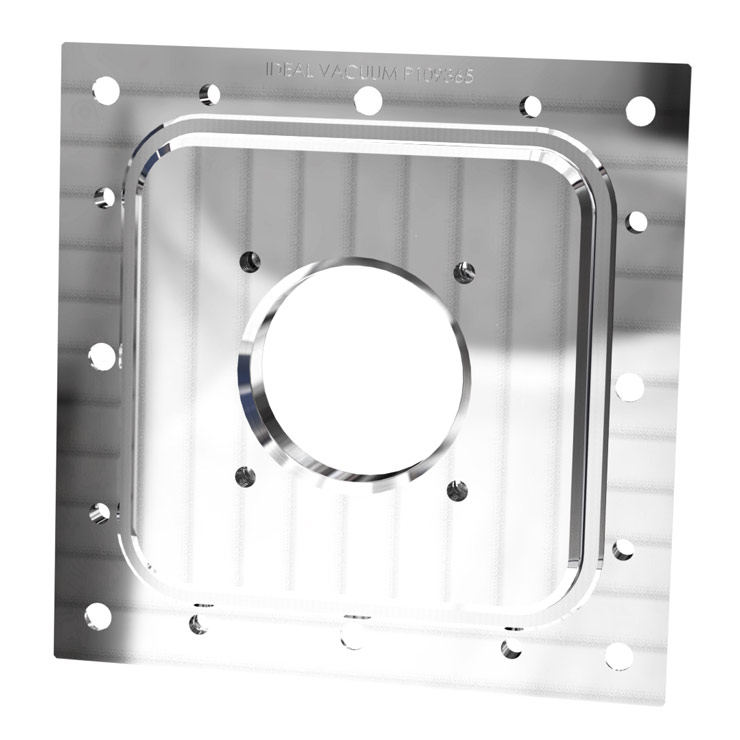

This is an Ideal Vacuum Cube 6 x 6 inch plate with one CF 3.375" centered Conflat port. The plate is machined from 6061-T6 aluminum and is uncoated for bakeout to 150°C, the limit of the Viton sealing O-ring.
This Conflat CF ported plate has 5/16-24 UNF tapped holes for mounting a turbo pump or CF flanged tubing. This plate's Conflat port requires eight (8) 5/16-24 x 1.0" long, silver-plated, 12 point bolts (P1012250). The CF port is not compatible with metal gaskets. Use only Viton seals (P104342). Cube baseline vacuum is 1 x 10-7 Torr.
Features:
6 x 6 plate
6061-T6 aluminum
Uncoated for bakeout to 150°C
Single CF 3.375" port with 5/16-24 UNF tapped holes
No internal optical breadboard
Mounts in any orientation
Directly mounts to frame size:
6x6x6
6x6x12
6x12x12
6x6x6 hexagon
6x6x12 hexagon
6x6x12 octagon
This plate can also be mounted on any 9x9 or 12x12 plate with a plate adapter kit.
Press ESC to Close
The Ideal Vacuum CubeTM is a unique, modular, light weight, chamber system, capable of high vacuum to 1 x 10-7 Torr. The Cube system is conceived to enable creativity and design flexibility in vacuum chamber system construction and limited only by your imagination.
The core of an Ideal Vacuum Cube modular chamber system is the Cube frame, machined from a single block of 6061-T6 aluminum alloy and reinforced with stainless steel threaded inserts. Many basic frame configurations are available and multiple Cubes can be joined together to create a virtually unlimited variety of long or odd-shaped chamber shapes. The Cube’s light weight construction makes it easy to transport around the lab or mounted to an optical table.
Cube plates are mounted with screws to each side of the Cube frame and sealed using our patented Taper-SealTM design, which provides protection of vacuum sealing surfaces and O-rings from damage or contamination.
An extensive number of interchangeable Cube plates are available and single or multiple plates can be swapped easily when chamber reconfiguration is needed. Plates are available with single and multiple port KF, CF, and ISO flanged plates for connections and feedthroughs, viewing windows and doors, and a variety of specialty plates for thermal and optical experiments. Most plates include an optical breadboard with 1/4-20 mounting threads spaced on a 1” x 1” standard grid on the plate’s vacuum side for fastening hardware and test objects. Plates may also have mounting threads on the exterior side for mounting accessories. Plates are typically machined from aluminum and receive a blue powder-coated outside finish which makes them both attractive and durable.
The modular nature of the Ideal Vacuum Cube allows the designer to configure a chamber to their unique requirements and reconfigure it at any time – all without the cost, weight, time, and limitations of an application-specific welded chamber.
Ideal Spectroscopy offers 3D CAD models in Solidworks (SLDPRT), STP, & STEP formats. For those without CAD software a free trial 3D model viewer with measurement capabilities can be
downloaded here:
