Condition:
  New
Part Number:
  P1013706
Warranty:
  Against Product Defect

Available Now:
1  

RoHS Compliance Sticker


$3,543.75


Print Version

FerroTec Hollow Shaft, 7 Inch Ferro Flange Mount, Ferrofluidic seal, Rotary Feedthrough, Model HS-1500-SLFBC. PN: 103360


Ferrotec’s Hollow Shaft, 7 Inch Ferro Flange Mount, Ferrofluidic seal, Rotary Feedthrough.
Ferrotec Model HS-1500-SLFBC, PN: 103360.

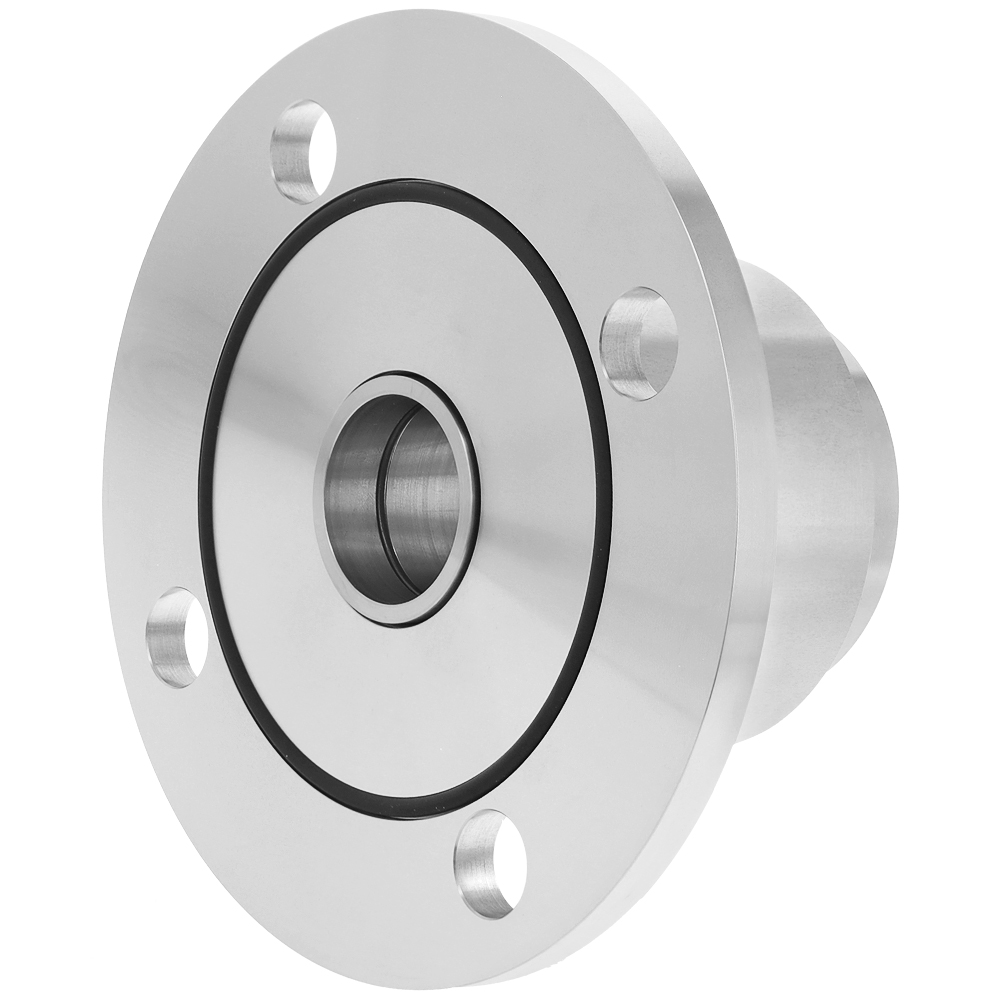

This is a Ferrotec hollow shaft rotary feedthrough with 7 inch diameter Ferro flange. The shaft diameter is 1.5 inches, 0.38 inches flange thickness, overall housing length is 3.0 inches. The starting torque at 100 rpm is 96.9 in-oz, and a running torque at 100 rpm of 57.2 in-oz. The limiting speed is 2320 rpm.

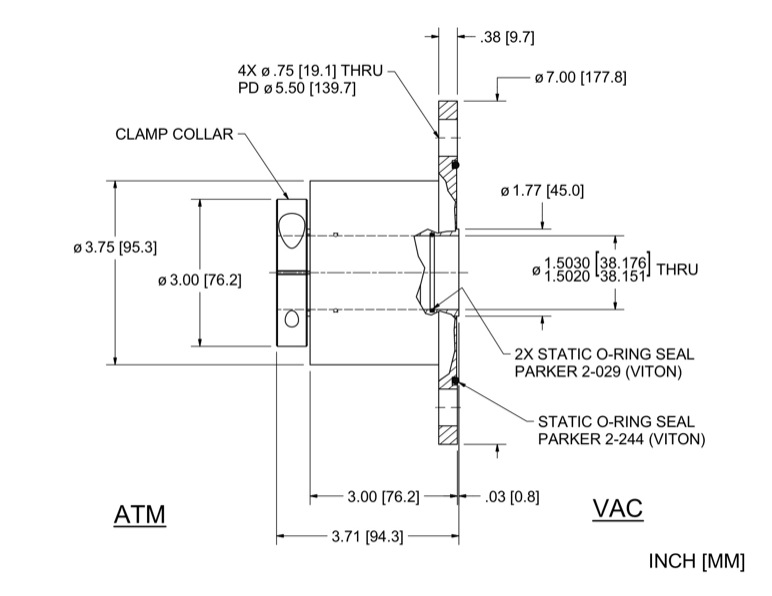

The HS-1500-SLFBC vacuum rotary feedthrough uses Ferrotec’s standard hydrocarbon-based ferrofluid, specifically optimized for introducing rotary motion with a magnetic liquid hermetic seal in most Standard environments. The HS-1500-SLFBC vacuum rotary feedthrough features a Hollow shaft with Ferro Flange mounting. Dimensional details are specified below. For precision measurement specifications, refer to the Spec Control Drawing.



Press ESC to Close


PDF Logo RoHS Compliance Download

PDF Logo Ferrotec P1013706 data sheet

Ideal Spectroscopy offers 3D CAD models in Solidworks (SLDPRT), STP, & STEP formats. For those without CAD software a free trial 3D model viewer with measurement capabilities can be downloaded here:

E-drawing LogoeDrawings Viewer For Windows
E-drawing LogoeDrawings Viewer For MAC.
