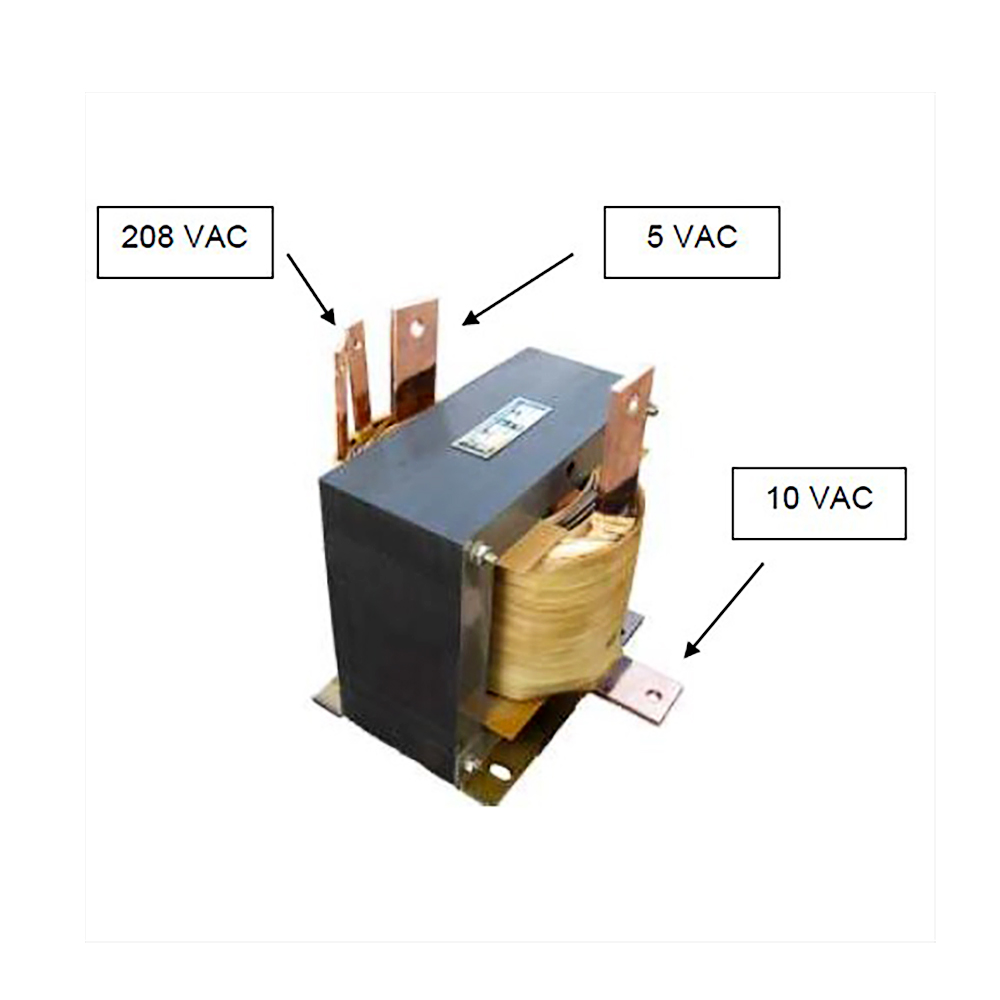

Ideal Vacuum Thermal Evaporation PVD, High Current Center Tapped Transformer, 4kVA, 1PH, 60 Hz, Primary: 208 VAC, 20 A, Secondary 5/10 VAC, 400 A Max, Open Core and Coil

This is a High Current Center Tapped Transformer, 4kVA, 1PH, 60 Hz, Primary: 208 VAC, 20 A, Secondary 5/10 VAC, 400 A Max, for Open Core and Coil Applications in Thermal Evaporation PVD Coating Machines.

Specifications

• Transformer: 4 kVA, 1PH, 60 Hz
• Primary: 208 VAC, 20 Amps
• Secondary: 5/10 VAC, 400 Amps

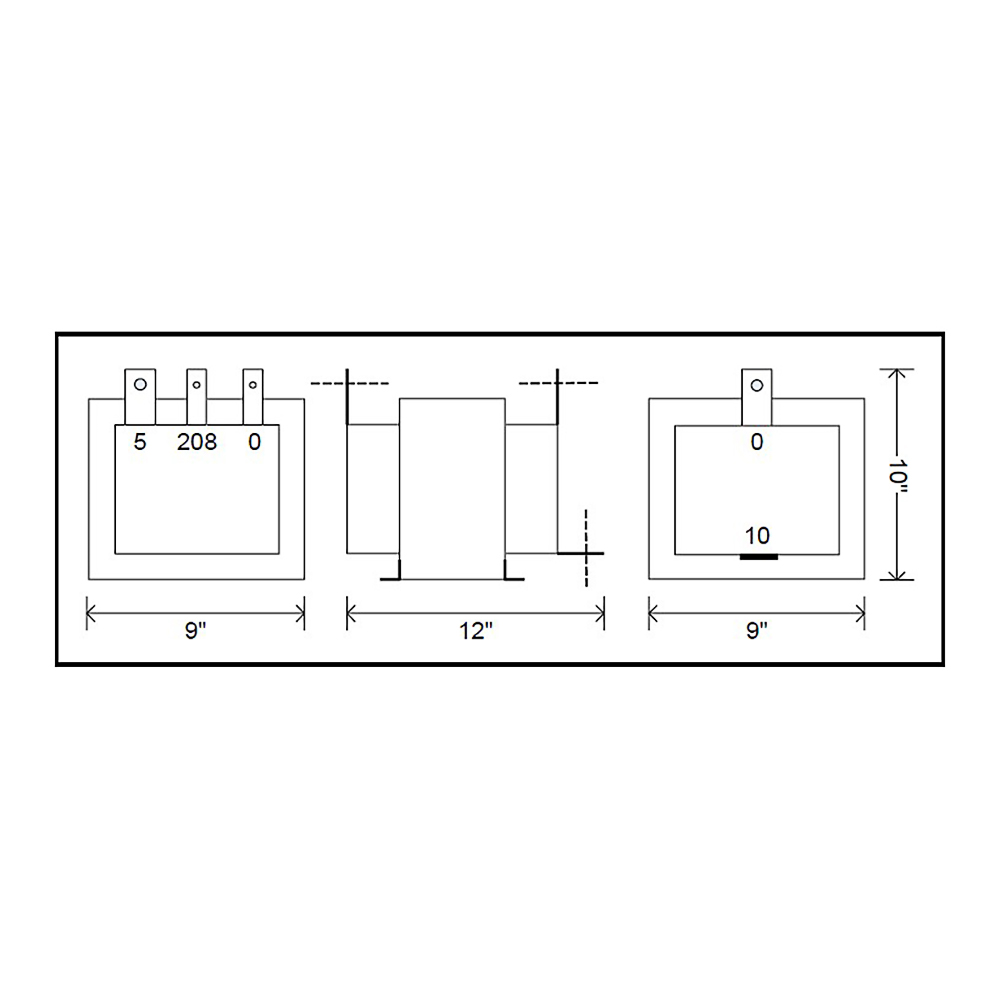

• Open Core and Coil: 10" H x 9" W x 12" D
• Primary bus bars are 1/8 x 5/8 Inch
• Secondary bus bars are 1.5" x 0.25"
• Copper winding construction

For detailed specifications and additional information, refer to the user manual and brochure available in the product's related downloads section.
