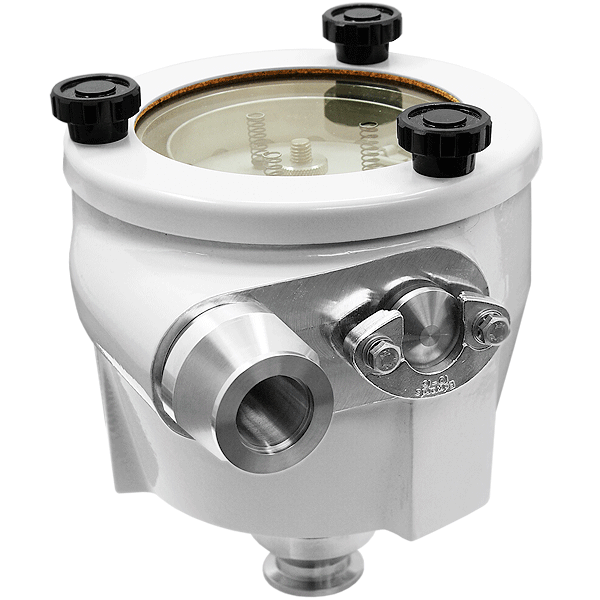

Edwards ITC20K Vacuum Pump Inlet Chemical Trap, KF25, Part Number A444-10-000
NEW Edwards ITC20K Inlet Chemical Trap - KF25 (Edwards Part Number A444-10-000)
The Edwards ITC20K Series Chemical Trap Provides the following benefits:
Protection against various aggressive or heavy lacquer forming vapors, which may attack the pump or contaminate pump oil.
Prevent high molecular weight vapors (such as might arise in a resin treatment plant), from reaching the pump. These vapors could cause lacquering or clogging.
The standard sorbent charcoal (activated carbon), has relatively high trapping properties (absorbs around 25% of its own weight), even when large amounts of water vapor are being pumped.
DOES NOT Come with sorbent media charcoal (activated carbon) charge. Carbon charge size for this unit is 0.4 kg. Comes with KF25 clamp, centering ring and o-ring. All replacement activated carbon sorbent media for this Chemical Trap is sold on this website. 0.5 kg and 3 kg charcoal (activated carbon) containers are available on this website. For complete specifications download instruction manual.....see below (AVAILABLE DOWNLOADS)
Fit & Size:
Fits Edwards RV3, RV5, RV8, RV12, E2M2, E2M5, E2M8, E2M12, E1M18, E2M18, E2M28 and E2M30 Rotary Vane Oil Sealed Vacuum Pumps.
KF25 inlet, KF25 outlet.
Weight 3.5 kg.
Edwards Part Number A444-10-000
