Home > > > Adaptive Reducing Cross ISO-100 to KF-25, ISO MF Interface, LF100 to KF25, Stainless Steel

Condition:

New

Part Number:

P103451

Warranty:

Against Product Defect
Out of Stock
Expecting: 4
Anticipated Arrival: 3 on 2025-01-22

RoHS Compliance Sticker

$321.33

Print Version

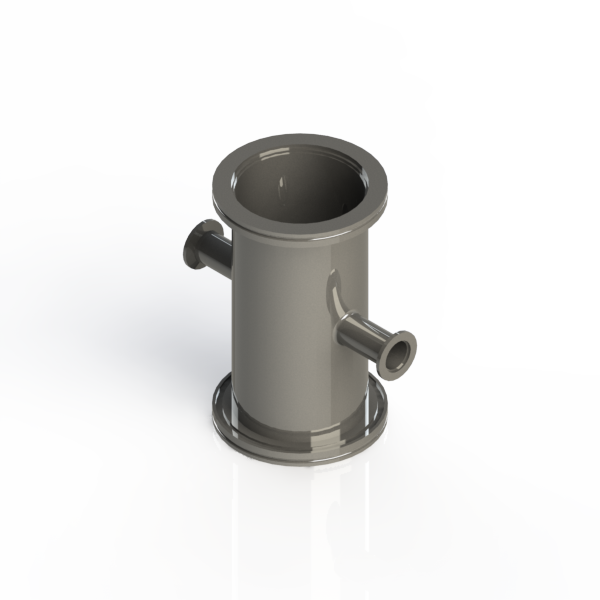

Adaptive Reducing Cross ISO-100 to KF-25, ISO MF Interface, LF100 to KF25, Stainless Steel

Adaptive Reducing Cross ISO-100 to KF-25, ISO MF Interface, LF100 to KF25, Stainless Steel

These ISO 100 to KF-25 Adaptive Reducer Cross vacuum fittings follow ISO-KF and LF standards and have a flange size of ISO LF100 to NWKF-25. They are commonly used to build vacuum plumbing and process systems. They are often called quick flange fittings on the small side and large flange fittings on the large size. (please see top far right figure for connection instructions - click to enlarge). They are made of corrosive resistant 304L stainless steel.

Reducer Cross ISO 100 to KF-25
ISO-KF Flange Cross Size: LF-100 to NW-25
Common Dimensions: A= 4.125"(104.9mm), A= 4.0"(101.6mm)
Tube size: ISO LF-100 4.0", NWKF-25 1.0"

Press ESC to Close

RoHS Compliance Download

P103451.sldprt

P103451.step

Ideal Spectroscopy offers 3D CAD models in Solidworks (SLDPRT), STP, & STEP formats. For those without CAD software a free trial 3D model viewer with measurement capabilities can be downloaded here:

eDrawings Viewer For Windows
eDrawings Viewer For MAC.
