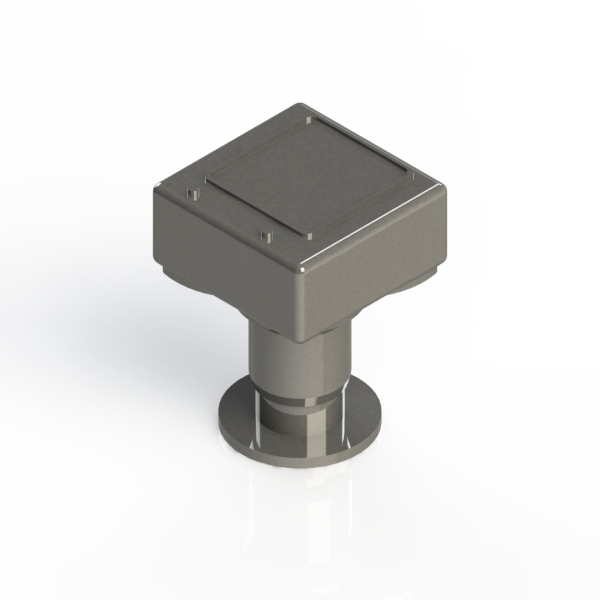

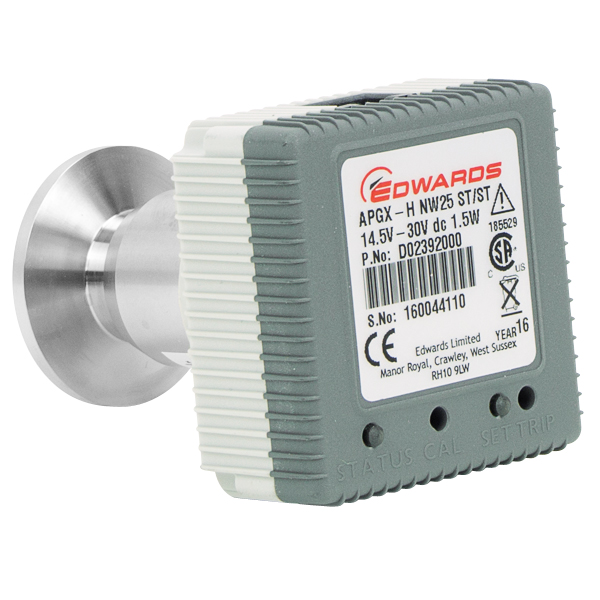

Edwards APGX-H Active Linear Convection Vacuum Gauge NW25, KF25, SS 10-4 Torr D02392000

The Edwards Linear Convection Vacuum Gauge has a wide measuring range from 1000 to 2.3 X 10^-4 Torr. The use of convection technology ensures accuracy and sensitivity are maintained to the top of the range maintained to the top of the pressure range compared to conventional Pirani gauges which are not as accurate above 100 mbar. They also have a user replaceable sensor tube. The gauge is compact and may be mounted in any orientation, simplifying installation where space is limited. The gauge incorporates a setpoint and two LEDs, which indicate setpoint and gauge status.

The new Edwards gauges are compatible with all Edwards TIC, AGD, ADC instrument controllers and other active gauge controllers and displays. They are also CSA, C/US approved as well as fully RoHS compliant due to their lead-free construction. Pressure range from 1000 to 2.3 X 10^-4 Torr. Signal cable and controller not supplied. For instruction manual .pdf on Edwards APGX-H series gauges see to the left DOWNLOADS

Features Include:

• Easy Access to signal cable with compact enclosure
• Consistent measuring accuracy
• Setpoint and two LEDs, indicate gauge status

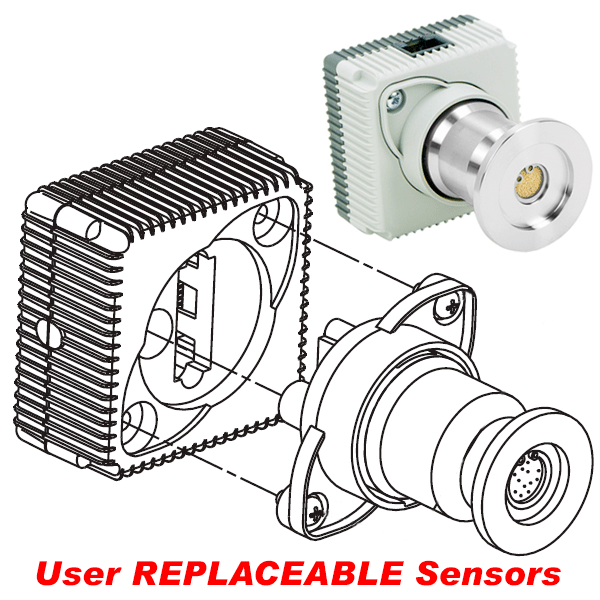

• User replaceable tubes
• Calibration data held in tube
• Pressure range 1000 to 2.3 X 10^-4 Torr.
