Condition:
  New
Part Number:
  P106128
Warranty:
  Edwards Warranty

Available Now:
2  



$2,307.11


Regular Price: $2,714.25

On Sale Flyer
Print Version

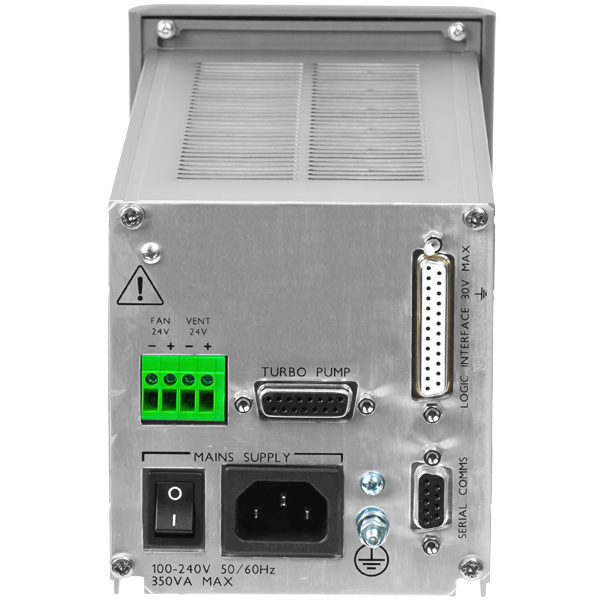

Edwards 100W TIC Turbo Instrument Controller Without Vacuum Gauge Support Used With nEXT Turbo Pumps. PN: D39711000


Edwards 100W TIC Turbo Instrument Controller Without Vacuum Gauge Control, for nEXT Turbo Pumps.
Edwards Part Number: D39711000.

This Edwards 100W TIC Turbo Instrument Controller can control and power a nEXT85D turbo pump, and is recommended to control nEXT730D, nEXT930D, or nEXT1230H turbo pumps. This controller does not have active gauge support and is Edwards part number D39711000.

Edwards TIC Turbo Instrument Controllers are a series of 100W and 200W compact controllers which can be used with any Edwards nEXT turbo pump. The TIC connects to, and controls, the turbo pump through the pump's attached DB15 serial cable. Through the same cable, the TIC is able to supply 24 VDC pump power to the smaller nEXT pumps. TIC controllers feature a large, clear graphics display, easy-to-use control interface via a touch sensitive keypad, and a DB9 RS232/485 interface for control and data monitoring on a remote PC with user supplied software. TIC's require 100-240 VAC input power and can be rack mounted or used on a benchtop. The TIC does not come with an input power cable (we suggest part number P106129). All TIC variants have support for a forced air cooling fan and a solenoid operated vent valve through a Phoenix 4 pin connector (mating end is supplied with the TIC). When connected through the DB25 logic interface to an Edwards Relay Box (part number P106081), the TIC can also control a backing pump, flange heater band, and a 24 VDC backing line valve. TIC controllers are available with or without active gauge control. Supported gauges are APG, AIM, ASG, or WRG series gauges (IGC and Barocel models are not supported).

About the 100W TIC Turbo Instrument Controller
  • TIC Controller, 100W, no controls for active gauges, part number D39711000
  • TIC Controller, 100W, controls up to 3 active gauges, part number D39721000
  • Controls AND can supply power to nEXT85D turbo pumps
  • Recommended to control nEXT730D, nEXT930D, or nEXT1230H turbo pumps
  • Use Relay Box (P106081) to control backing pump, heater band and backing isolation valve

About the 200W TIC Turbo Instrument Controller
  • TIC Controller, 200W, no controls for active gauges, part number D39712000
  • TIC Controller, 200W, controls up to 3 active gauges, part number D39722000
  • Controls AND can supply power to nEXT230D, nEXT300D, or nEXT400D turbo pumps
  • Faster ramp speed of nEXT85D turbo pumps (compared to 100W TIC)
  • Use Relay Box (P106081) to control backing pump, heater band and backing isolation valve



Press ESC to Close



PDF Logo Edwards TIC Turbo Instrument Controller Instruction Manual.pdf

PDF Logo Edwards TIC Relay Box Instruction Manual.pdf

PDF Logo Edwards nEXT 55D 85D Turbo Pumps Instruction Manual.pdf

PDF Logo Edwards nEXT 730D 930D 1230H Turbo Pumps Instruction Manual.pdf

PDF Logo Edwards nEXT Turbomolecular Pumps Entire Range Brochure.pdf
