Edwards Part NumberD02395000 The Edwards Linear Convection Vacuum Gauge has a wide measuring range from 1000 to 2.3 X 10 Torr. The use of convection technology ensures accuracy and sensitivity are maintained to the top of the range maintained to the top of the pressure range compared to conventional Pirani gauges which are not as accurate above 100 mbar. They also have a user replaceable sensor tube. The gauge is compact and may be mounted in any orientation, simplifying installation where space is limited. The gauge incorporates a setpoint and two LEDs, which indicate setpoint and gauge status. The new Edwards gauges are compatible with all Edwards TIC, AGD, ADC instrument controllers and other active gauge controllers and displays. They are also CSA, C/US approved as well as fully RoHS compliant due to their lead-free construction. Pressure range from 1000 to 2.3 X 10

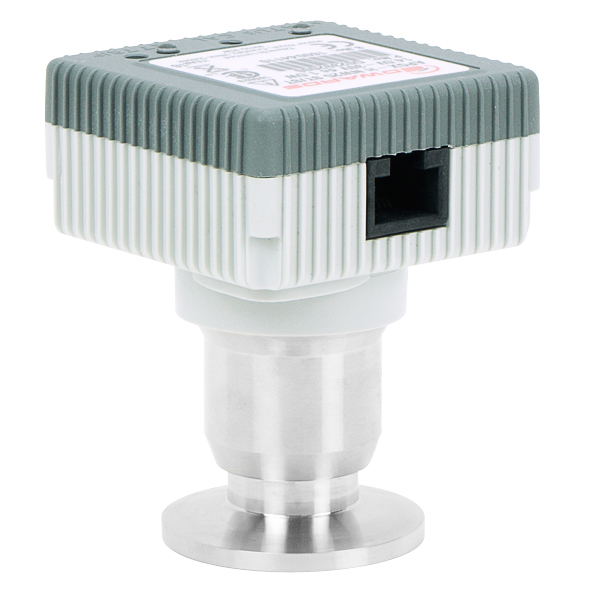

Edwards Part Number D02392000 The Edwards Linear Convection Vacuum Gauge has a wide measuring range from 1000 to 2.3 X 10 Torr. The use of convection technology ensures accuracy and sensitivity are maintained to the top of the range maintained to the top of the pressure range compared to conventional Pirani gauges which are not as accurate above 100 mbar. They also have a user replaceable sensor tube. The gauge is compact and may be mounted in any orientation, simplifying installation where space is limited. The gauge incorporates a setpoint and two LEDs, which indicate setpoint and gauge status. The new Edwards gauges are compatible with all Edwards TIC, AGD, ADC instrument controllers and other active gauge controllers and displays. They are also CSA, C/US approved as well as fully RoHS compliant due to their lead-free construction. Pressure range from 1000 to 2.3 X 10
