Custom Vacuum Chambers Welded Stainless Steel 28 in, Ready to Customize, With User Selectable Latching Door and Options

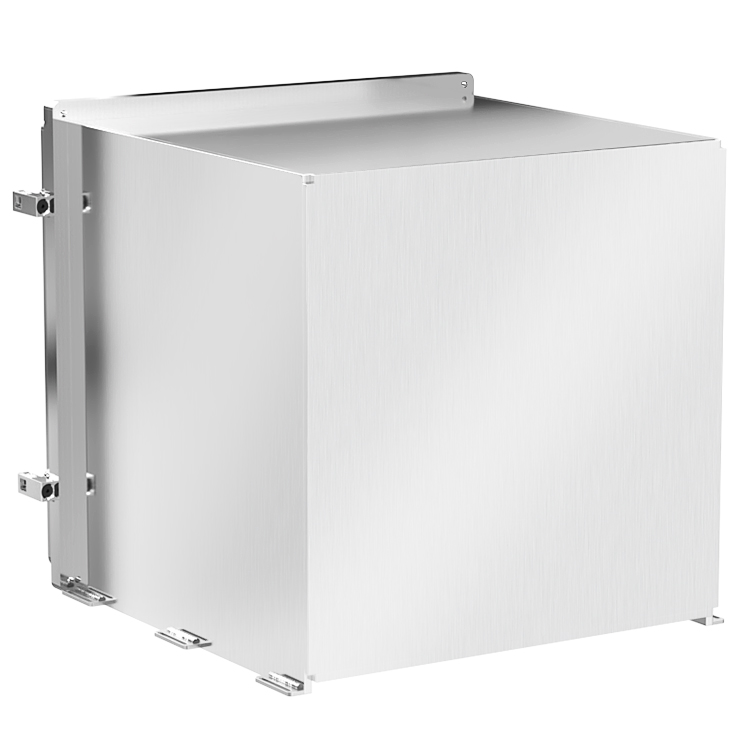

Ideal Vacuum Heavy Duty Stainless Steel 28x28 inch Cubic Blank Chamber, Ready to Customize and with Choice of Latched Door

Availability Disclaimer: This chamber is fabricated upon ordering. Chambers are made complete within 8 weeks of ordering. Expediting options are offered for rush orders if necessary.
Shelving rail option just adds the rails necessary for mounting any shelf option for the 28" chamber series. Shelves are purchased separately. Call for more details.

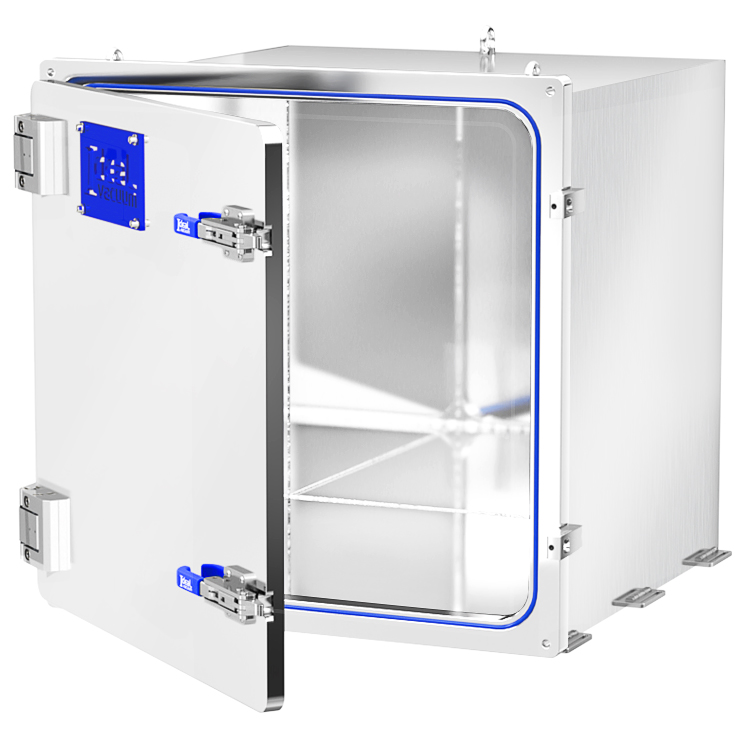

Fabricated and assembled entirely in our manufacturing facility, these robust, inexpensive vacuum chambers are a highly efficient way for your R&D lab to get into high vacuum applications. With an internal dimension of at least 28 x 28 x 28 inches, all of these cubic chambers are made with corrosion resistant 304 stainless steel plate . These leak-tested chambers are internally TIG welded, and include an O-ring seal, sturdy hinged door, and easy open latch for quick access. Your choice of door includes an inexpensive aluminum door and a stainless steel door for chemical resistance. All plates have a sanded finish. The depth of the chamber can be customized as well to meet your needs allowing for a deeper chamber with the same door size. For custom options please call (505) 872-0037.

Specifications

Interior Chamber Size: Approximately 28X28X28 inches (approx. 71X71X71cm)
Custom Depth: Chamber Depth Can Be Selected Between 6-60 inches Deep With Added Cost
Chamber Material: 304 Stainless Steel
Weight: 680 lbs (308.4 kg) without door
Volume: 13.25 cu. ft. (375.2 liters)
Hinged Front Door: Aluminum or Stainless Steel
Ultimate Pressure: 1x10^-7 Torr (Down to 3x10^-8 Torr with proper conditioning)
Leak Tested: (Helium) to 1x10^-8 atm cc/sec
Operating Temperature Range (Viton Seal): 5° to 302°F (-15° to 150°C)
Lead Time: 6 to 8 Weeks
Call for additional porting options
Call for expanded temperature range

Availability Of Kit Components Kit: P109822 - Custom Vacuum Chambers Welded Stainless Steel 28 in, Ready to Customize, With User Selectable Latching Door and Options
Component	Desc.	Req'd	Avail
Non-Standard	No Component Description Available On Website	1	32
Non-Standard	No Component Description Available On Website	2	265
