This Edwards nEXT240D turbo pump package deal with ISO-K 100 inlet flange has a pumping speed of 240 l/s and an ultimate pressure of 8 x 10
-8 mbar (6 x 10
-8 Torr).Included are a TAG (turbo & active gauge) controller with large LED display to show the pump's speed or vacuum pressure, along with its power supply and AC power cord, which can power the nEXT240D turbo pump and a vacuum gauge. This package also includes a forced air-cooling kit to keep the turbo pump running cool. The fan is mounted radially, plugs into the pump's accessory port, and is powered by the pump. This turbo pump package deal does not include the roughing pump, roughing lines, vacuum chamber, pressure measurement gauges, or vent valves. Some upgrades might include: a TIC controller and TIC relay box to provide better system automation & control, a water-cooling kit, and extension cables to extend the distance between the pump, power supply, and controller. All these items are available and sold separately by Ideal Vacuum.
About the nEXT240D turbo pump with ISO-K 100 flange
Edwards nEXT240D turbomolecular high vacuum pumps with an ISO-K 100 inlet flange have a pumping speed of 240 liters per second (l/s) and an ultimate pressure of 8 x 10
-8 mbar (6 x 10
-8 Torr). This nEXT240D pump has an ISO KF-25 exhaust foreline flange. Optional inlet screens (coarse or fine) are available. The nEXT240D series turbo pumps require 24 to 48 VDC input power at a maximum of 200 Watts (normal operation is typically less than 160 Watts). A permanently attached DB15 combination power and control cable is standard on the pump. All nEXT240D turbo pumps have a compact onboard controller with RS232 and RS485 interfaces, five status LED's, and a 3-pin Phoenix connector socket to control either an air-cooling fan or solenoid vent valve. This nEXT240D turbo pump has Edwards part number B81200100.
About the TAG (turbo and active gauge) controller

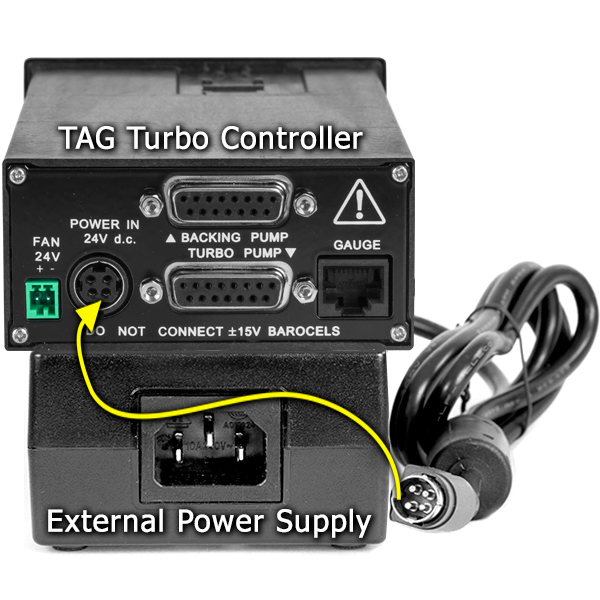

The Edwards TAG (turbo & active gauge) controller comes with a 200-Watt external power supply and 2 meter long 115 VAC US power cord (5-15P to C13 connectors). The TAG is a small low-cost 24 VDC pumping system controller, is ideal for use on benchtops or mobile platforms where space is limited, and is suitable for a wide range of vacuum applications. The TAG provides a serial interface for displaying the turbo pump's speed, can power the nEXT85D, nEXT240D, nEXT300D, or nEXT400D turbo pumps, and can control an Edwards APG, AIM, ASG, or WRG vacuum gauge. The TAG's push button interface allows the user to easily switch between pump speed or vacuum pressure, shown on the large LED display. The Edwards part number for this TAG controller is D39592000 and its power supply is D39592800.
About the ACX radial forced air-cooling kit
This Edwards ACX radial air cooling fan unit is used on nEXT240D, 300D, and 400D series turbo pumps and provides air flow perpendicular to the pump. It operates on 24 VDC. It has an attached 0.25 meter long cable, terminated with a Phoenix plug which is connected directly into the pump's Phoenix connector socket. This kit includes screws for attaching the fan's 90 degree mounting bracket to the bottom of the pump. This ACX radial air cooling fan kit has Edwards part number B58053175.
Applications for this package deal include:
- Mass Spectrometry
- Gas Chromatography Mass Spectrometry (GC/MS)
- Liquid Chromatography Mass Spectrometry (LC/MS)
- Inductively Coupled Plasma Mass Spectrometry (ICP-MS)
- Time-of-Flight Mass Spectrometry (TOF)
Vacuum in Research and Development:
- High Energy Physics
- Fusion Technology
- General UHV Research
- Synchrotron Light Sources Particle Accelerators
Nanotechnology Instruments:
- Electron Microscopy
- Scanning Electron Microscopy (SEM)
- Transmission Electron Microscopy (TEM)
- Focused Ion-beam Systems (FIB)
- Surface Analysis
- Semiconductor Manufacturing
Industrial Vacuum Processing:
- Thin Film Deposition:
- Glass coating equipment (architectural and automotive glass, flat panel displays)
- Thin film solar cells production (photo-voltaic)
- Optical data media (CD, DVD, Magneto Optical Discs)
- Magnetic storage media
- Surface treatments
- Optical coating (ophthalmic, precision opto-electronics)
- Roll/Web coating on films or foils
Device Processing:
- TV & Monitor picture tube manufacture
- Evacuation of lamps (motorway lighting, beamers)
- X-Ray tubes & electron devices
General Processes:
- Vacuum Furnaces
- Metallurgy
This package deal is stored in our inventory as a kit, being made up of many separate parts, and the availability of each is shown in the Kit Components section below. The operating instructions manual and Edwards nEXT series product brochures are available in the downloads.
