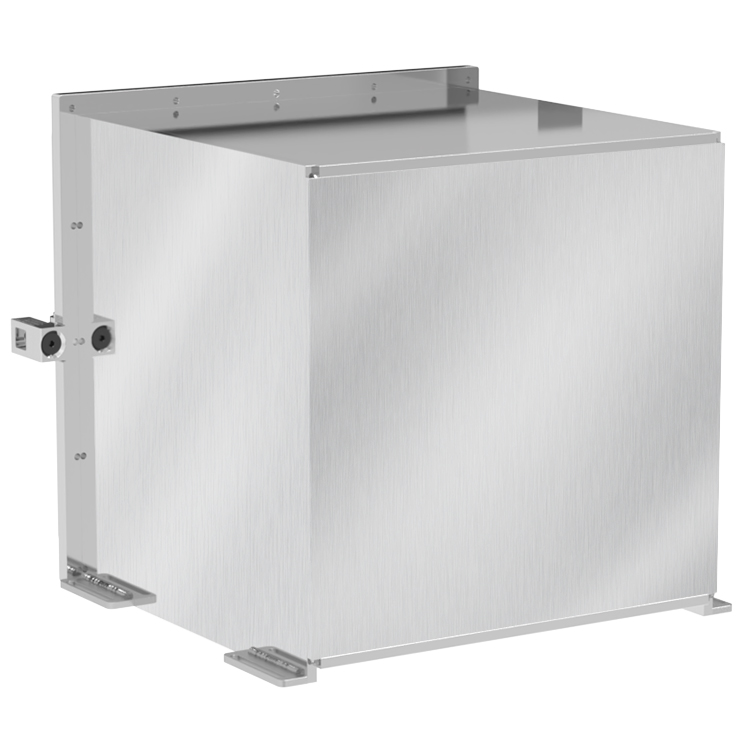

Custom Vacuum Chambers Welded Stainless Steel 16 in, Ready to Customize, With User Selectable Latching Door and Options


Ideal Vacuum Heavy Duty Stainless Steel 16 in Cubic Blank Vacuum Chamber, Ready to Customize, User Selectable Latching Door

Availability Disclaimer: This chamber is fabricated upon ordering. Chambers are made complete within 8 weeks of ordering. Expediting options are offered for rush orders if necessary. Call for more details.

Fabricated and assembled entirely in our manufacturing facility, these robust, inexpensive vacuum chambers are a highly efficient way for your R&D lab to get into high vacuum applications. With an internal dimension of at least 16 x 16 x 16 inches, all of these cubic chambers are made with corrosion resistant 304 stainless steel plate . These leak-tested chambers are internally TIG welded, and include an O-ring seal, sturdy hinged door, and easy open latch for quick access. Your choice of door includes an inexpensive aluminum door, a stainless steel door for chemical resistance, a clear acrylic door for direct viewing, and coming soon, a machined aluminum door for fixturing feedthroughs and miscellaneous internal components. All plates have a sanded finish. The depth of the chamber can be customized as well to meet your needs allowing for a deeper chamber with the same door size. For custom options please call (505) 872-0037.


Specifications
  • Interior Chamber Size: Approximately 16X16X16 inches (approx. 40.6X40.6X40.6cm)
  • Custom Depth: Chamber Depth Can Be Selected Between 6-36 inches Deep With Added Cost
  • Chamber Material: 304 Stainless Steel
  • Weight: Approximately 160lbs (73Kg) w/o door
  • Chamber Volume: Approximately 2.46 cu. ft. (69.6 liters)
  • Hinged Front Door: Aluminum, Stainless Steel, or Acrylic
  • Ultimate Pressure: 1x10-7 Torr (Down to 3x10-8 Torr with proper conditioning)
  • Leak Tested: (Helium) to 1x10-8 atm cc/sec
  • Operating Temperature Range (Viton Seal): 5° to 302°F (-15° to 150°C)
  • Lead Time: 6 to 8 Weeks
  • Call for additional porting options
  • Call for expanded temperature range


Press ESC to Close




Availability Of Kit Components

Kit: P109783 - Custom Vacuum Chambers Welded Stainless Steel 16 in, Ready to Customize, With User Selectable Latching Door and Options
Component
Desc.
Req'd
Avail
Non-Standard
No Component Description Available On Website
1
7
Non-Standard
No Component Description Available On Website
4
88
Non-Standard
No Component Description Available On Website
1
148

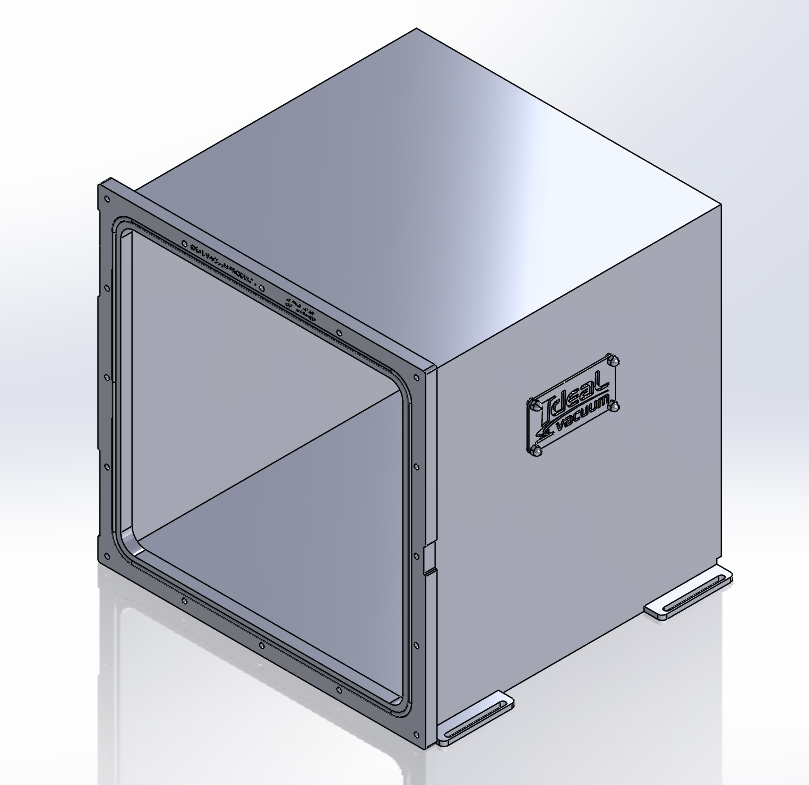

CAD Picture
