Agilent Varian TwisTorr 305 FS On-Board 24 VDC Navigator Turbo Pump Controller.
Agilent Part Number: X3507-64130.
This Agilent Varian OnBoard Navigator Controller for the TwisTorr305-FS series of turbo pumps requires a 24 VDC input. It is a microprocessor controlled frequency converter, fully controllable through PC software, with self-diagnostic and protection features that ensure the highest degree of reliability.
This On-board Navigator can be mounted on board, either on the bottom or on
the side of the pump, offering outstanding flexibility and
simplicity. Please see the downloads for specs and use.
This Agilent Varian 305FS OnBoard Controller has the following features:
- 24 VDC input.

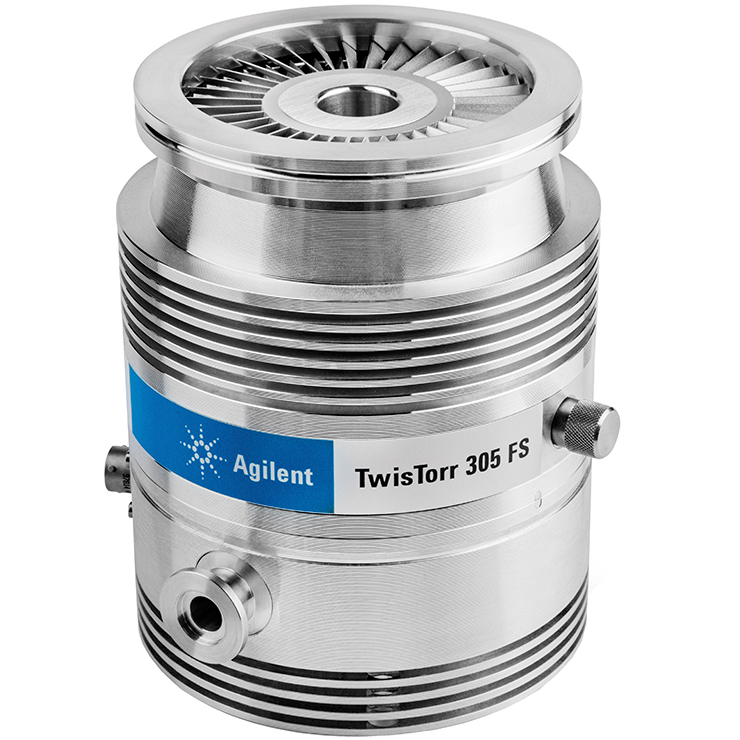

- Drives the pumps of the TwisTorr 305FS Family.
- Powers the pump cooling fan.
- Drives the vent valve.
- Provides and acquires the pressure of the wide range gauge.
- Remote I/O compatible with the previous verson.
- Navigator default serial compatible with the previous RS 232 and 485 version.
These controllers have an RS-232/485 serial port which allows the pump to be interfaced with the system controls and to be operated via PC with T-Plus software (sold separately, part number P104164). These Agilent 305FS controllers are Brand New and come with the full manufacturer's warranty.
