Stainless Steel Door

Heavy Duty Stainless Steel Latching Door for 12 in Cubic Chamber
This door is compatible with all of our Ideal 12in. SS welded square chambers as a replacement, and comes with all hardware necessary to make a complete door switch.

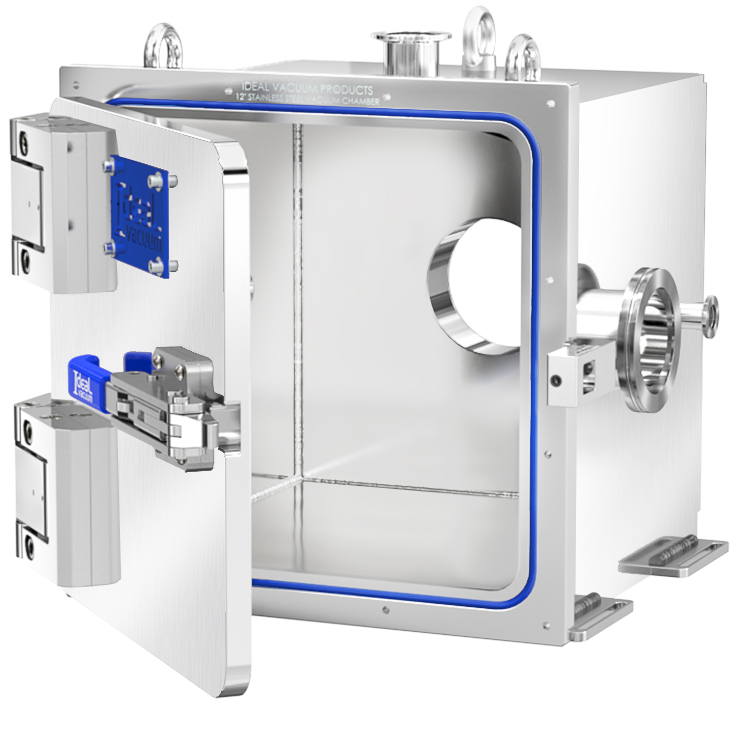

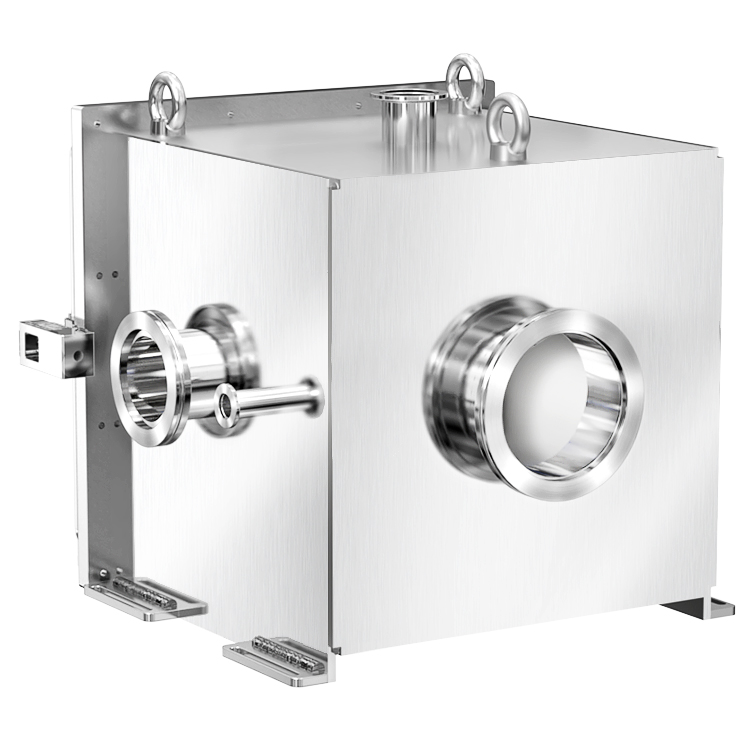

Fabricated and assembled entirely in our manufacturing facility, these robust, inexpensive vacuum chambers are a highly efficient way for your R&D lab to get into high vacuum applications. With an internal dimension of at least 12 x 12 x 12 inches, all of these cubic chambers are made with corrosion resistant 304 stainless steel plate . These leak-tested chambers are internally TIG welded, and include an O-ring seal, sturdy hinged door, and easy open latch for quick access. Your choice of door includes an inexpensive aluminum door, a stainless steel door for chemical resistance, a clear acrylic door for direct viewing, and coming soon, a machined aluminum door for fixturing feedthroughs and miscellaneous internal components. All plates have a sanded finish and are electropolished on the internal side. For custom options please call (505) 872-0037.

Specifications

• Interior Chamber Size: Approximately 12X12X12 inches (approx. 30.5X30.5X30.5cm)
• Chamber Material: 304 Stainless Steel
• Chamber Weight w/ SS Door: Approximately 110lbs (50Kg)
• Hinged Front Door: Aluminum, Stainless Steel, or Acrylic
• Ultimate Pressure: 1x10^-6 Torr (High Vacuum)
• Leak Tested: (Helium) to 1x10^-8 atm cc/sec
• Operating Temperature Range (Viton Seal): 5° to 302°F (-15° to 150°C)
• Lead Time: One to Two Weeks (7-14 days)
• Call for additional porting options
• Call for expanded temperature range

Press ESC to Close

Availability Of Kit Components Kit: P109175 - Stainless Steel Door
Component	Desc.	Req'd	Avail
Non-Standard	No Component Description Available On Website	4	640
Non-Standard	No Component Description Available On Website	2	65
Non-Standard	No Component Description Available On Website	8	106
Non-Standard	No Component Description Available On Website	1	286
Non-Standard	No Component Description Available On Website	4	173
Non-Standard	No Component Description Available On Website	4	65
Non-Standard	No Component Description Available On Website	2	622
Non-Standard	No Component Description Available On Website	1	45
Non-Standard	No Component Description Available On Website	1	136
P1012686	Ideal Vacuum Replacement Viton O-Ring Seal for 12" Stainless Steel and Aluminum Welded Chamber Doors	1	34
P1013548	Replacement Upgrade Door Catch for all Ideal Vacuum 12 and 16 inch Welded Chamber Doors, 2nd Generation Spring Loaded	1	36
