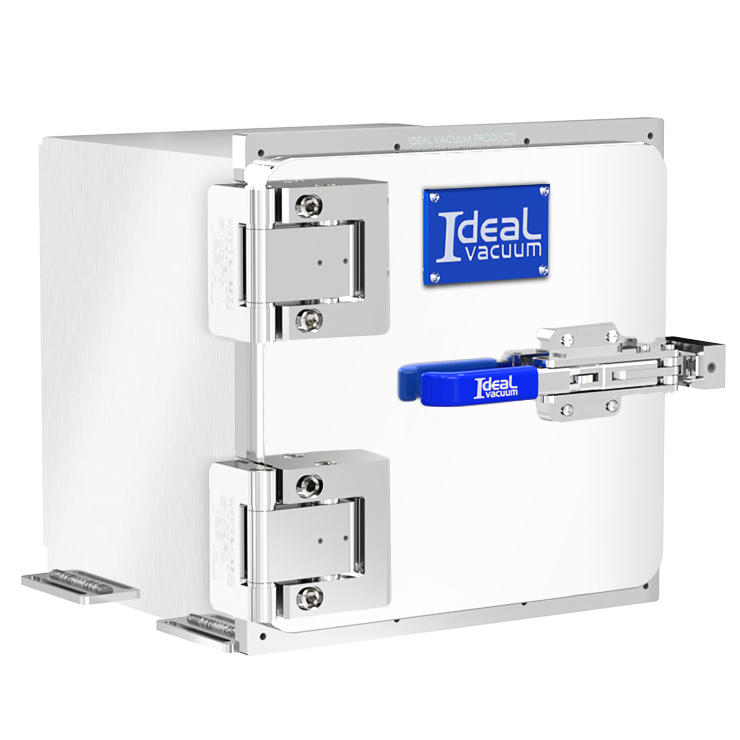

Ideal Vacuum Heavy Duty Stainless Steel 12 in Blank Cubic Vacuum Chamber With Choice of Latched Door, Without Ports

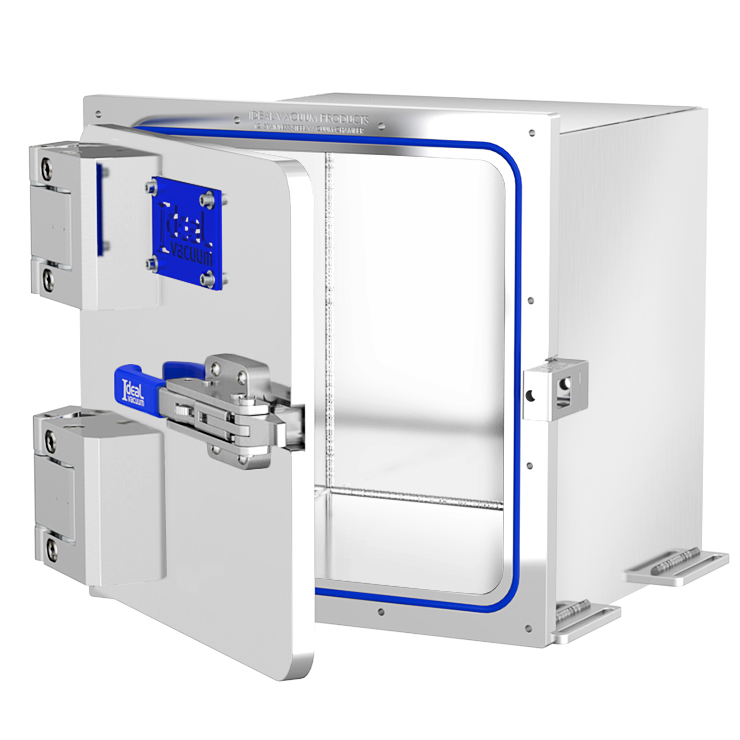

Fabricated and assembled entirely in our manufacturing facility, these robust, inexpensive vacuum chambers are a highly efficient way for your R&D lab to get into high vacuum applications. With an internal dimension of at least 12 x 12 x 12 inches, all of these cubic chambers are made with corrosion resistant 304 stainless steel plate . These leak-tested chambers are internally TIG welded, and include an O-ring seal, sturdy hinged door, and easy open latch for quick access. Your choice of door includes an inexpensive aluminum door, a stainless steel door for chemical resistance, a clear acrylic door for direct viewing, and coming soon, a machined aluminum door for fixturing feedthroughs and miscellaneous internal components. All plates have a sanded finish and are electropolished on the internal side. The depth of the chamber can be customized as well to meet your needs allowing for a deeper chamber with the same door size. For custom options please call (505) 872-0037.
Specifications
- Interior Chamber Size: Approximately 12X12X12 inches (approx. 30.5X30.5X30.5cm)
- Custom Depth: Chamber Depth Can Be Selected Between 6-36 inches Deep With Added Cost
- Chamber Material: 304 Stainless Steel
- Hinged Front Door: Aluminum, Stainless Steel, or Acrylic
- Ultimate Pressure: 1x10-6 Torr (High Vacuum)
- Leak Tested: (Helium) to 1x10-8 atm cc/sec
- Operating Temperature Range (Viton Seal): 5° to 302°F (-15° to 150°C)
- Weight: 80 lbs. (36.3 kg) w/o door
- Volume: 1.04 cu.ft.(29.4 liters)
- Lead Time: One to Two Weeks (7-14 days)
- Call for customizable porting options
- Call for expanded temperature range
