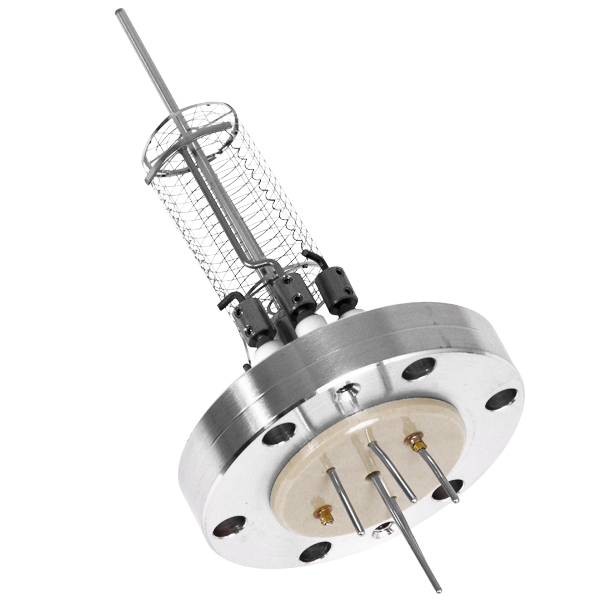

Varian Agilent UHV-24 Nude Bayard-Alpert Ionization Gauge, open gauge, Dual Tungsten Filament, 2.75 inch CFF ConFlat Flange,
1×10-3 to 2×10-11 Torr Pressure Range, Maximum Bakeout Temperature: 450 °C
Agilent Varian Part Number 9715008
The Varian Agilent UHV-24 Nude Bayard-Alpert Ionization Gauge is a rugged, open gauge with broad-range operating pressure abilities, Dual Tungsten Filament, 2.75 ConFlat Flange, 1×10-3 to 2×10-11 Torr Pressure Range, Maximum Bakeout Temperature: 450 °C.
The UHV-24 Nude Ionization Gauge, with an x-ray limit of 2x10-11 Torr, provides reliable
pressure measurement from 1 mTorr down to 2x10-10 Torr, with reduced performance at
pressures lower than 2x10-10 Torr.
The UHV-24p Nude Ionization Gauge utilizes an extremely thin collector which lowers its
x-ray limit to 5x10-12 Torr. As a result, it can measure pressure from 1m Torr down to
5x10-11Torr, with reduced performance at pressures lower than 5x10-11 Torr.
Properly mounted nude gauges, where the grid structure protrudes into the vacuum
chamber, offer the lowest error in terms of the local vacuum pressure being the same as the
chamber pressure. The filament is field replaceable.
Nude gauges are recommended for bakeable, all-metal, ultra-high vacuum systems where
maximum exposure to the vacuum gives the highest possible accuracy. The UHV-24 ion gauge is easily interfaced with Varian's
XGS-600 gauge controller for integration into a variety
of vacuum systems, or for use as a stand-alone pressure
measurement tool. For complete operating instructions scroll down to (AVAILABLE DOWNLOADS:) and download the Instruction Manual, Spec Sheet and other pertinent information Pdf's. Agilent Varian Part Number 9715008.
Typically Works With Vacuum Gauge Controllers:
- Granville Phillips Models: 260, 270, 280, 303, 306, 307 330, 340 ,350, and others.
- MKS Instruments Models: 290, 919, 929
- Perkin Elmer Model: DGC3
- Varian Models: 831, 836, 842, 844, 845, 880, 971-0003, 971-0014, 971-1008, Multi-Gauge, Varian 571 Tube K2471301,
XGS-600
- Veeco Models: RG2, RG3, RG21, RG31, RG81, RG83, RG84, RG830, RG840, RG1000, RG1002
