Home > > > Adapter Grip Tight KF-16 to 1/4 NPT-MALE, Flange Size ISO-KF NW-16, Stainless Steel

Condition:

New

Part Number:

P103068

Warranty:

Against Product Defect

Available Now: 113

RoHS Compliance Sticker

$77.03

Print Version

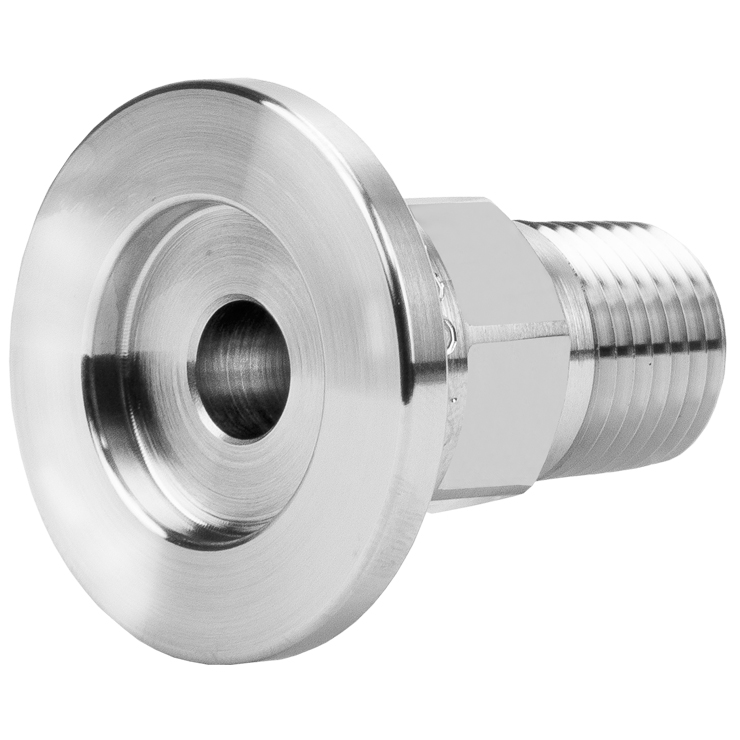

Adapter Grip Tight KF-16 to 1/4 NPT-MALE, Flange Size ISO-KF NW-16, Stainless Steel

Adapter KF-16 to 1/4 NPT-MALE, Flange Size ISO-KF NW-16, Stainless Steel

These adapters are KF-16 to 1/4 in. NPT MALE pipe thread. They are commonly used to make connections between ISO-KF 16 and 1/4 inch NPT-Male pipe. The ISO-KF flanges are often called quick flange fittings because they are quick to assemble. A circumferential clamp and rubber olastomer o-ring connect the flanges together. The standard sizes for quick flange fittings are KF-10, KF-16, KF-25, KF-40, and KF-50 with flange sizes NW-10, NW-16, NW-25, NW-40, and NW-50, respectively. They are made of corrosive resistant stainless steel.

Adapter KF-16 to 1/4 in. NPT-M Pipe, Stainless Steel
Flange Size: ISO-KF NW-16
Pipe Thread: 1/4 in. NPT-MALE
Common Dimensions: A = 1.5"

Press ESC to Close

RoHS Compliance Download

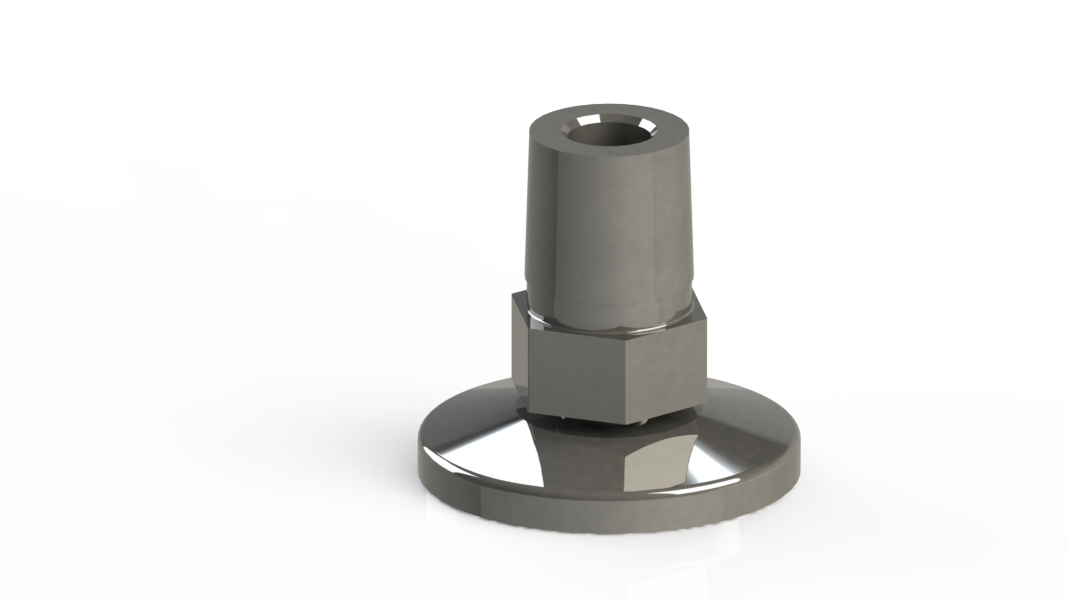

P103068.sldprt

P103068.step

Ideal Spectroscopy offers 3D CAD models in Solidworks (SLDPRT), STP, & STEP formats. For those without CAD software a free trial 3D model viewer with measurement capabilities can be downloaded here:

eDrawings Viewer For Windows
eDrawings Viewer For MAC.
