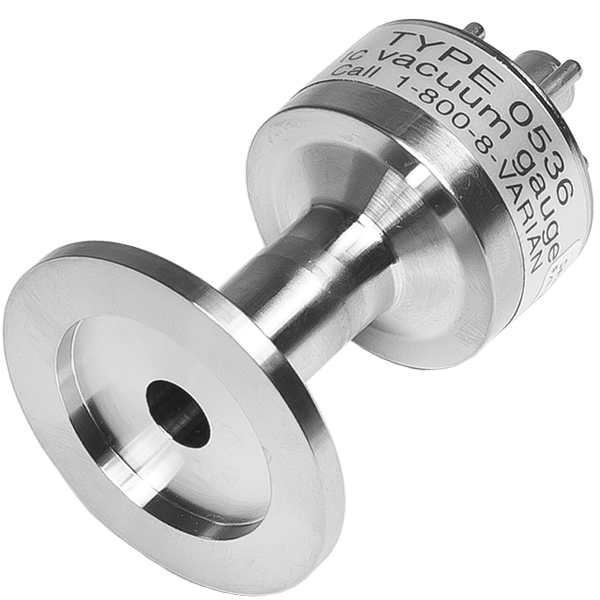

Varian 536 Thermocouple Gauge Tube Sensor, NW25 KF25 Flange, 304L Stainless Steel, With the Addition of a Baffle, Pressure Range: 1 × 10-3 torr to 2 torr, Maximum bakeout temperature: 150 °C. Agilent Varian Part Number L6141309.
This is a Varian 536 Thermocouple Gauge Tube Sensor, NW25 KF25 Flange, 304L Stainless Steel, With the Addition of a Baffle, Pressure Range: 1 × 10-3 torr to 2 torr, (1 x 10-3 mbar to 2.7 mbar). Maximum bakeout temperature: 150 °C. The 536 Thermocouple Gauge Tube is a welded 304 stainless
steel version of the 531 with an additional baffle that greatly
extends the sensor life when exposed to condensable gases in
demanding applications.
It provides a continuous and
repeatable indication of pressures. The thermocouple and heater are
noble metal to minimize any possible affect of contaminants
on gauge performance. The Thermocouple gauge
is offered with a variety of flange connectors and is easily
interfaced with Varian Agilent XGS-600 gauge controller for integration in a complex vacuum system, or for use as a
stand-alone pressure measurement tool.
NOTE: There are 2 D-Bus Connectors on the XGS-600 Dual Convection Thermocouple Card. Only 1 Thermocouple Gauge can be used per D-Bus connector. No Y connector I/O cables allowed.
Can be used with the following controllers:
Varian Multi-Gauge Controller
Varian Senn Torr Gauge Controller
Varian XGS 600 Gauge Controller
This is a separate gauge ONLY, cables and controllers available on this website. A spec sheet and other information is available for download in PDF format below at (AVAILABLE DOWNLOADS). Agilent Varian Part Number L6141309.

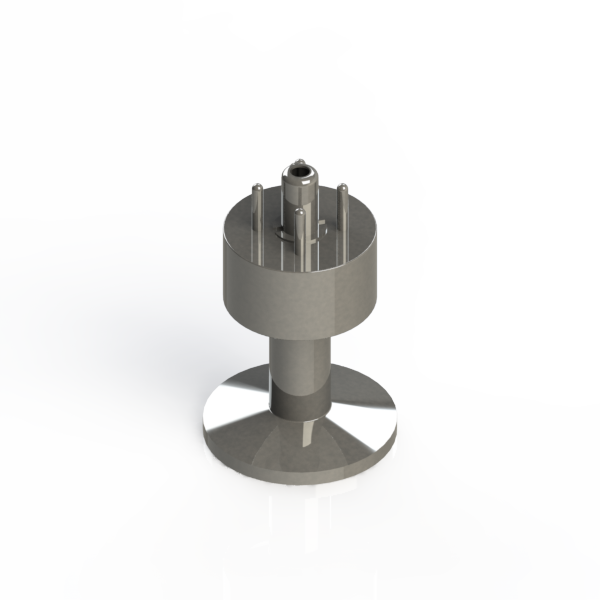

Ideal Spectroscopy offers 3D CAD models in Solidworks (SLDPRT), STP, & STEP formats. For those without CAD software a free trial 3D model viewer with measurement capabilities can be
downloaded here:
