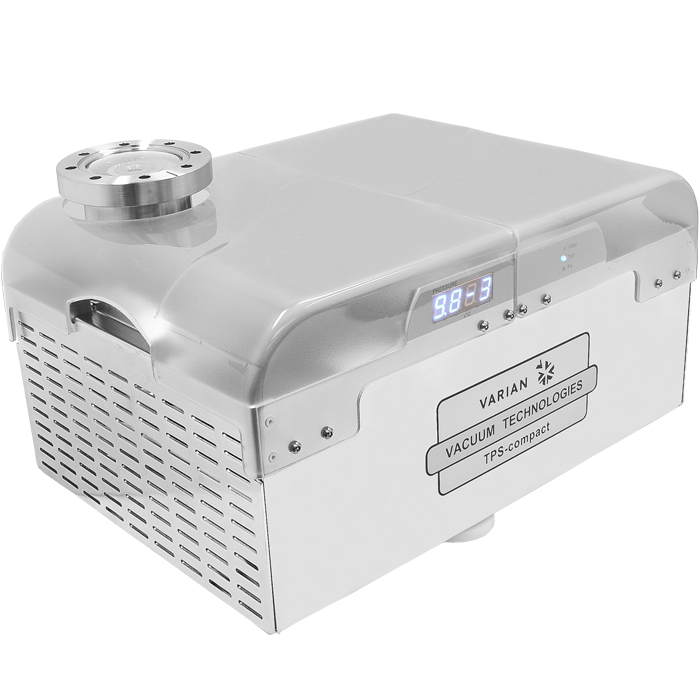

Agilent Varian TPS-Compact Dry 74FS Turbomolecular Vacuum Pumping System, CF 4.5 Inlet Flange
Product Number X3580A-010-022-120 (Replaces Varian Number 9698220)
The Agilent Varian TPS-Compact is a dry high vacuum turbo molecular pumping system. The TPS-Compact can be ordered with the 74FS Turbo Pump (maximum pumping speed of 60 l/s) or 305FS with latest twistorr technology (maximum pumping speed of 250 l/s). TPS- Compact systems as the name suggests are small, compact, have a fast pump down time. The TPS-Compact is a totally dry high vacuum pumping system with an ultimate pressure of 1x10-9 Torr. The backing pump inside the TPS-Compact is a 60 l/min Varian IDP-3 dry scroll vacuum pump. The Varian TPS-Compact is an oil-free high performance vacuum pump system and has reduced power consumption thanks to the superior scroll pump performance. The Agilent Varian TPS-Compact is designed to meet demanding applications while being cost effective. These units can be ordered in KF 40, ISO 63, CF 2.75, CF 4.5 configurations. These units are new and come with Agilent Varian factory warranty. They can be ordered for operation on either single phase 115 or 220 VAC at 50/60 Hz.
Optional Varian FRG-700 full ranges (active pirani and inverted-magnetron gauge) are available which can measure vacuum pressure from atmosphere to 3.8x10-9 Torr. Agilent Varian MiniTask, TPS Compact, and Varian AG turbo pump controllers can control the FRG-700 gauges where the pressure reading is displayed on the front of the device. These gauge interfaces with a built in display on the front of the TPS-Compact unit, pressure readout can be displayed in mbar, Torr, or Pascal. Controller-display's for these systems are RS-232 or analog communication compatible. We also offer full range gauge kits; which include the Varian FRG-700 active pirani and inverted magnetron gauge, cable for gauge connection, and vacuum tee with connecting hardware.

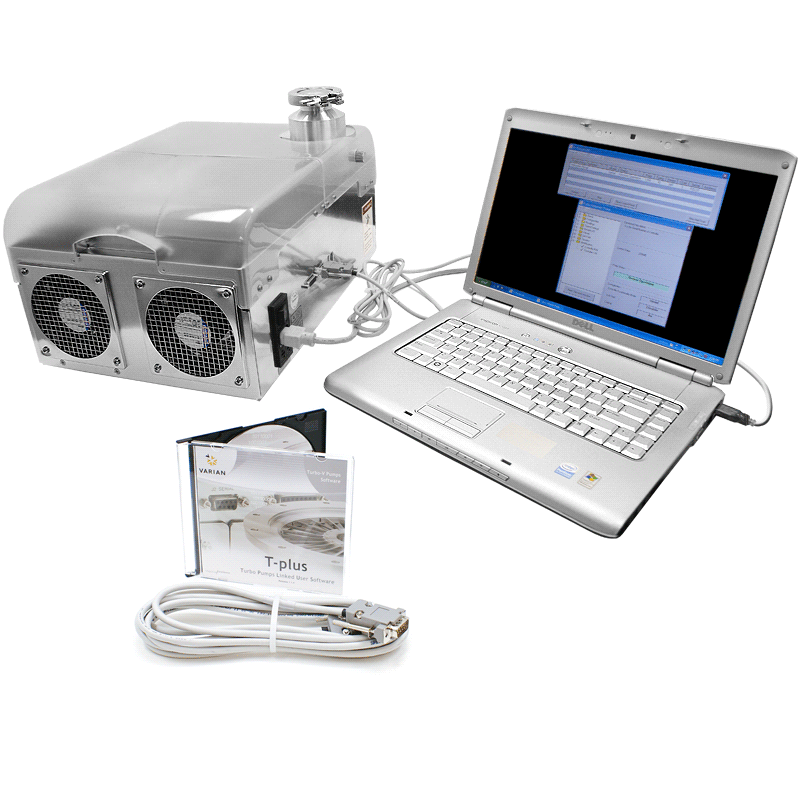

This unit is also available with wheels. ALL TPS-Compact Units can be operated with T-Plus Software via PC, not included. The complete specifications and application brochure in PDF format can be downloaded below. The New TPS Compact 74FS with 4.5 inch Conflat intake has part number Agilent Varian X3580A-010-022-120 which replaces the now discontinued Varian TPS Compact V81M with part number 9698220.
