Condition:
  New
Part Number:
  P106037
Warranty:
  Full Manufacturer's Warranty

Available Now:
3  



$6,288.00


Print Version

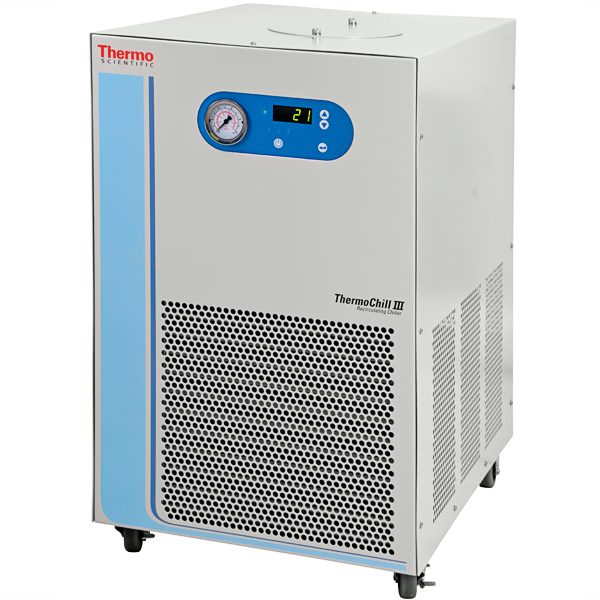

Thermo Scientific ThermoChill III Recirculating Chiller, 2000W Cooling, 230V PD2 Pump 198132010000


Thermo Scientific ThermoChill III Recirculating Chiller, 2000 Watt Cooling, 208-230V PD2 Pump.
Thermo Neslab Part Number 198132010000


The Thermo Scientific ThermoChill III recirculating chillers are designed to provide a continuous supply of fluid at a constant temperature and volume. This unit is air-cooled only (Water cooling not available for this unit) and also offers a refrigeration system, heat exchanger, recirculating pump, polyethylene reservoir, and a microprocessor controller. These ThermoChill III chillers offer the following features:
  • Positive Displacement PD2 pump – 3.6 gpm at 60 psig
  • 2000W (6830 BTU) cooling capacity at 20°C 208-220V 20 amp
  • Voltage requirement: 208-220V/60Hz
  • Set Point Temperature Range: +5°C to +30°C
  • Ambient Temperature Range: +10°C to +35°C
  • 19 liter (5 gallons) Reservoir Volume
  • Accessible fill port for easy filling
  • Pressure gauge located on control panel for easy viewing of application pressure
  • Intuitive digital controller with controller indicator lights
  • Locking casters for easy maneuvering
  • Warranty: 1 Year on Pump – 2 Years on Chiller

The Thermo Scientific ThermoChill I recirculating chiller offers powerful cooling, expansive temperature ranges, and sophisticated controller technology. They are very simple to use, simply make the plumbing connections, add recirculating fluid, turn on and select the set point temperature. It is that easy to install a ThermoChill system. These robust, compact units offer precise temperature stability and high reliability for external circulation applications. An industrial-grade force and suction pump provides the pressure necessary to circulate fluid long distances to both open containers and closed loop systems. This gives users the flexibility to meet a wide range of application needs.

These ThermoChill recirculating chillers are low cost solutions for new replacements of the discontinued:
    Thermo Neslab ThermoChill I - Replacement for
  • Neslab CFT25 CFT-25, 580 Watts Cooling @ 20 Degrees C
  • Neslab Merlin M25 M-25, 750 Watts Cooling @ 20 Degrees C

    Thermo Neslab ThermoChill II - Replacement for
  • Neslab CFT33 CFT-33, 950 Watts Cooling @ 20 Degrees C
  • Neslab Merlin M33 M-33, 1250 Watts Cooling @ 20 Degrees C

    Thermo Neslab ThermoChill III - Replacement for
  • Neslab CFT75 CFT-75, 2100 Watts Cooling @ 20 Degrees C
  • Neslab Merlin M75 M-75, 2300 Watts Cooling @ 20 Degrees C

The user's manual and product brochure for these Thermo Neslab ThermoChill series recirculating chillers can be downloaded in PDF format below.




Press ESC to Close



PDF Logo Thermo Scientific ThermoChill LR Recirculating Chillers Manual.pdf

PDF Logo Thermo Scientific ThermoChill Series Recirculating Chillers Brochure.pdf
