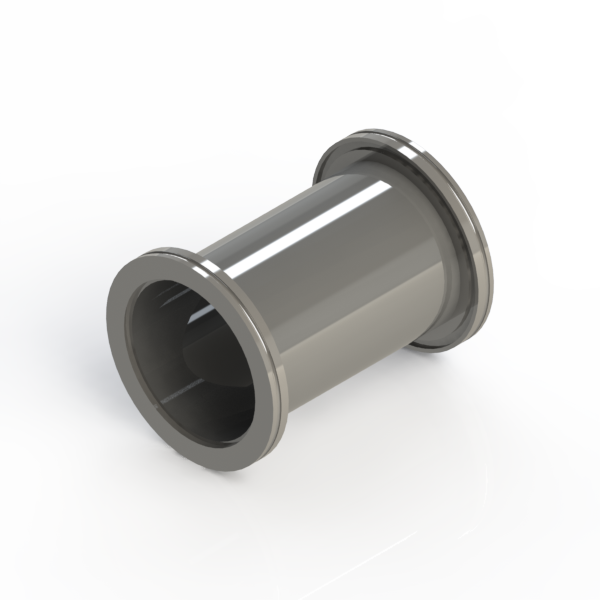

Nipple Full, 6-3/4 inch height, NW-100 Fittings, ISO-LF Large Flange Size NW-100, Stainless Steel

Straight Nipple NW-100, 171mm, 6-3/4 inch, 6.75 inch, Vacuum Fittings, ISO-LF Flange Size NW-100

These full nipples follow International Standards Organization (ISO) standards and have a flange size of NW-100. ISO flanged vacuum fittings are commonly used to build process vacuum plumbing and systems for industrial applications. The fittings are quick to assemble using double claw clamps and a centering ring (please see top right figure - click to enlarge). The ISO standard sizes for large flanges are NW-63, NW-80, NW-100, NW-160, NW-200, NW-250, NW-320, NW-400, NW-500, NW-630. These vacuum fittings are made of corrosive resistant stainless steel.

Nipple Full, NW-100 Vacuum Fittings, ISO-LF, Stainless Steel
ISO-LF Flange Size: NW-100
Common Dimensions:
A = 6-3/4 in,

Press ESC to Close

RoHS Compliance Download

P107274.sldprt

P107274.step

Ideal Spectroscopy offers 3D CAD models in Solidworks (SLDPRT), STP, & STEP formats. For those without CAD software a free trial 3D model viewer with measurement capabilities can be downloaded here:

eDrawings Viewer For Windows
eDrawings Viewer For MAC.
