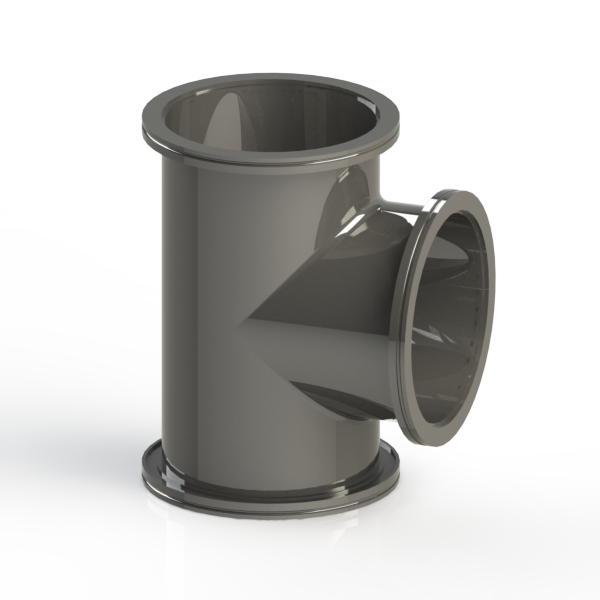

TEE NW-160 Vacuum Fittings, ISO-LF Large Flange Size NW-160, Stainless Steel


TEE NW-160 Vacuum Fittings, ISO-LF Large Flange Size NW-160, Stainless Steel

These LF160 TEES follow ISO-LF standards and have a flange size of NW-160. Large Flange fittings are commonly used to build foreline vacuum plumbing and process systems. The fittings are quick to assemble with a double claw clamp or a single claw clamp for tapped bored flanges and a centering ring forming the vacuum seal between the connecting flanges (please see top right figure - click to enlarge). The Viton® centering ring contains a rubber/elastomeric o-ring. The standard sizes for Large Flanges are LF63, LF80, LF100, LF160, LF200, LF250, LF320, LF400, LF500, LF630. LF is an ISO (International Standards Organization) standard but is often called LF, NW, or Large Flange.

TEE NW-160 Vacuum Fittings, ISO-LF Large Flange Size NW-160, Stainless Steel
ISO-LF Flange Size: NW-160
Common Dimensions: A = 10.50" (267mm), B = 5.250" (133mm),


Press ESC to Close


PDF Logo RoHS Compliance Download

CAD Picture

Ideal Spectroscopy offers 3D CAD models in Solidworks (SLDPRT), STP, & STEP formats. For those without CAD software a free trial 3D model viewer with measurement capabilities can be downloaded here:

E-drawing LogoeDrawings Viewer For Windows
E-drawing LogoeDrawings Viewer For MAC.
