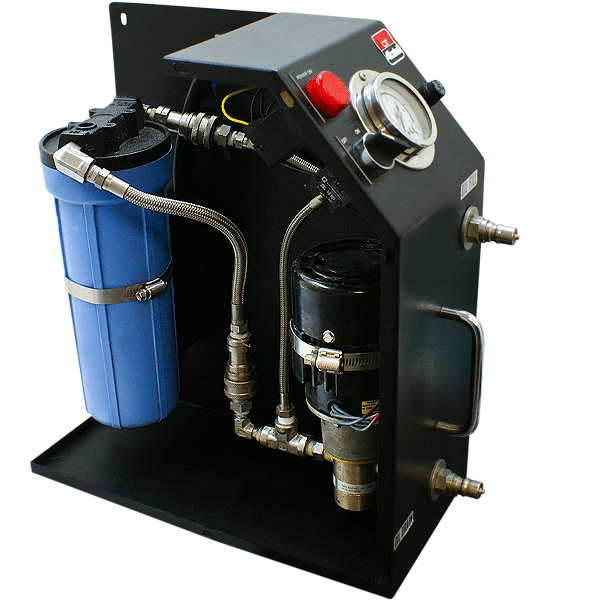

Rebuilt Alcatel Adixen External Oil Filter DE1 (this unit has only 1 filter cartridge.)
DE filtration system is a stand-alone unit consisting of a
magnetically driven gear pump which circulates oil through
1 filtration cartridge.
According to filtration media the
DE filter retains solid particles and/or neutralizes corrosive
products contained in the oil of the pump. DE filters can be connected to any rotary vane pump from 5 m3/h (3CFM) to 100 m3/h (70CFM); all necessary components for connection are included and 1 DE filter (activated alumina)
DE filters can be used with different types of filtration media cartridges:
• Cellulose filter: filtration of solid particles only.
• Activated alumina filter: envelope/charge of activated alumina. Applications: mineral acids, Lewis acids, Polar compounds.
• Activated charcoal filter: envelope/charge of activated charcoal. Applications: Chlorinated products, water and chlorine,
Nitrous vapors, Ammonia. All filter cartridges sold on this website.
Can be used with rotary vane pumps:
All Brands From 3 CFM to 70 CFM.
Common Dimensions & Specifications:
Housing made with steel, Comes with 1 filter element, activated alumina.
Approx. Weight 24.6 lbs.
Oil Volume 1.2 liter.
