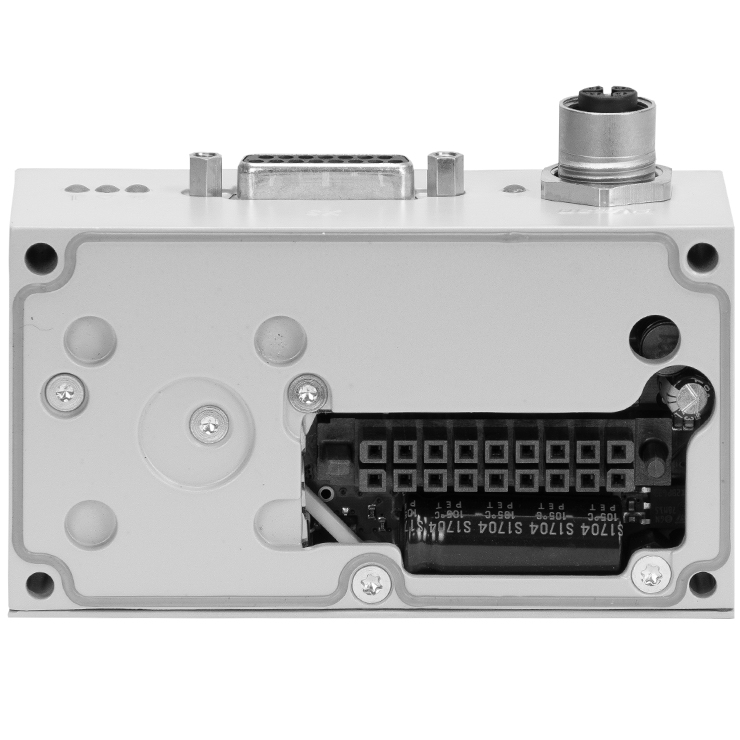

Pfeiffer TC 110 Electronic Drive Unit for HiPace 80 and HiPace 300 Turbo Pumps, PN: PM C01 790 AT

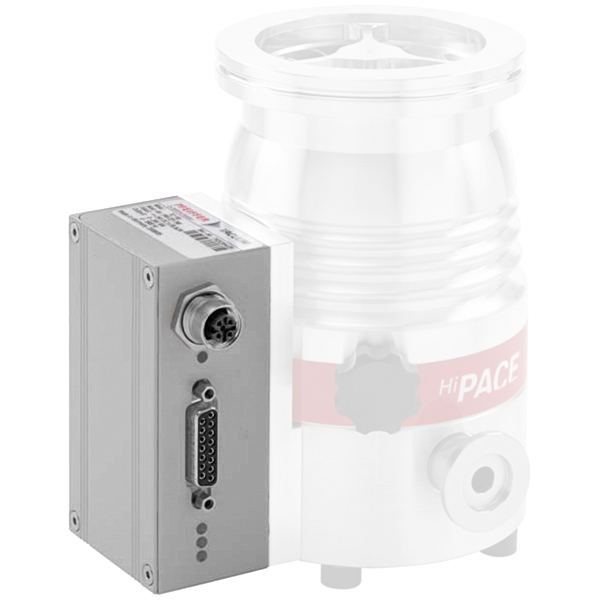

The TC 110 electronic drive unit operates smaller Pfeiffer turbo pumps and their accessories. It's purpose is to drive, monitor and control the pump. The TC 110 is designed to work with Pfeiffer HiPace 10, 30, 80, 300H and SplitFlow 50 and 80 turbo pumps. It requires 24 VDC input power, normally supplied by a Pfeiffer DCU 110 or OmniControl 200 controller through a special connection cable (part number P103335 or P1011168, not included). The connection cable supplies power to the pump and also has two M8 ports for connecting optional accessories such as a forced air-cooling kit, a solenoid vent valve, and/or a sealing gas valve. This unit replaces a damaged drive unit, or is required for pumps that do not include a drive unit. The TCU 110 electronic drive unit has Pfeiffer part number PM C01 790 AT.

Pfeiffer turbo pump accessories, including inlet screens, forced air-cooling and water-cooling kits, solenoid operated vent valves, and heater bands (for Conflat CF flanged pumps only) are available in other listings.

The instruction manual for the TC 110 controller and related documentation for Pfeiffer HiPace turbo pump products is available in the downloads.
