Condition:
  New
Part Number:
  P107128
Warranty:
  Against Product Defect

Available Now:
2  



$341.87


Print Version

Pfeiffer ONF 010 Oil Mist Eliminator for UNO DUO 2.5, KF10 Outlet Flange Pumps PN PK Z40 002 A


PPfeiffer ONF 010 KF10 Horizontal Oil Mist Eliminator for Duo UNO 005 A, UNO/DUO 2.5A /AC KF16 Outlet Flange Pumps
Pfeiffer Vacuum Part Number: PK Z40 002 A

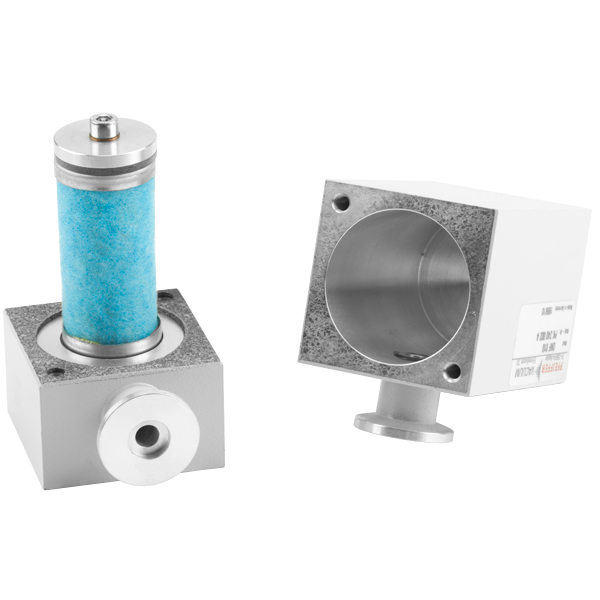

For Pfeiffer Pumps up to 3 m3/h (2 CFM). The Pfeiffer ONF 010 (KF10) oil mist filter separator is mounted on the exhaust connection of Pfeiffer rotary vane pumps. It prevents air pollution from operating oil mist that is ejected by the pump to a greater or lesser degree depending on the operating pressure. The filter inserts are installed in a housing made of corrosion-resistant aluminum and consist of a cylindrical filter of glass polyester fleece. The filter inserts are opened by an incorporated pressure relief valve when the contamination becomes excessive so that the maximum working pressure of 1.5 bar (absolute) cannot be exceeded. The collected oil mist, now fluid can be observed through the sightglass and discharged with the drain screw. For complete application, specifications and dimensions, download PDF below at AVAILABLE DOWNLOADS.

    Fits Pfeiffer Rotary Vane Pumps with KF10/16 Outlet Flanges:
    Pfeiffer Rotary Vane Pumps:
    UNO 005 A, UNO/DUO 2.5 A, UNO/DUO 2.5 AC


Press ESC to Close


PDF Logo IVP Technical Considerations for Selecting Vacuum Components for Chemical Processes.pdf
