NEW Varian Agilent Hot Filament Ion Gauge (HFIG) Card for the XGS-600 Multi-Gauge Vacuum Controller, Agilent Varian Part Number R3075301
This is the Hot Filament Ion Gauge HFIG board and operates all Varian hot filament gauges and most other available
Bayard-Alpert type hot filament ionization gauges including nude UHV types. The board
can be set up for all Varian hot filament gauges and allows you to set gauge emission
current, sensitivity value, and gas correction factor. The UHV range and E-Beam degas are
standard, as is dual filament control, remote I/O control of emission and filament selection,
and 0 to 10 V analog output. Other cards can also be used along side this Dual Convection Card.
Compatible with the following gauges in the high to ultra high vacuum range
from
10-3 to 10-10:
- 563 (HV)
- 564 (HV)
- 571 (HV)
- 572 (HV)
- MBA-100, MBA-200 (HV)
- UHV-24, UHV-24p (UHV)
- Also compatible with competitors gauges (see XGS-600 Instruction/Users Manual .pdf page 2-4 for Cross Reference below.)
This is the Hot Filament Ion Gauge (HFIG) ONLY. For Complete Board Specifications/Descriptions see XGS-600 Instruction/Users Manual .pdf page A-3 below. The XGS-600 Controller, other cards, gauges and cables sold separately on this website.

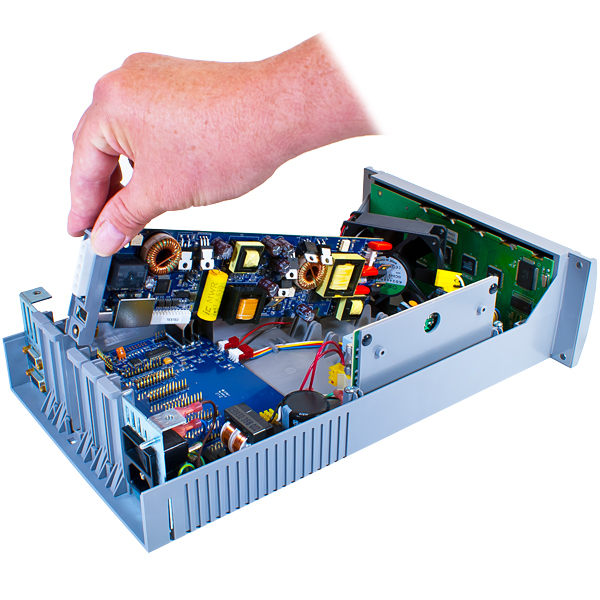

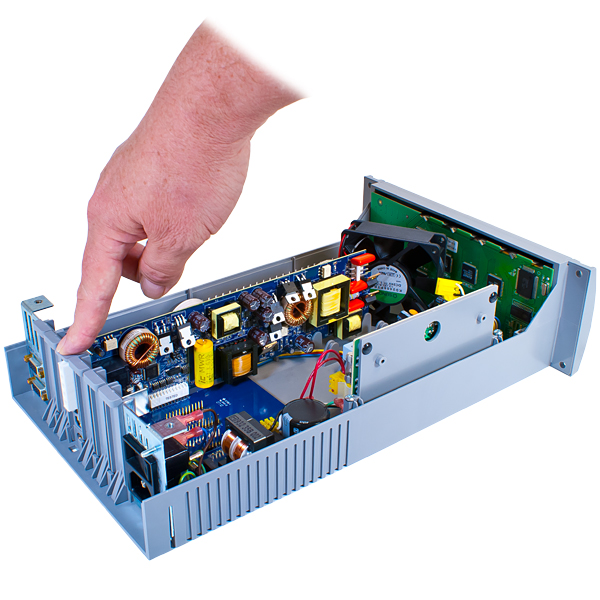

PCB Board/Card Installation:
Procedures for installing add on cards
:
- Slots are numbered left to right as viewed
from
the front of the XGS-600
controller.
- Option slots 1-4 are long high profile slots and can accomodate any card/board. HFIG boards are long high profile cards and can only be installed in slots 1-4
- Option slots 5-6 are short, low profile slots and can accomodate only convection or IMG Boards with the following restrictions.
An IMG Board may not be installed in slot 5 if any other board is installed in slot 4.
An IMG Board may not be installed in slot 6 if any other board is installed in slot 5.
For a full explanation of field installation of add on cards -
see the .pdf's (Replacement Card Instruction Sheet .pdf and the Vacuum Measurement Brochure .pdf page 11) by scrolling down to AVAILABLE DOWNLOADS)
