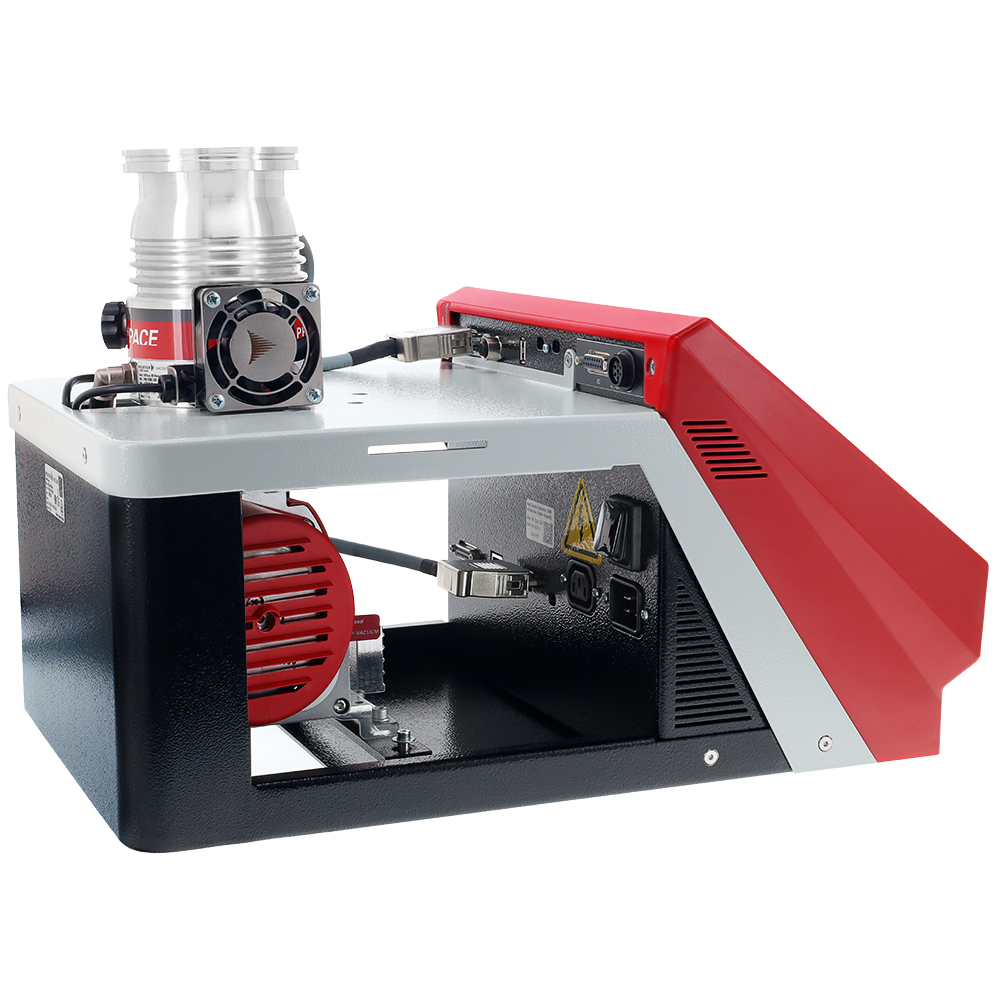

This Pfeiffer HiCube 80 NEO is the complete solution for high vacuum applications. Modular, flexible, compact, versatile and pumping down to 10
-8 Torr. Comes with a HiPace 80 Turbo Pump with fan cooling included and a ISO-63 inlet flange, MVP 030-3 Diaphragm (Backing/Roughing Pump) TPS 110 Power Supply Pack and a DCU 002 (Display and Control Unit). The DCU can also be removed from the metal case and used as a remote control. This System is completely plug and play and easily integrates well with
Pfeiffer Pressure Gauges. For complete documentation on these HiCube Systems look to the left and download the PDF's.
Pfeiffer Vacuum has different part numbers for this product, we have listed these for easy cross reference:
Promo Part Number: PM 027 016-T
Brochure Part Number: PM Q101 013 00
SAP Part Number: 2000198666
Powerful and versatile
With a pumping speed of 80–800 l/s, our HiCube Neo turbo pumping unit offers the performance you need for your high vacuum applications. When using a HiPace H, an ultra-high vacuum of <10-10 hPa can be achieved. The availability of different backing pumps, such as diaphragm, rotary vane, scroll and multi-stage Roots pumps, makes it extremely versatile. With desktop and standalone versions and configurability for any application, we offer maximum flexibility.
Intuitive control and analysis
The HiCube Neo is ready for immediate use thanks to its plugand-play operation. It is controlled intuitively via the 7" color touch screen control panel. Convenient monitoring and remote control via the web server are also possible, while the recording of measurement data via OPC UA, enables detailed analysis for optimum process control. Combine the HiCube Neo with our comprehensive portfolio of measuring devices and other accessories to create customized solutions for any high vacuum application.
Reliable and robust
Rely on the proven robustness and reliability of our HiCube Neo, which is designed to work reliably even under demanding conditions. The open design enables easy maintenance and uncomplicated access to the components.
Energy efficient
The energy-efficient stand-by operation of the backing pump not only saves energy, but also reduces your operating costs.
Areas of application
The HiCube Neo turbopumping unit is the ideal partner for a wide range of applications in industry and research & development when it comes to generating high vacuum or pumping out small volumes.
Typical fields of application are:
Gas analysis
Calibration of measuring tubes
Laboratory applications
Residual gas analysis
Cryogenics
Experience the future of vacuum technology with our new turbopumping station – innovative, powerful and tailored to your requirements.
