Home > Modular Vacuum Chambers > Plates, Frames, and Parts > Ideal Vacuum Cube Hardware and Accessories > Bolt Kit for Ideal Vacuum Cube Plates with CF 6.0" Conflat Port, Sixteen Silver-Plated, 12-Point Bolts With Washers, 5/16-24 x 1.0".

Condition:

New

Part Number:

P1012251

Warranty:

Against Product Defect

Available Now: 310

RoHS Compliance Sticker

$88.34

Print Version

Bolt Kit for Ideal Vacuum Cube Plates with CF 6.0" Conflat Port, Sixteen Silver-Plated, 12-Point Bolts With Washers, 5/16-24 x 1.0".

Bolt Kit for Ideal Vacuum Cube Plates with CF 6.0" Conflat Port, Sixteen Silver-Plated, 12-Point Bolts With Washers, 5/16-24 x 1.0".

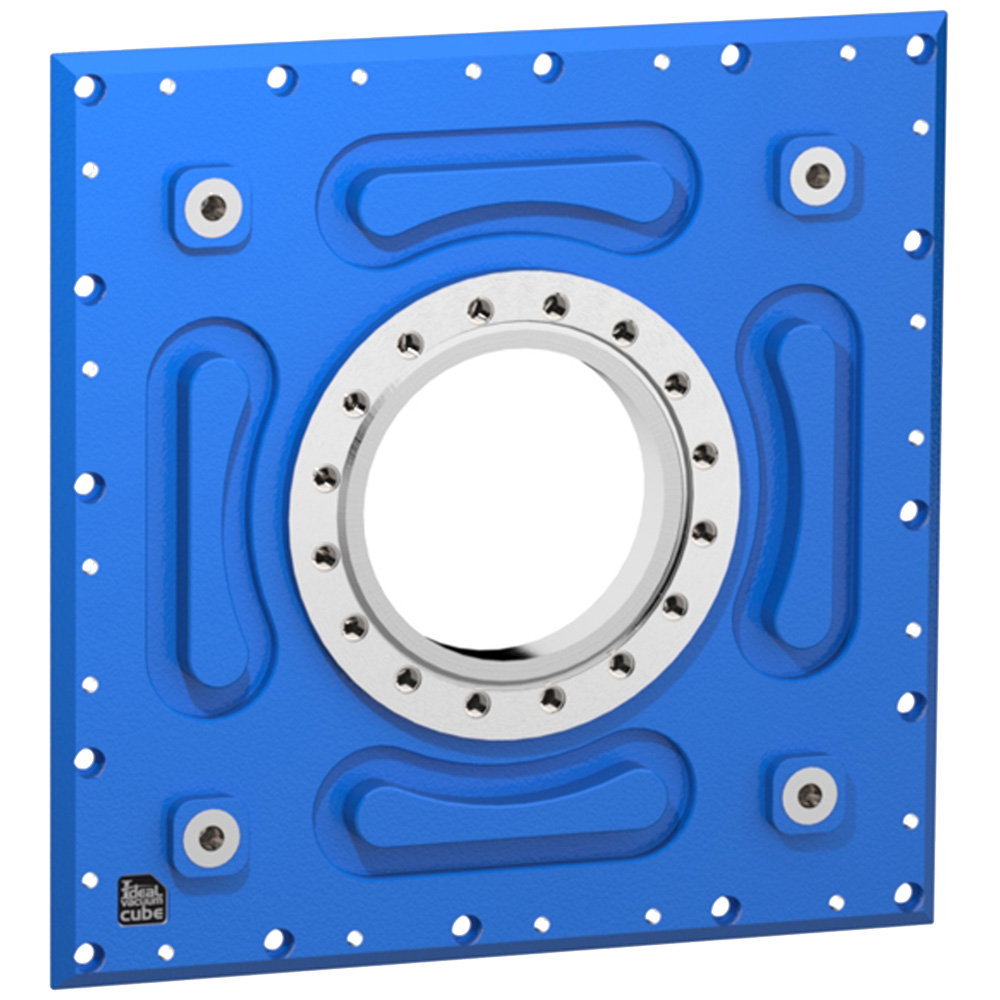

This hardware kit is specifically for Ideal Vacuum Cube plates that have a Conflat 6.0" port with tapped bolt threads. The kit consists of sixteen (16) silver-plated, 12-point bolts, 5/16-24 x 1.0", and sixteen (16) stainless steel washers. The 1.0" screws are slightly shorter than the bolts typically used to connect two CF flanges together. The silver-plating on the bolts keeps them from galling and makes them easily removed and replaced when changing vacuum plumbing configurations.

This kit consists of:

16 ea. silver-plated, 12 point, 5/16-24 x 1.0" bolts
16 ea. 304 stainless steel washers

Press ESC to Close

Availability Of Kit Components Kit: P1012251 - Bolt Kit for Ideal Vacuum Cube Plates with CF 6.0" Conflat Port, Sixteen Silver-Plated, 12-Point Bolts With Washers, 5/16-24 x 1.0".
Component	Desc.	Req'd	Avail
Non-Standard	No Component Description Available On Website	16	5464
Non-Standard	No Component Description Available On Website	16	4969

RoHS Compliance Download

IVP Cube Brochure 2019 v2 LG.pdf

IVP Cube 6x6x6 User Manual.pdf

IVP Cube Plate Installation Manual.pdf

Ideal Vacuum Company Overview Brochure.pdf
