Edwards T-Station Turbo Pumping Station 85, XDD1 Diaphragm and nEXT85D Turbo, CF63 CF4.5 in. Inlet (110VAC) TS85D3002

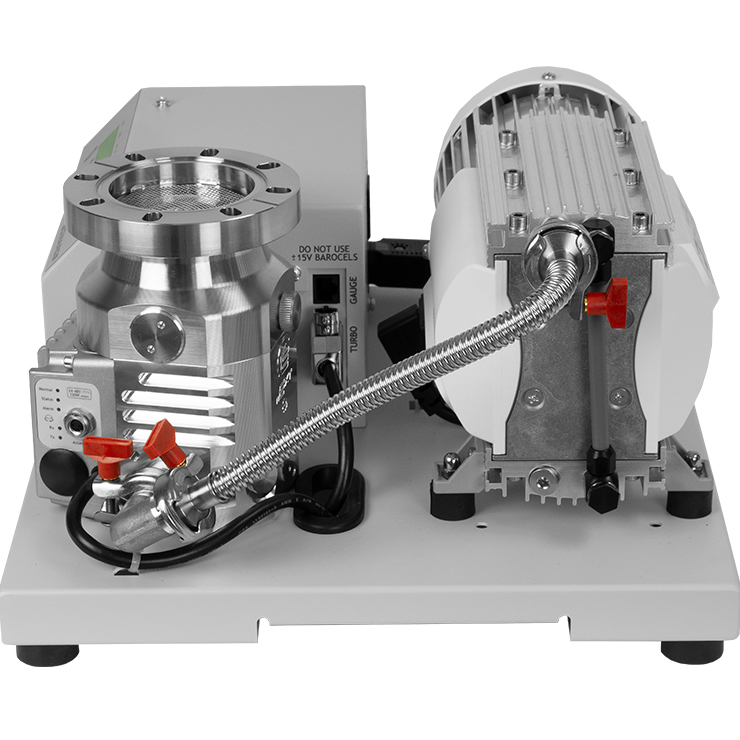

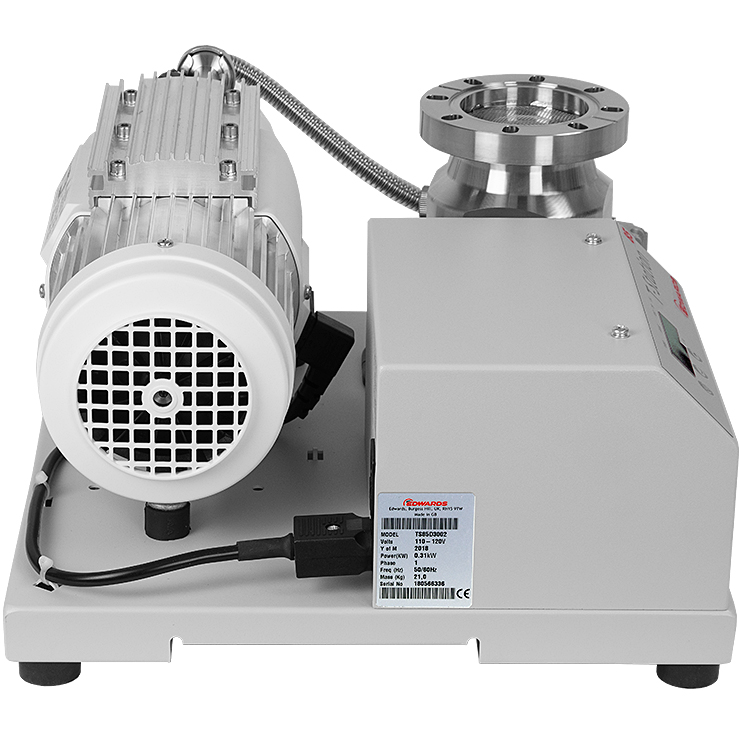

The T-Station 85 is Edwards new entry level turbopumping system. It combines the Edwards nEXT85D turbomolecular pump, with a simple controller and the XDD1 diaphragm roughing pump with a CF63 (CF 4.5in) inlet. The T-Station 85 is supplied fully assembled and ready to go for quick and easy operation.

T-Station 85 is a low cost, compact turbomolecular pumping station that seamlessly combines the nEXT85D turbomolecular pump with a dry diaphragm backing pump, and a simple controller, providing pumping speeds of 47 to 84 ls-1 (depending on inlet). The T-Station 85 comes with an integrated Turbo and Active Gauge controller which enables single button start/stop of the system. This is combined with the ability to control one of our active gauges*, vent valve* control and delayed start of the turbomolecular pump to either time or pressure if a gauge is fitted. This making the T-Station 85 ideal for general laboratory needs.

*Active Gauges and TAV5 vent valve are optional accessories that are sold separately.

GENERAL LAB AND R&D APPLICATIONS INCLUDING:

High Energy Physics and Research Centers
• The T-Station can be used in any lab where there is a need to create high vacuum quickly and easily
• The addition of the single active gauge controller makes it possible to monitor the process

Spectroscopy
• The T-Station is an ideal platform for people building their own mass spectrometers or leak detectors providing a ready made high vacuum system

Many others
• Maintaining individual chambers at the correct vacuum level during system maintenance or repair
• Surface analysis
• Small coating systems
• Tube manufacturing
• Plus many more…
