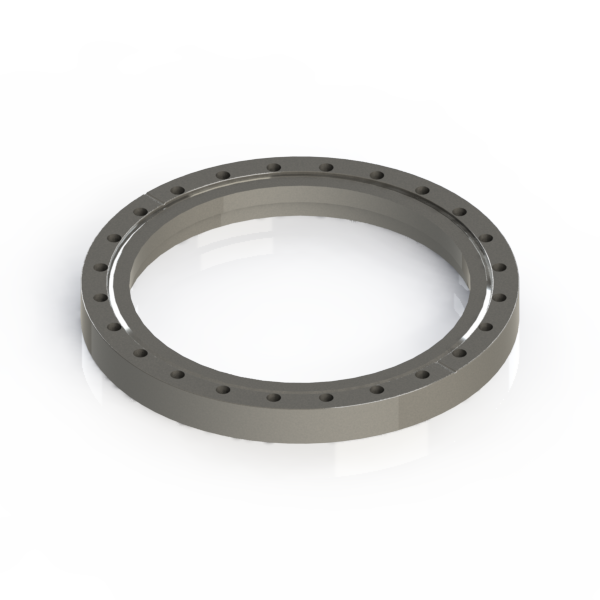

Bored Conflat Flange, 10 inch, Bored 8.0 in., Through Holes, Non-Rotatable, 10 inches CF-F, Stainless Steel
These are Bored Conflat Flange, 10 inch, Bored 8.0 in., 24 Through Holes, Non-Rotatable, 10 inches CF-F, Stainless Steel. ConFlat (CF) flanges are used for ultra-high vacuum applications. These fittings use a copper gasket and knife-edge flanges to achieve the high vacuum seal and can operate down to 10-13 torr (10-11 Pa) and can be heated to 450 °C for bake-out. North American flange sizes are given by flange outer diameter in inches: 1-1/3 ("mini conflat"), 2¾, 4½, 6, 8, 10, 12, 13¼, 14 and 16½. In Europe and Asia, sizes are given by tube inner diameter in millimeters: DN16, DN40, DN63, DN100, DN160, DN200, DN250. These vacuum fittings are made of corrosive resistant stainless steel. Sold as ONE EACH.
Conflat Flange (CF) Bored Through Holes 10 inch, Non-Rotatable, CF 10 inches, Stainless Steel
CF Flange Size: 24 bolt Holes, 8 inch bored through, CF 10 inch, 10.00 inch
Common Dimensions: Flange Size OD = 10", Tube 8.00" A=10" (254mm), B=8"(204mm), C=7 7/8"(200mm), D=1.00"(25mm),
E=9 1/8"(232mm), 24 bolt holes.
