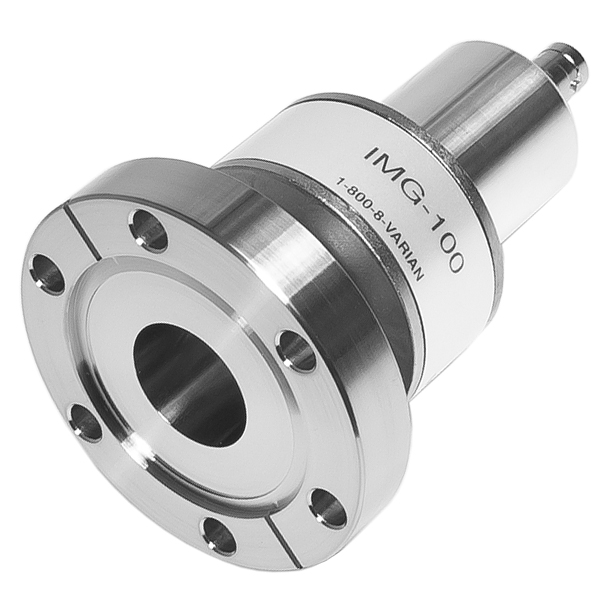

Agilent Varian IMG-100 Inverted Magnetron High-Vacuum Gauge, 2.75 in. CFF Conflat Flange


Agilent Varian IMG-100 Inverted Magnetron High-Vacuum Gauge, 2.75 in. CFF Conflat Flange
Pressure Range: 1 × 10-3 Torr to 5 × 10-9 Torr.


This is a Agilent Varian IMG-100 Inverted Magnetron High-Vacuum Gauge, 2.75 in. CFF Conflat Flange, Pressure Range: 1 × 10-3 Torr to 5 × 10-9 Torr. Maximum Bakeout Temperature: 150 °C (with cable disconnected), Materials Exposed to Vacuum: Stainless Steel, Nickel, Nickel Alloy 52, Glass. The IMG-100 is a rugged and accurate high vacuum gauge featuring a wide measurement range, fast starting time, good accuracy and superior repeatability in challenging environments. The IMG-100 is ideal for use in industrial applications such as metal deposition, glass coaters, vacuum furnaces, degassing ovens, and electron-beam welders. The simple design requires no heated filament, so the IMG- 100 has an excellent lifetime, is easily serviced, and is tolerant of sudden or frequent exposure to atmosphere.

Further, there is less risk of heat from the gauge interfering with a critical experiment or process. The compact size allows flexible installation in any orientation, while the locking SHV highvoltage connector ensures safety and positive electrical contact. A precisely designed magnetic field constrains ionized gas molecules for accurate pressure measurement, so emission of stray electrons and photons is minimized. The IMG-100 is easily interfaced with Varian's XGS-600 gauge controller for integration into a variety of vacuum systems, or for use as a stand-alone pressure measurement tool. This is the Agilent Varian IMG-100, 2.75 in. CFF Conflat Flange, gauge only, signal cable and controller sold separately on this website. For complete operating instructions scroll down to (AVAILABLE DOWNLOADS:) and download the Instruction Manual, Spec Sheet and other pertinent information Pdf's. Agilent Varian Part Number R0310303.

Can be used with the following controllers:

  • Varian Multi-Gauge Controller
  • Varian Senn Torr Gauge Controller
  • Varian XGS 600 Gauge Controller




Press ESC to Close


Agilent XGS-600 pressure gauge controller
PDF Logo Agilent IMG-100 Inverted Magnetron Gauge Data Sheet.pdf

PDF Logo Agilent IMG-100 Inverted Magnetron Gauge Instruction Manual.pdf

PDF Logo Agilent XGS-600 Gauge Controller Brochure.pdf

PDF Logo Aglient XGS-600 Gauge Controller Instruction Manual.pdf

PDF Logo Agilent IMG-100 Gauge Tube Cleaning and Rebuild.pdf
