MKS HPS 971 UniMag Transducer NW25 RS232, KF 25, 10-3 to 10-8 Torr


MKS HPS 971 UniMag Transducer NW25, RS232, KF 25, 10-3 to 10-8 Torr SubD male no relay, PN 971B-21030

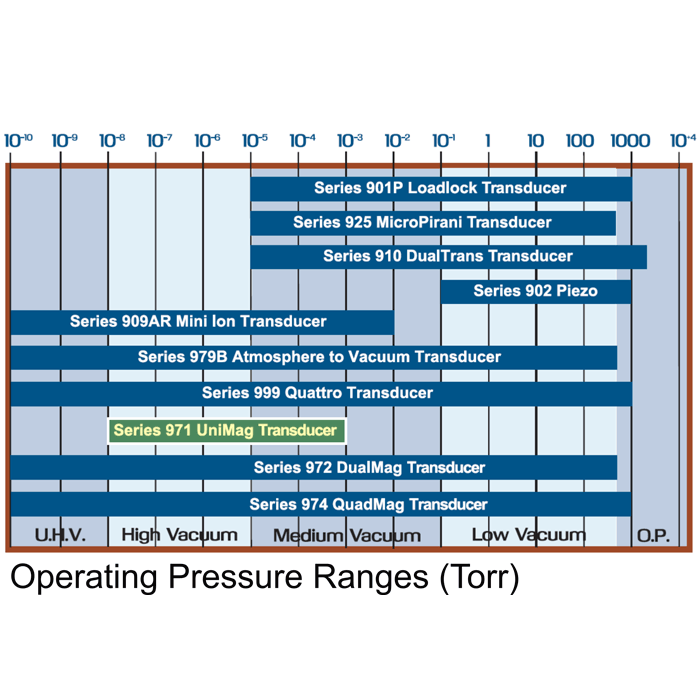

The 971 UniMag transducer offers a measurement range from 1x10-8Torr to 5x10-3Torr and is based on cold cathode inverted magnetron sensor technology. The 971 is a cost effective solution for base pressure measurement and control. The Series 971 UniMag has RS232 or RS485 digital communication interface for setup of transducer parameters and to provide real time pressure measurement. The 971 UniMag transducers also has an analog pressure output of 0.5VDC/decade that can be interfaced to external analog equipment for pressure readout or control. Other analog outputs and curves can be selected via the digital user interface.The Series 971 UniMag has up to three mechanical relays which can be used for process control, examples are interlocking valves or pumps. The 971 UniMag Transducer has a user changeable cold cathode anode module that offers easy serviceability without disassembling of transducer electronics. Customers requiring both a power supply and display can use the 971 UniMag with the PDR900 Series Controller sold on this website. For complete specs and operation information See AVAILABLE DOWNLOADS below.


  • Specifications and prices are subject to change without notice. HPS® and MicroPirani™ are a Registered Trademarks MKS Instruments, Inc.



    Options, (PN) Part Number and Pricing : NEW MKS HPS® Series 971 UniMagTransducer


    NW25 KF, RS-232, SUBD 15pinHD male-no relay
    PN 971-21020, 2009 Price $710
    2 3/4" CF, RS-232, SUBD 15pinHD male-no relay
    PN 971-71020, 2009 Price $815
    NW40 KF, RS-232, SUBD 15pinHD male-no relay
    PN 971-91020, 2009 Price $755
    NW25 KF, RS-485, SUBD 15pinHD male-no relay
    PN 971-22020, 2009 Price $745
    2 3/4" CF, RS-485, SUBD 15pinHD male-no relay
    PN 971-72020, 2009 Price $815
    NW40 KF, RS-485, SUBD 15pinHD male-no relay
    PN 971-92020, 2009 Price $755
    NW25 KF, RS-232, SUBD 15pinHD male-3 relays
    PN 971-21030, 2009 Price $785
    2 3/4" CF, RS-232, SUBD 15pinHD male-3 relays
    PN 971-71030, 2009 Price $855
    NW40 KF, RS-232, SUBD 15pinHD male-3 relays
    PN 971-91030, 2009 Price $795
    NW25 KF, RS-485, SUBD 15pinHD male-3 relays
    PN 971-22030, 2009 Price $795
    2 3/4" CF, RS-485, SUBD 15pinHD male-3 relays
    PN 971-72030, 2009 Price $855
    NW40 KF, RS-485, SUBD 15pinHD male-3 relays
    PN 971-92030, 2009 Price $895

  • All Prices subject to change without notice.


    Press ESC to Close


    PDF Logo MKS 971 HPS UniMag Vacuum Pressure Transducer Operation and Instruction Manual.pdf

    PDF Logo MKS 971, 972, 974 HPS UniMag Transducer Pin Out.pdf

    PDF Logo MKS 900 Selection Guide - HPS Vacuum Transducers Data Sheet.pdf
