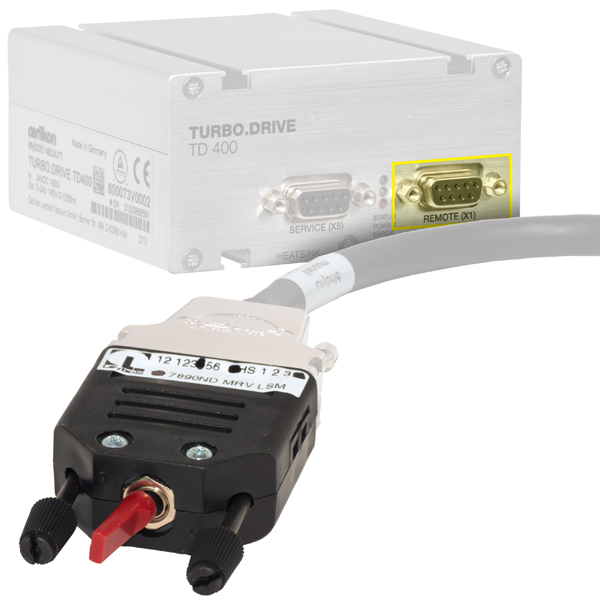

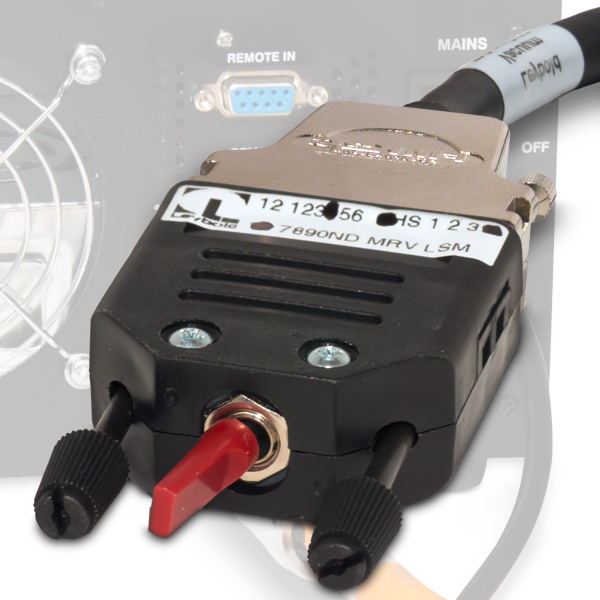

Leybold Remote Start/Stop Switch for Turbo.Drive 400 and Turbo.Controller 300. PN: 15248

These Leybold start/stop switches can be used to remotely turn the turbo pump on and off. When the Turbo.Controller 300 is in remote mode (remote switch is located on the back of the controller) the start/start switch is needed to start the turbo. The switch can be mounted at a distance, for example, in your control panel, by using a straight through RS-232 extension cable. The TURBO.DRIVE 400 requires a supply voltage of 24 V DC. It is equipped with interfaces for programmable controls (Remote Switch PID: P105455).

This new generation of SL TURBOVAC turbomolecular pumps have improved mechanical rotor suspension and compound stage excels through a new compact design, improved vacuum performance and a standardized accessories program. The SL series pumps are among the quietest turbo pumps on the market today, the SL 80 pumps have less than 46 dB(A). The Leybold SL-80 with ISO-63 inlet flange has a 65 l/s pumping speed for nitrogen, can have an ultimate pressure as low as 1.5x10-10 Torr when backed with oil sealed rotary vane pump, and has a KF-16 roughing flange.

The Leybold TURBOVAC SL turbomolecular pumps are highly flexible regarding the controller-mounting position, which can be placed onboard, as a bench-top unit or in a rack. In addition, the pumps can be mounted in virtually any position and at any angle. The turbomolecular pumps from the TURBOVAC SL product family are designed to handle the most advanced and demanding applications and requirements in research and industry and many more applications.
